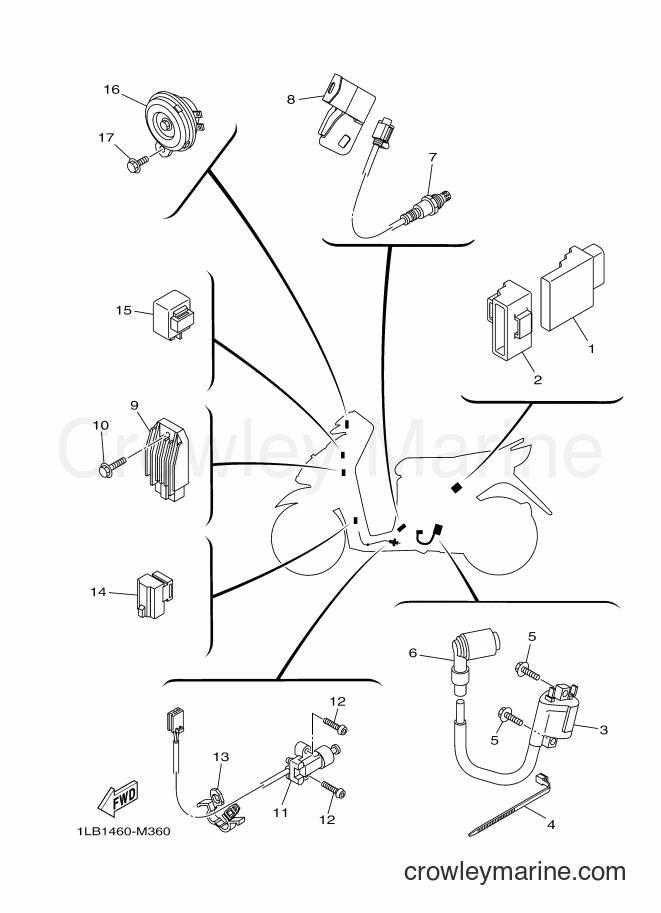

2014 Scooter AL125FC - AL125FC (1LBC) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125FC (1LBC) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
Clamp
4
Yamaha Motors
Clamp90464-15195-00
Required: 1
CLAMP
Supersedes: 90464-13073-00
Cross Ship
Leaves in 2-5 days
$4.41
$3.75
You save $0.66
More details
Hexagon Bolt
5
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT, HEXAGON
Supersedes: 97022-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
6
Required: 1
PLUG CAP ASSY
Price unavailable
7
Required: 1
SENSOR, OXYGEN
Price unavailable
8
Required: 1
COVER
Price unavailable
9
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06020-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
11
Required: 1
SWITCH, SIDE STAND
Price unavailable
BOLT
12
Yamaha Motors
BOLT90111-05810-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
Clamp
13
Yamaha Motors
Clamp90464-07805-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
14
Required: 1
RELAY ASSY (3D9-00)
Price unavailable
15
Required: 1
FLASHER RELAY ASSY
Price unavailable
16
Required: 1
HORN
Price unavailable
Flange Bolt
17
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
