2013 Scooter XC115S - XC115S (1DR3) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

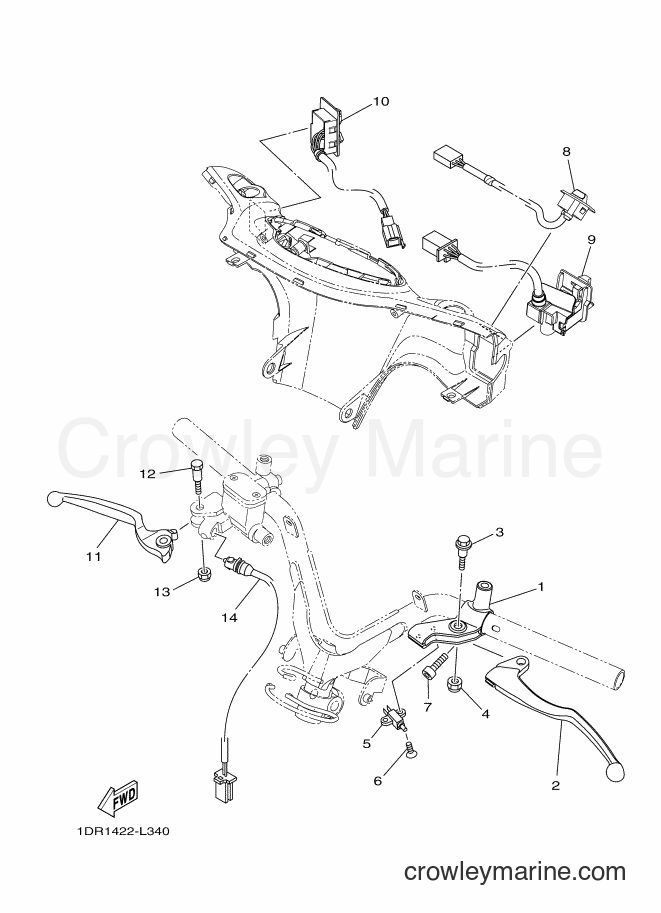

Yamaha Motors XC115S (1DR3) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
HOLDER, LEVER 1
Price unavailable
2
Required: 1
LEVER 1
Price unavailable
BOLT
3
Yamaha Motors
BOLT90109-06798-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
NUT
4
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
5
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Flat Screw
6
Yamaha Motors
Flat Screw98707-03008-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 98702-03008-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
91311-06020-00
7
Yamaha Motors
91311-06020-0091312-06020-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
8
Required: 1
SWITCH, HANDLE 1
Price unavailable
9
Required: 1
SWITCH, HANDLE 2
Price unavailable
10
Required: 1
SWITCH, HANDLE 2
Price unavailable
11
Required: 1
LEVER 2
Price unavailable
BOLT
12
Yamaha Motors
BOLT90109-06255-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
NUT
13
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
14
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
