2013 Scooter T115FSE - T115FSE (1PB2) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

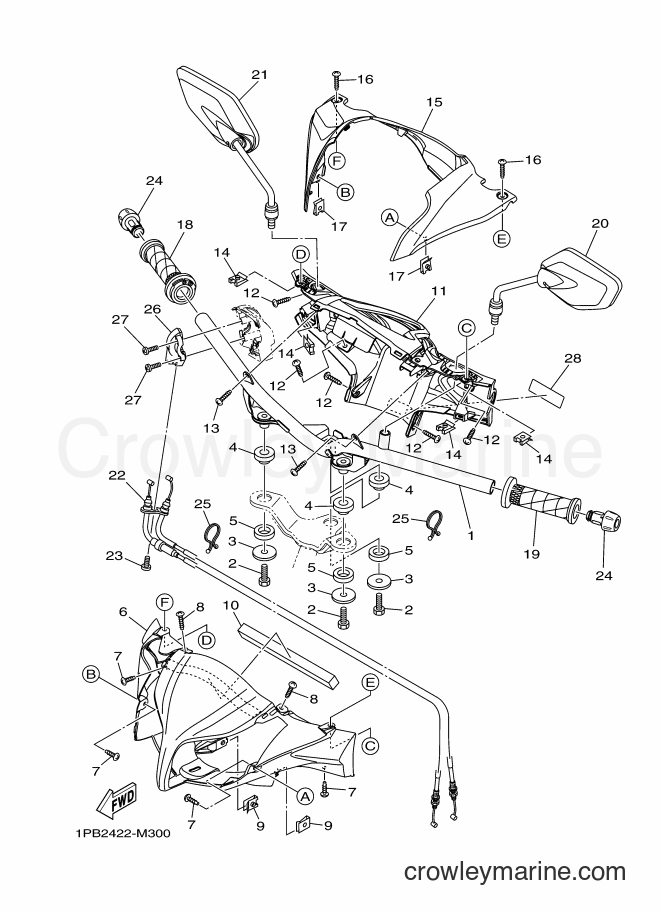

Yamaha Motors T115FSE (1PB2) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
97011-08016-00
2
Yamaha Motors
97011-08016-0097022-08016-00
Required: 3
BOLT
Supersedes: 97002-08016-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
3
Required: 3
WASHER, PLATE
Price unavailable
4
Required: 3
DAMPER 1
Price unavailable
5
Required: 3
DAMPER 2
Price unavailable
6
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
6
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
Truss Screw
7
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
9
Required: 2
NUT, SPRING
Price unavailable
10
Required: 1
DAMPER, PLATE
Price unavailable
11
Required: 1
COVER, HAND UPPER 2
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 5
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
14
Required: 4
NUT, SPRING
Price unavailable
15
Required: 1
CAP, HANDLEBAR COVER
Price unavailable
15
Required: 1
CAP, HANDLEBAR COVER
Price unavailable
17
Required: 2
NUT, SPRING
Price unavailable
18
Required: 1
GRIP ASSY
Price unavailable
19
Required: 1
GRIP
Price unavailable
20
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
21
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
22
Required: 1
THROTTLE CABLE ASSY
Price unavailable
Button head bolt
23
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
24
Required: 2
END, GRIP
Price unavailable
Clamp
25
Yamaha Motors
Clamp90464-23811-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
26
Required: 1
CAP, GRIP UNDER
Price unavailable
28
Required: 1
LABEL, NOTICE 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
