All diagrams for this model

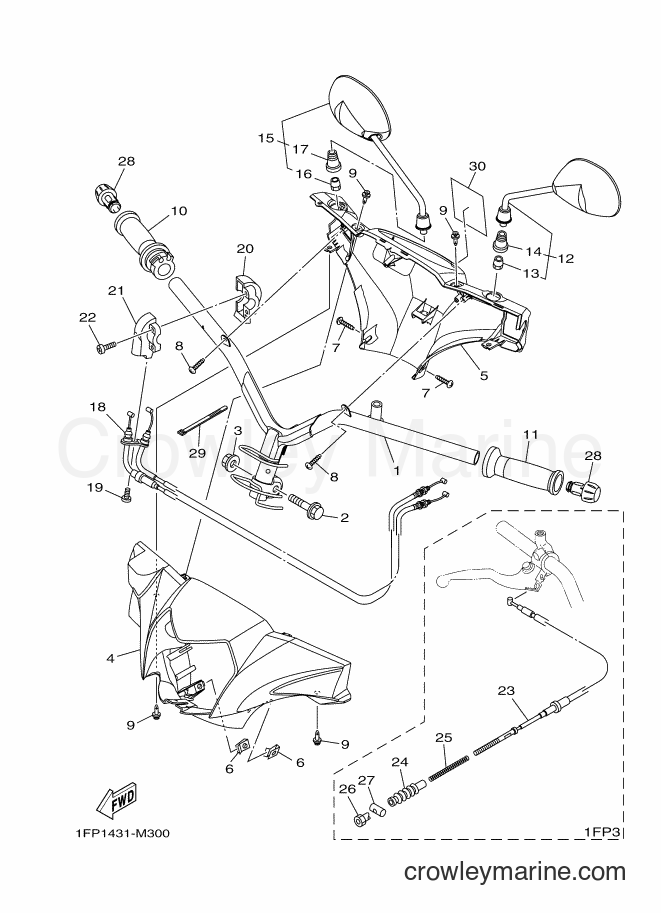

2013 Scooter T115FL - T115FL (1FP3) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FL (1FP3) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt90105-10864-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
COVER,HANDLE 1 (0996,DPBMU)
Price unavailable
4
Required: 1
COVER,HANDLE 1 (1201,VPBC6)
Price unavailable
4
Required: 1
COVER,HANDLE 1 (0752,LYNM9)
Price unavailable
4
Required: 1
COVER,HANDLE 1 (1121,SMY)
Price unavailable
4
Required: 1
COVER,HANDLE 1 (1121,SMY)
Price unavailable
4
Required: 1
COVER,HANDLE 1 (0918,DRMK)
Price unavailable
5
Required: 1
COVER,HANDLE 2 (0713,NYS1)
Price unavailable
5
Required: 1
COVER,HANDLE 2 (00E9,CMR)
Price unavailable
5
Required: 1
COVER,HANDLE 2 (00E9,CMR)
Price unavailable
5
Required: 1
COVER,HANDLE 2 (0033,YB)
Price unavailable
6
Required: 2
NUT, SPRING
Price unavailable
Truss Screw
7
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Tapping Screw
8
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
RIVET
9
Yamaha Motors
RIVET90269-06812-00
Required: 4
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
10
Required: 1
GRIP ASSY
Price unavailable
11
Required: 1
GRIP
Price unavailable
12
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
13
Required: 1
. NUT, AJUSTING
Price unavailable
14
Required: 1
. BOOT 1
Price unavailable
15
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
16
Required: 1
. NUT, AJUSTING
Price unavailable
17
Required: 1
. BOOT 1
Price unavailable
18
Required: 1
THROTTLE CABLE ASSY
Price unavailable
Button head bolt
19
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
20
Required: 1
CAP, GRIP UPPER
Price unavailable
21
Required: 1
CAP, GRIP UNDER
Price unavailable
Pan Head Screw
22
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
WIRE, BRAKE 1
Price unavailable
24
Required: 1
BOOT, CABLE
Price unavailable
Compression Spring
25
Yamaha Motors
Compression Spring90501-10073-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
26
Required: 1
NUT
Price unavailable
28
Required: 2
END, GRIP
Price unavailable
Clamp
29
Yamaha Motors
Clamp90465-12356-00
Required: 1
CLAMP
Supersedes: 90464-36800-00
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
30
Required: 1
LABEL, WARNING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
