2013 Scooter T110C - T110C (40B6) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

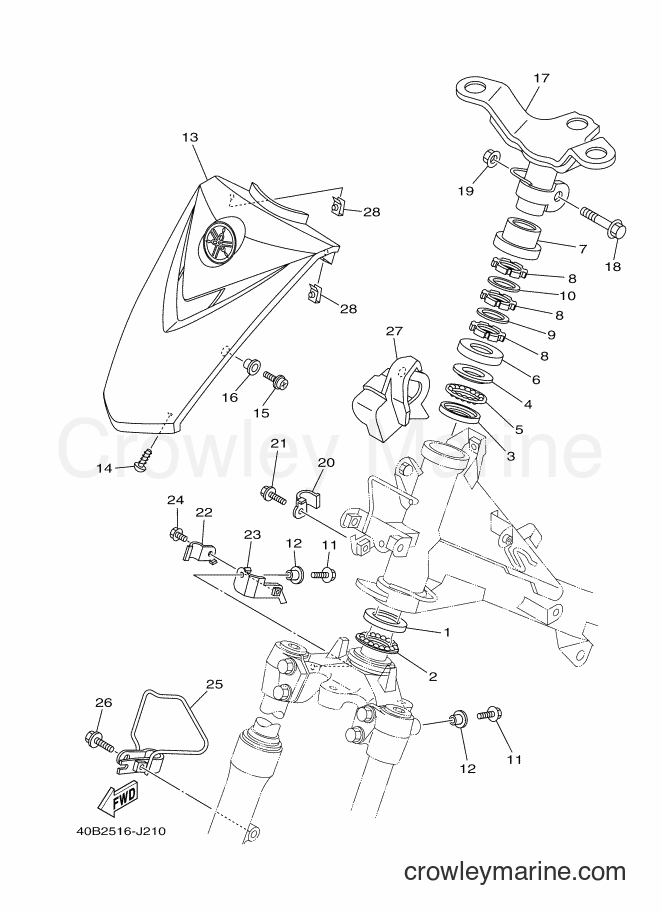

Yamaha Motors T110C (40B6) [010] - STEERING
Change View:
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
RETAINER, BALL BEARING
Price unavailable
3
Required: 1
RACE, BALL 2
Price unavailable
4
Required: 1
RACE, BALL 1
Price unavailable
5
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Required: 1
COVER, BALL RACE 2
Price unavailable
7
Required: 1
COVER, BALL RACE 1
Price unavailable
8
Required: 3
NUT
Price unavailable
9
Required: 1
WASHER, PLATE
Price unavailable
10
Required: 1
WASHER, SPECIAL
Price unavailable
Flange Bolt
11
Yamaha Motors
Flange Bolt95022-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
COLLAR
12
Yamaha Motors
COLLAR90387-06857-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
13
Required: 1
PANEL, FRONT
Price unavailable
Truss Screw
14
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
15
Required: 2
SCREW, WITH WASHER
Price unavailable
COLLAR
16
Yamaha Motors
COLLAR90387-062M9-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
17
Required: 1
BRACKET, HANDLE
Price unavailable
Washer Based Bolt
18
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self Locking Nut
19
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
20
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
Flange Bolt
21
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
22
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
23
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
Flange Bolt
24
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
25
Required: 1
GUIDE, CABLE
Price unavailable
Flange Bolt
26
Yamaha Motors
Flange Bolt95022-06025-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
27
Required: 1
PROTECTOR
Price unavailable
28
Required: 2
NUT, SPRING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
