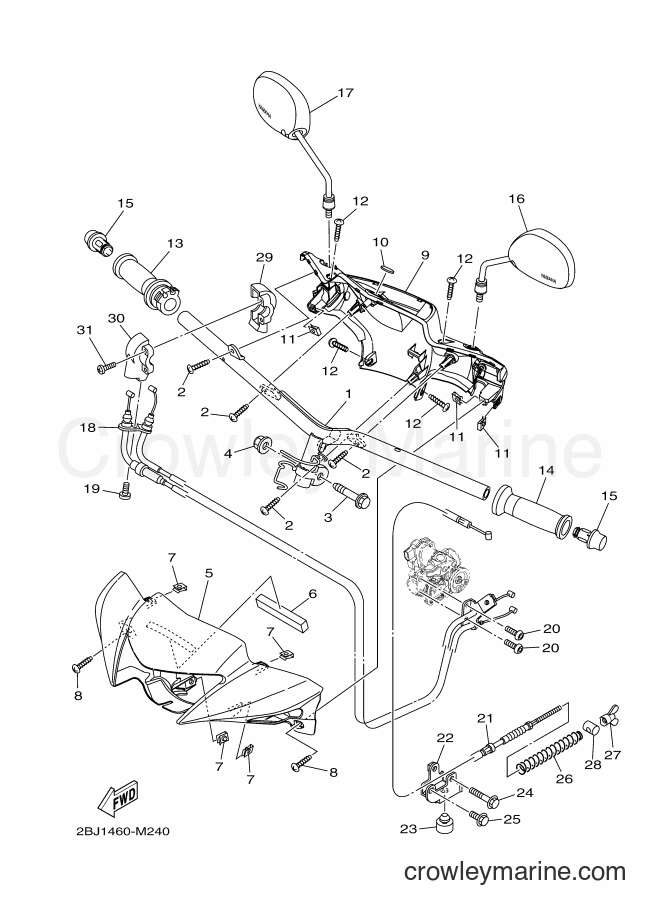

2013 Scooter AL115FGC - AL115FGC (2BJA) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AL115FGC (2BJA) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/ALerZeiu.png)
1
Required: 1
HANDLE COMP.
Price unavailable
2
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
3
Required: 1
BOLT, FLANGE
Price unavailable
4
Yamaha Motors
SELF-LOCKING NUT90185-10011-00
Required: 1
NUT, SELF-LOCKING
$4.21
You save $0.74
5
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
6
Required: 1
DAMPER, PLATE
Price unavailable
7
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
10
Required: 1
EMBLEM
Price unavailable
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
12
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
13
Required: 1
GRIP ASSY
Price unavailable
14
Required: 1
GRIP
Price unavailable
15
Required: 2
END, GRIP
Price unavailable
16
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
18
Required: 1
THROTTLE CABLE ASSY
Price unavailable
18
Required: 1
THROTTLE CABLE ASSY
Price unavailable
19
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
$8.07
You save $1.42
20
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
$8.07
You save $1.42
21
Required: 1
CABLE, BRAKE
Price unavailable
21
Required: 1
CABLE, BRAKE
Price unavailable
22
Required: 1
HOLDER, WIRE
Price unavailable
23
Required: 1
STOPPER, MAIN STAND
Price unavailable
$3.15
You save $0.56
$2.89
You save $0.51
26
Required: 1
SPRING, COMPRESSION
Price unavailable
In stock
Only 1 remaining
$4.67
You save $0.82
In stock
Only 4 remaining
$8.07
You save $1.42
29
Required: 1
CAP, GRIP UPPER
Price unavailable
30
Required: 1
CAP, GRIP UNDER
Price unavailable
31
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
