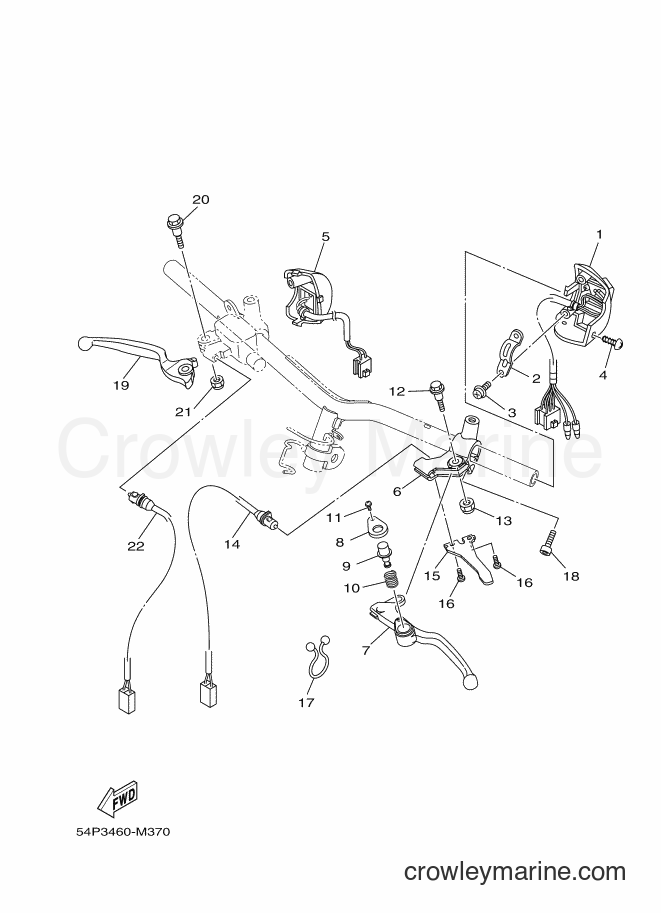

2013 Scooter AL115FC - AL115FC (54P5) [010] HANDLE SWITCH & LEVER diagram
![Yamaha Motors AL115FC (54P5) [010] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/OFRYuJDc.png)
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Required: 1
BRACKET 1
Price unavailable
3
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
4
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
5
Required: 1
SWITCH, HANDLE 1
Price unavailable
6
Required: 1
HOLDER, LEVER 1
Price unavailable
7
Required: 1
LEVER 1
Price unavailable
8
Required: 1
COVER
Price unavailable
9
Required: 1
PIN, LOCK 1
Price unavailable
10
Required: 1
SPRING
Price unavailable
11
Required: 1
SCREW, LEVER FITTING
Price unavailable
$8.07
You save $1.42
13
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
$2.46
You save $0.44
14
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
15
Required: 1
DAMPER, STOPPER
Price unavailable
16
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
$0.98
You save $0.17
$1.78
You save $0.32
19
Required: 1
LEVER 2
Price unavailable
$2.17
You save $0.38
21
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
$2.46
You save $0.44
22
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
