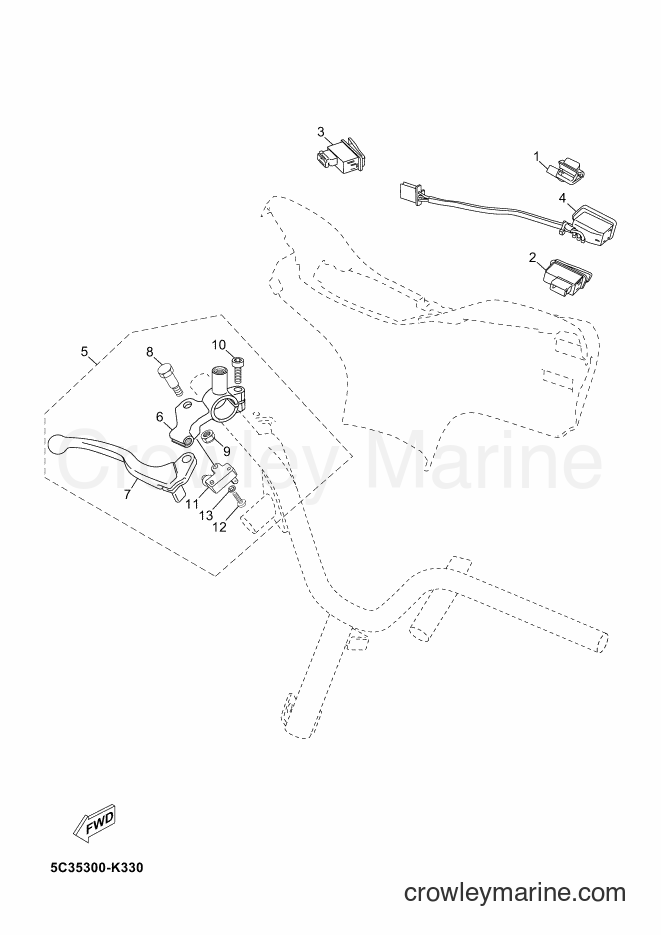

2012 Scooter YN50FU - YN50FU (5C3B) [020] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50FU (5C3B) [020] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
BEAM SWITCH ASSY
Price unavailable
2
Required: 1
SWITCH
Price unavailable
3
Required: 1
STARTER SWITCH ASSY
Price unavailable
4
Required: 1
SWITCH, HANDLE 1
Price unavailable
5
Required: 1
LEVER HOLDER ASSY (LEFT)
Price unavailable
6
Required: 1
. HOLDER, LEVER 2
Price unavailable
7
Required: 1
. LEVER 2
Price unavailable
8
Required: 1
. BOLT
Price unavailable
NUT
9
Yamaha Motors
NUT95617-06100-00
Required: 1
. NUT, SELF-LOCKING
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06025-00
Required: 1
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
Switch
11
Yamaha Motors
Switch36Y-82917-00-00
Required: 1
. STOP SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98580-04014-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98502-04014-00
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
