All diagrams for this model

2012 Scooter XC115S - XC115S (52B4) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

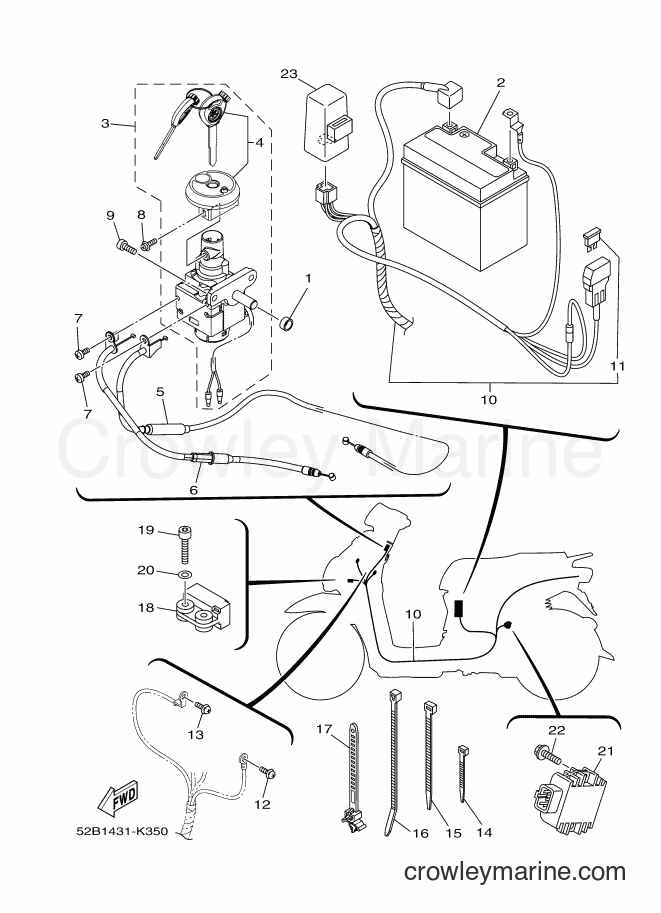

Yamaha Motors XC115S (52B4) [010] - ELECTRICAL 1
Change View:
1
Required: 1
SEAL 1
Price unavailable
2
Required: 1
BATTERY ASSY (YUASA YTZ6V)
Price unavailable
3
Required: 1
MAIN SW. STRG. LOCK SUB ASSY
Price unavailable
4
Required: 1
SHUTTER ASSY.
Price unavailable
5
Required: 1
CABLE, SEAT LOCK
Price unavailable
6
Required: 1
WIRE, PULL
Price unavailable
7
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
8
Required: 1
SCREW, PAN HEAD WITH WASHER
Price unavailable
BOLT
9
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
. FUSE (15A) BLUE
Price unavailable
PAN HEAD SCREW
12
Yamaha Motors
PAN HEAD SCREW97607-04210-00
Required: 1
SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Clamp
14
Yamaha Motors
Clamp90465-12356-00
Required: 2
CLAMP
Supersedes: 90464-36800-00
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
Clamp
15
Yamaha Motors
Clamp90464-50800-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Clamp
16
Yamaha Motors
Clamp90464-70800-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
17
Required: 1
CLAMP
Price unavailable
18
Required: 1
SENSOR, LEAN ANGLE
Price unavailable
BOLT
19
Yamaha Motors
BOLT91317-04025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Plate Washer
20
Yamaha Motors
Plate Washer90201-047A2-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
21
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
23
Required: 1
STARTER RELAY ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
