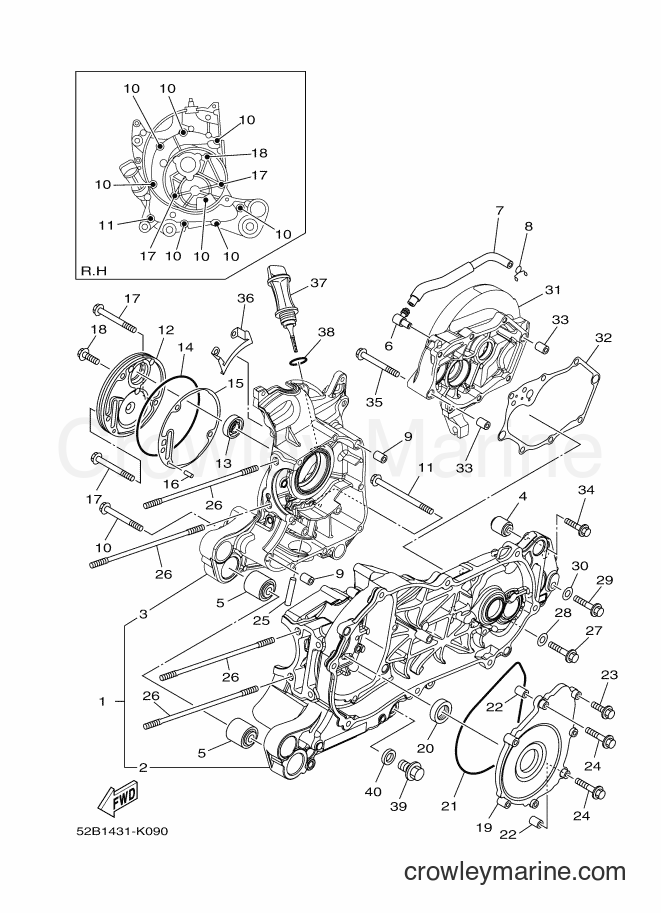

2012 Scooter XC115S - XC115S (1WC2) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1WC2) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
. CRANKCASE 1
Price unavailable
3
Required: 1
. CRANKCASE 2
Price unavailable
4
Required: 1
BUSH, REAR SHOCK ABSORBER
Price unavailable
5
Required: 2
BUSH 1
Price unavailable
6
Required: 1
BREATHER
Price unavailable
7
Required: 1
PIPE, BREATHER
Price unavailable
Clip
8
Yamaha Motors
Clip90467-100A1-00
Required: 1
CLIP
Supersedes: 90467-10008-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Flange Bolt
11
Yamaha Motors
Flange Bolt95022-06100-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
12
Required: 1
COVER, CAP
Price unavailable
13
Required: 1
OIL SEAL
Price unavailable
14
Required: 1
O-RING
Price unavailable
15
Required: 1
GASKET
Price unavailable
16
Required: 1
PIN, DOWEL
Price unavailable
Flange Bolt
17
Yamaha Motors
Flange Bolt95022-06070-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
Flange Bolt
18
Yamaha Motors
Flange Bolt95022-06016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
19
Required: 1
COVER 2
Price unavailable
20
Required: 1
OIL SEAL
Price unavailable
21
Required: 1
O-RING
Price unavailable
Flange Bolt
23
Yamaha Motors
Flange Bolt95022-06025-00
Required: 5
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
Small Bolt Flange
24
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
25
Required: 1
PIPE, OIL 1
Price unavailable
26
Required: 4
BOLT, STUD
Price unavailable
Flange Bolt
27
Yamaha Motors
Flange Bolt95817-06040-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-06040-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Flange Bolt
29
Yamaha Motors
Flange Bolt95811-08016-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-08016-00
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
30
Required: 1
GASKET
Price unavailable
31
Required: 1
COVER, CRANKCASE 2
Price unavailable
32
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
Flange Bolt
34
Yamaha Motors
Flange Bolt95022-06035-00
Required: 6
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
36
Required: 1
PLATE
Price unavailable
37
Required: 1
PLUG, OIL LEVEL
Price unavailable
38
Required: 1
O-RING
Price unavailable
39
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
Gasket
40
Yamaha Motors
Gasket812-11198-00-00
Required: 1
GASKET
Supersedes: 4YS-E1198-00-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
