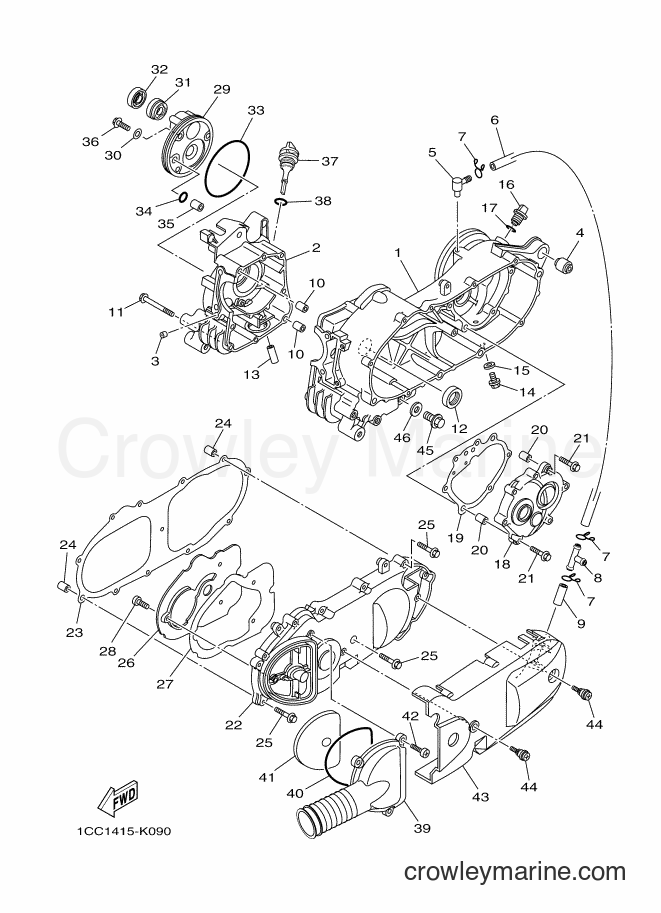

2012 Scooter XC100E - XC100E (1RS1) [010] CRANKCASE diagram
![Yamaha Motors XC100E (1RS1) [010] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/kZFkbZaz.png)
1
Required: 1
CRANKCASE 1
Price unavailable
2
Required: 1
CRANKCASE 2
Price unavailable
3
Required: 1
NOZZLE 1
Price unavailable
4
Required: 1
BUSH, REAR SHOCK ABSORBER
Price unavailable
5
Required: 1
BREATHER
Price unavailable
6
Required: 1
PIPE, BREATHER
Price unavailable
7
Required: 3
CLIP
Price unavailable
8
Required: 1
WAY 3
Price unavailable
9
Required: 1
PIPE, BREATHER 2
Price unavailable
10
Required: 2
PIN, DOWEL
Price unavailable
$2.04
You save $0.36
12
Required: 1
OIL SEAL
Price unavailable
13
Required: 1
PIPE, OIL 1
Price unavailable
14
Yamaha Motors
Flange Bolt95811-08016-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-08016-00
$1.36
You save $0.24
$6.37
You save $1.12
16
Required: 1
PLUG, OIL
Price unavailable
17
Required: 1
O-RING
Price unavailable
18
Required: 1
COVER, CRANKCASE 2
Price unavailable
19
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
20
Required: 2
PIN, DOWEL
Price unavailable
$1.53
You save $0.27
22
Required: 1
COVER, CRANKCASE 1
Price unavailable
23
Required: 1
GASKET, CRANKCASE COVER 1
Price unavailable
24
Required: 2
PIN, DOWEL
Price unavailable
$3.27
You save $0.58
26
Required: 1
PLATE
Price unavailable
27
Required: 1
GASKET 1
Price unavailable
28
Yamaha Motors
Bind Screw98980-06010-00
Required: 3
SCREW, BIND
Supersedes: 98902-06010-00
In stock
Only 1 remaining
$8.92
You save $1.57
29
Required: 1
COVER, CAP
Price unavailable
In stock
Only 4 remaining
$7.31
You save $1.29
31
Required: 1
OIL SEAL
Price unavailable
32
Required: 1
OIL SEAL
Price unavailable
33
Required: 1
O-RING
Price unavailable
34
Required: 1
O-RING
Price unavailable
35
Required: 1
PIN, DOWEL
Price unavailable
$3.32
You save $0.58
37
Required: 1
PLUG, OIL
Price unavailable
38
Required: 1
O-RING
Price unavailable
39
Required: 1
DUCT, AIR
Price unavailable
40
Required: 1
SEAL, AIR DUCT
Price unavailable
41
Required: 1
ELEMENT 1
Price unavailable
42
Yamaha Motors
Bind Screw98980-06020-00
Required: 3
SCREW, BIND
Supersedes: 98902-06020-00
$8.07
You save $1.42
43
Required: 1
COVER, CRANKCASE 3
Price unavailable
44
Required: 2
BOLT 1
Price unavailable
45
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
46
Yamaha Motors
Plate Washer90201-12172-00
Required: 1
WASHER, PLATE
$2.93
You save $0.52
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
