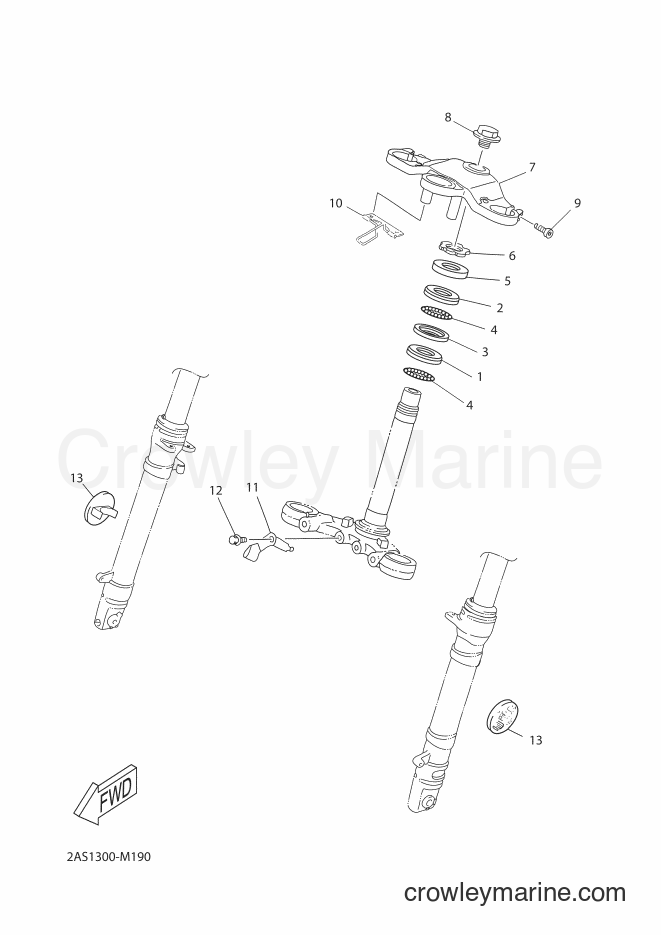

2012 Scooter TZR50 - TZR50 (2AS1) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (2AS1) [010] - STEERING
Change View:
Ball Race
1
Yamaha Motors
Ball RaceB6E-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 156-23412-00-00
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
BALL RACE
2
Yamaha Motors
BALL RACE4FP-F3411-20-00
Required: 1
RACE, BALL 1
Supersedes: 183-23411-00-00
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
BALL RACE
3
Yamaha Motors
BALL RACE4FP-F3412-10-00
Required: 1
RACE, BALL 2
Supersedes: 183-23412-00-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
RETAINER, BALL BEARING
4
Yamaha Motors
RETAINER, BALL BEARINGB6E-2341E-00-00
Required: 2
RETAINER, BALL BEARING
Supersedes: 156-2341E-00-00
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
5
Required: 1
COVER, BALL RACE 1
Price unavailable
6
Required: 1
NUT
Price unavailable
7
Required: 1
CROWN, HANDLE
Price unavailable
Washer Based Bolt
8
Yamaha Motors
Washer Based Bolt90105-14102-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
9
Required: 2
BOLT
Price unavailable
10
Required: 1
CLAMP
Price unavailable
11
Required: 1
CLAMP
Price unavailable
Flange Bolt
12
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
13
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
