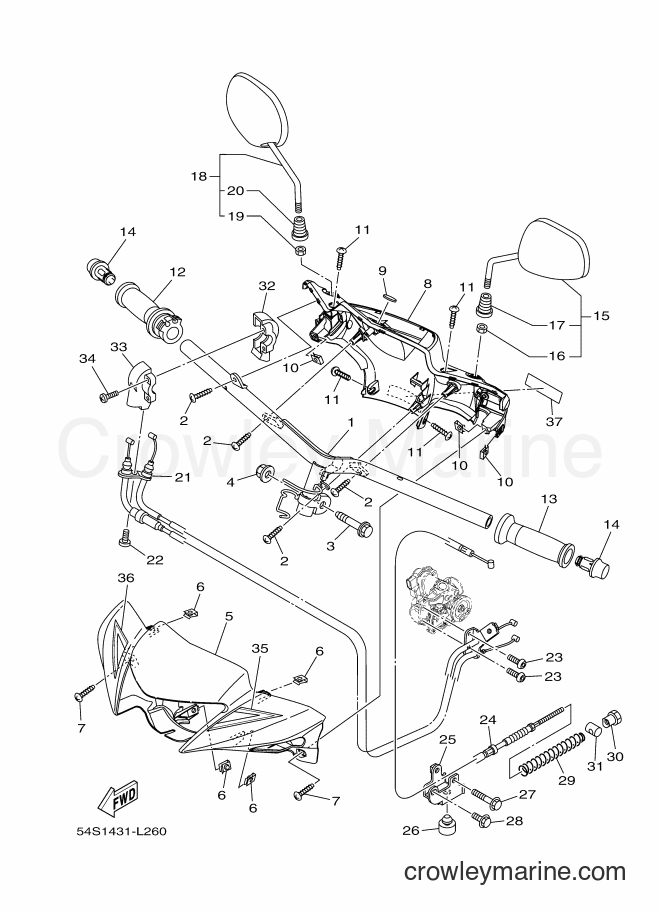

2012 Scooter AL115FC - AL115FC (54S2) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AL115FC (54S2) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/s5veBy80.png)
1
Required: 1
HANDLE COMP.
Price unavailable
2
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$8.07
You save $1.42
4
Required: 1
NUT, SELF-LOCKING
Price unavailable
5
Required: 1
COVER,HAND UPPER(0903,SMX)
Price unavailable
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Required: 1
COVER,HAND UPPER 2(00TR,RTR)
Price unavailable
9
Required: 1
EMBLEM
Price unavailable
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
GRIP ASSY
Price unavailable
13
Required: 1
GRIP
Price unavailable
14
Required: 2
END, GRIP
Price unavailable
15
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
16
Yamaha Motors
Nut95317-10600-00
Required: 1
. NUT
Supersedes: 95307-10600-00
$3.44
You save $0.61
17
Required: 1
. BOOT 1
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
19
Required: 1
. NUT
Price unavailable
20
Required: 1
. BOOT 1
Price unavailable
21
Required: 1
THROTTLE CABLE ASSY
Price unavailable
22
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
$8.07
You save $1.42
23
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
$8.07
You save $1.42
24
Required: 1
CABLE, BRAKE
Price unavailable
25
Required: 1
HOLDER, WIRE
Price unavailable
26
Required: 1
STOPPER, MAIN STAND
Price unavailable
$3.15
You save $0.56
$2.89
You save $0.51
29
Required: 1
SPRING, COMPRESSION
Price unavailable
30
Required: 1
NUT
Price unavailable
In stock
Only 4 remaining
$8.07
You save $1.42
32
Required: 1
CAP, GRIP UPPER
Price unavailable
32
Required: 1
CAP, GRIP UPPER
Price unavailable
33
Required: 1
CAP, GRIP UNDER
Price unavailable
33
Required: 1
CAP, GRIP UNDER
Price unavailable
34
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
35
Required: 1
GRAPHIC 1
Price unavailable
36
Required: 1
GRAPHIC 2
Price unavailable
37
Required: 1
LABEL, NOTICE 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
