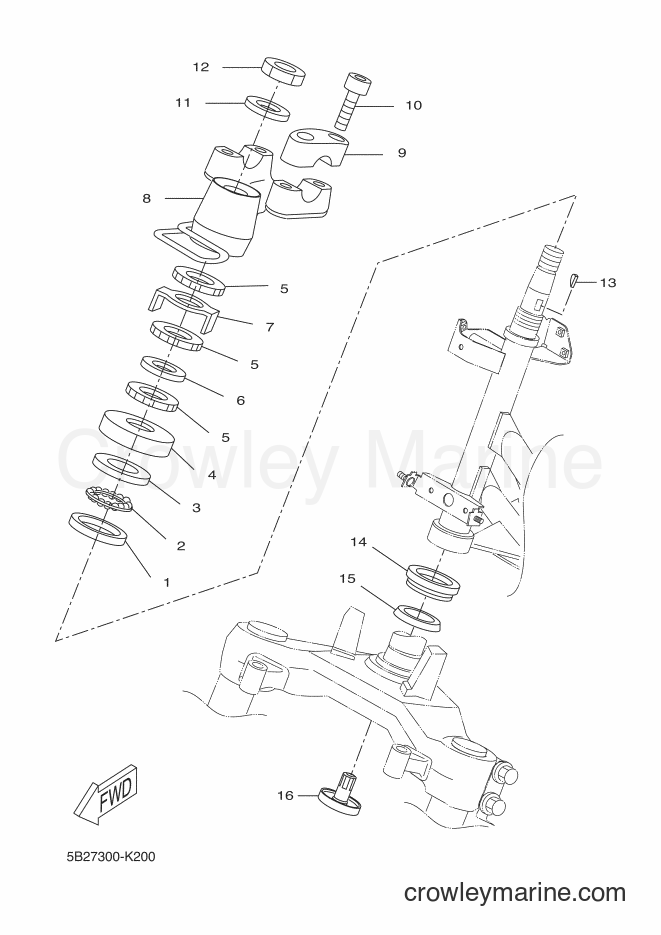

2011 Scooter VP250 - VP250 (5B27) [040] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B27) [040] - STEERING
Change View:
Ball Race
1
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
RETAINER, BALL BEARING
2
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 1
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
BALL RACE
3
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
4
Required: 1
COVER, BALL RACE 2
Price unavailable
5
Required: 3
NUT
Price unavailable
6
Required: 1
WASHER, PLATE
Price unavailable
7
Required: 1
WASHER, SPECIAL
Price unavailable
8
Required: 1
HOLDER, HANDLE LOWER
Price unavailable
9
Required: 2
HOLDER, HANDLE UPPER
Price unavailable
Socket Bolt
10
Yamaha Motors
Socket Bolt91317-08030-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
WASHER, PLATE
Price unavailable
Nut (71F)
12
Yamaha Motors
Nut (71F)90170-20386-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Woodruff Key
13
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
14
Required: 1
BEARING
Price unavailable
15
Required: 1
SEAL, DUST
Price unavailable
16
Required: 1
COVER, UNDER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
