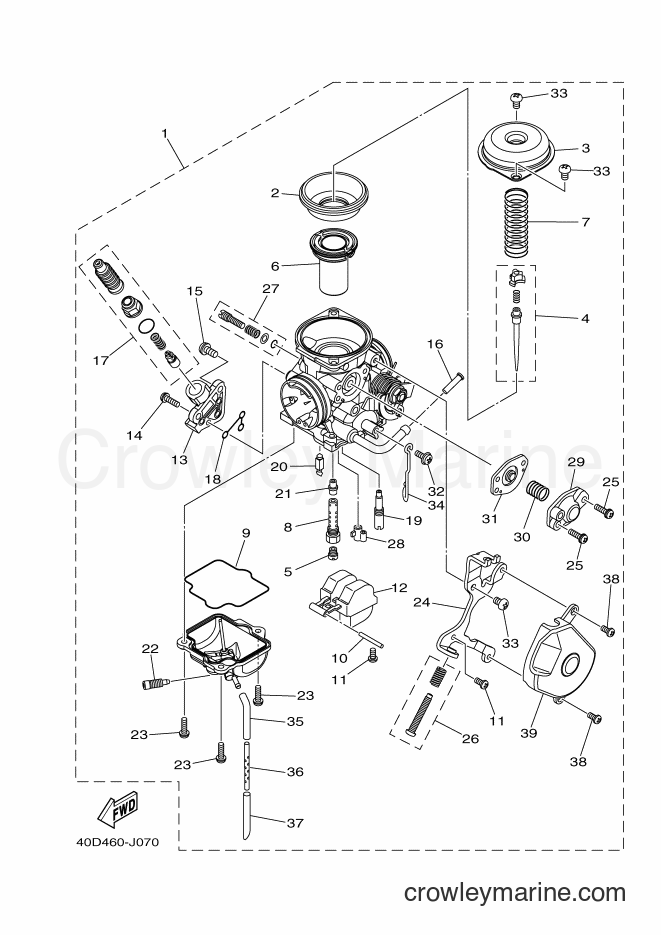

2011 Scooter TK115C - TK115C (40D1) [010] CARBURETOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TK115C (40D1) [010] - CARBURETOR
Change View:
1
Required: 1
CARBURETOR ASSY 1
Price unavailable
2
Required: 1
. DIAPHRAGM
Price unavailable
3
Required: 1
. COVER, DIAPHRAGM
Price unavailable
4
Required: 1
. NEEDLE SET
Price unavailable
MAIN JET 120
5
Yamaha Motors
MAIN JET 1203G2-14231-24-00
Required: 1
. JET, MAIN (#120)
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
6
Required: 1
. VALVE, THROTTLE 1
Price unavailable
7
Required: 1
. SPRING
Price unavailable
8
Required: 1
. HOLDER
Price unavailable
9
Required: 1
. O-RING
Price unavailable
Float Pin
10
Yamaha Motors
Float Pin353-14186-00-00
Required: 1
. PIN, FLOAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Pan Head Screw
11
Yamaha Motors
Pan Head Screw98507-04008-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.14
$1.82
You save $0.32
More details
12
Required: 1
. FLOAT
Price unavailable
13
Required: 1
. BODY, STARTER
Price unavailable
14
Required: 1
. SCREW,WITH WASHER
Price unavailable
PAN HEAD SCREW WITH WASHER
15
Yamaha Motors
PAN HEAD SCREW WITH WASHER97607-05112-00
Required: 2
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Filter Net
16
Yamaha Motors
Filter Net5LW-14994-00-00
Required: 1
. NET, FILTER
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
17
Required: 1
. STARTER SET
Price unavailable
18
Required: 1
. O-RING
Price unavailable
19
Required: 1
. JET, PILOT (# 15)
Price unavailable
20
Required: 1
. NEEDLE ASSY
Price unavailable
21
Required: 1
. NOZZLE, MAIN
Price unavailable
22
Required: 1
. PLUG, DRAIN
Price unavailable
Pan Head Screw N15
23
Yamaha Motors
Pan Head Screw N1598507-04014-00
Required: 3
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
24
Required: 1
. BRACKET
Price unavailable
Screw With Washer
25
Yamaha Motors
Screw With Washer97607-04114-00
Required: 2
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
26
Required: 1
. THROTTLE SCREW SET
Price unavailable
27
Required: 1
. PILOT SCREW SET
Price unavailable
28
Required: 1
. HOLDER
Price unavailable
Carburetor Cover
29
Yamaha Motors
Carburetor Cover5AP-14280-00-00
Required: 1
. COVER, CARBURETOR
Cross Ship
Leaves in 2-5 days
$46.99
$39.94
You save $7.05
More details
30
Required: 1
. SPRING
Price unavailable
Screw
32
Yamaha Motors
Screw4SV-24453-00-00
Required: 1
. SCREW
Cross Ship
Leaves in 2-5 days
$8.49
$6.79
You save $1.70
More details
34
Required: 1
. CLIP
Price unavailable
35
Required: 1
. PIPE
Price unavailable
36
Required: 1
. PIPE
Price unavailable
37
Required: 1
. PIPE, OVER FLOW 1
Price unavailable
38
Required: 2
. SCREW
Price unavailable
39
Required: 1
. COVER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
