2011 Scooter T115SEC - T115SEC (31C6) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

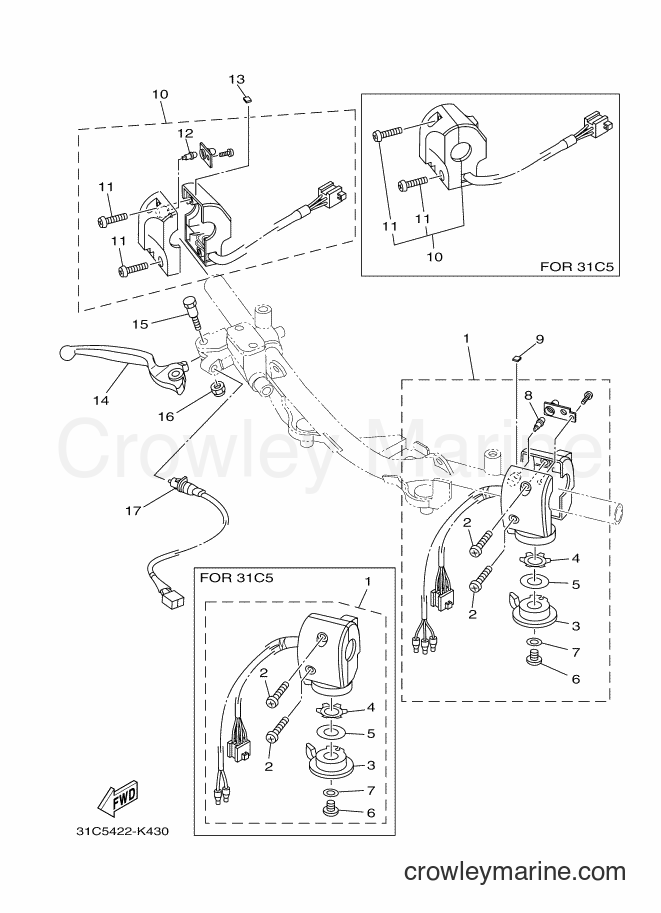

Yamaha Motors T115SEC (31C6) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
Pan Head Screw
2
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98507-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
3
Required: 1
. LEVER, STARTER
Price unavailable
Special Shape Washer
4
Yamaha Motors
Special Shape Washer90209-10131-00
Required: 1
. WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
. SPACER
Price unavailable
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98502-06008-00
Required: 1
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plain Washer
7
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
. WASHER
Supersedes: 92902-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
8
Required: 1
. BULB, LED
Price unavailable
9
Required: 1
DAMPER
Price unavailable
10
Required: 1
SWITCH, HANDLE 2
Price unavailable
10
Required: 1
SWITCH, HANDLE 2
Price unavailable
Pan Head Screw
11
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
. BULB, LED
Price unavailable
13
Required: 1
DAMPER
Price unavailable
14
Required: 1
LEVER 2
Price unavailable
BOLT
15
Yamaha Motors
BOLT90109-06577-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
NUT
16
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
17
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
