All diagrams for this model

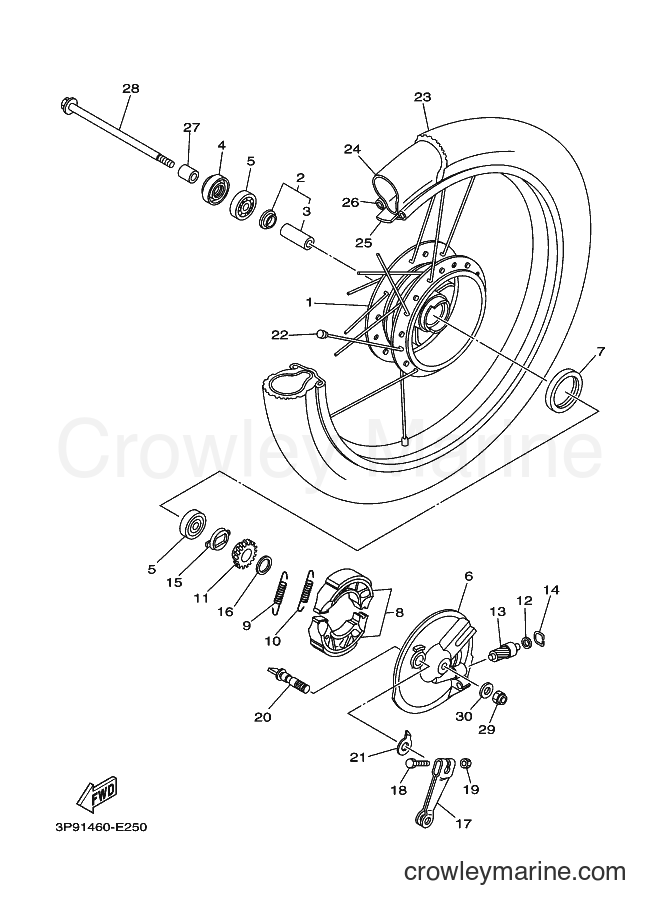

2011 Scooter T115LE - T115LE (35D4) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115LE (35D4) [010] - FRONT WHEEL
Change View:
1
Required: 1
HUB, FRONT
Price unavailable
2
Required: 1
FLANGE, SPACER 2
Price unavailable
3
Required: 1
. SPACER
Price unavailable
4
Required: 1
OIL SEAL
Price unavailable
5
Required: 2
BEARING
Price unavailable
6
Required: 1
PLATE, BRAKE SHOE
Price unavailable
7
Required: 1
OIL SEAL
Price unavailable
8
Required: 1
BRAKE SHOE SET
Price unavailable
Tension Spring
9
Yamaha Motors
Tension Spring90506-12001-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Tension Spring
10
Yamaha Motors
Tension Spring90506-15001-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
11
Required: 1
GEAR, DRIVE
Price unavailable
Plain Washer
12
Yamaha Motors
Plain Washer90201-064L6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
13
Required: 1
GEAR, METER
Price unavailable
14
Required: 1
RING, STOP
Price unavailable
15
Required: 1
CLUTCH, METER
Price unavailable
Plate Washer
16
Yamaha Motors
Plate Washer90201-20269-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
17
Required: 1
LEVER, CAMSHAFT 1
Price unavailable
Bolt
18
Yamaha Motors
Bolt90101-06278-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Nut
19
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
20
Required: 1
CAMSHAFT
Price unavailable
21
Required: 1
PLATE, INDICATOR
Price unavailable
22
Required: 1
SPOKE SET, FRONT
Price unavailable
23
Required: 1
TIRE (70/90-17M/C 38P D102FA)
Price unavailable
23
Required: 1
TIRE (70/90-17M/C 38P NF63B)
Price unavailable
24
Required: 1
TUBE (2.25/2.50-17 TR4)
Price unavailable
24
Required: 1
TUBE (2.25-17 TR4)
Price unavailable
25
Required: 1
BAND, RIM (2.25/2.75-17)
Price unavailable
25
Required: 1
BAND, RIM (1.20-17)
Price unavailable
26
Required: 1
RIM (1.40-17)
Price unavailable
517 F. WHEEL COLLAR
27
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
28
Required: 1
AXLE, WHEEL
Price unavailable
29
Required: 1
NUT, SELF-LOCKING
Price unavailable
Plain Washer
30
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
