2011 Scooter CW50N - CW50N (2B7G) [020] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

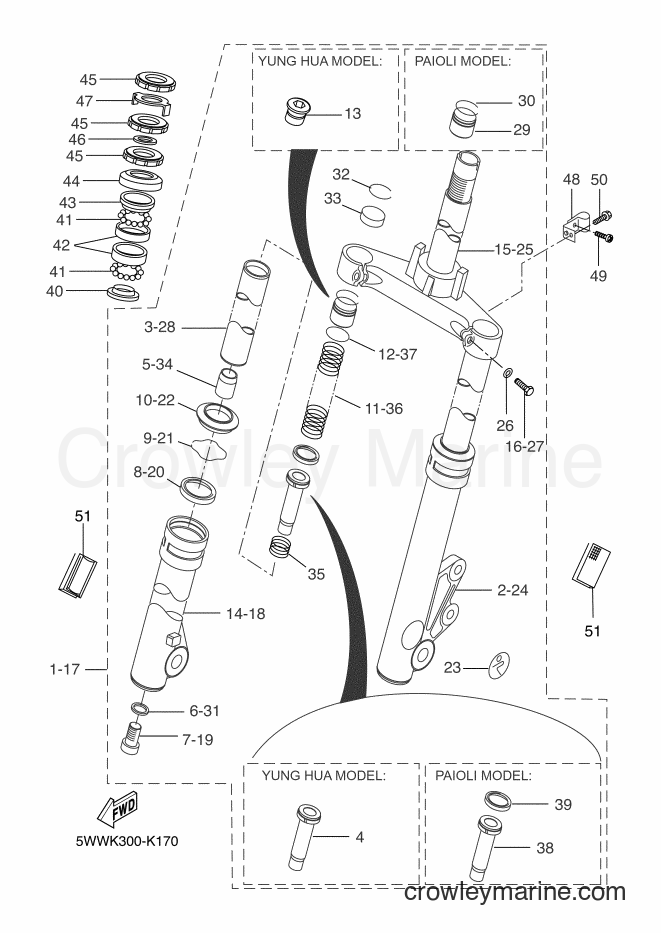

Yamaha Motors CW50N (2B7G) [020] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 2
. INNER TUBE COMP.1
Price unavailable
4
Required: 2
. CYLINDER COMP., FRONT FORK
Price unavailable
5
Required: 2
. SPACER, OIL LOCK
Price unavailable
6
Required: 2
. GASKET
Price unavailable
7
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
8
Required: 2
. OIL SEAL
Price unavailable
9
Required: 2
. RING, SNAP
Price unavailable
10
Required: 2
. SEAL, DUST
Price unavailable
11
Required: 2
. SPRING, FRONT FORK
Price unavailable
12
Required: 2
. O-RING
Price unavailable
13
Required: 2
. BOLT, CAP
Price unavailable
14
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
15
Required: 1
. UNDER BRACKET COMP.
Price unavailable
16
Required: 2
. BOLT, SPECIAL
Price unavailable
17
Required: 1
FRONT FORK ASSY
Price unavailable
18
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
19
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
20
Required: 2
. OIL SEAL
Price unavailable
21
Required: 2
. RING, SNAP
Price unavailable
22
Required: 2
. SEAL, DUST
Price unavailable
23
Required: 2
. EMBLEM
Price unavailable
24
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
25
Required: 1
. UNDER BRACKET COMP.
Price unavailable
26
Required: 2
. WASHER, CAP
Price unavailable
27
Required: 2
. BOLT, SPECIAL
Price unavailable
28
Required: 2
. INNER TUBE COMP.1
Price unavailable
29
Required: 2
. BOLT, CAP + O-RING
Price unavailable
30
Required: 2
. CIRCLIP
Price unavailable
31
Required: 2
. WASHER, FELT
Price unavailable
32
Required: 2
. RING, SNAP
Price unavailable
33
Required: 2
. CAP
Price unavailable
34
Required: 2
. SPINDLE, TAPER
Price unavailable
35
Required: 2
. SPRING, REBOUND
Price unavailable
36
Required: 2
. SPRING, FRONT FORK
Price unavailable
37
Required: 2
. O-RING
Price unavailable
38
Required: 2
. PISTON, FRONT FORK
Price unavailable
39
Required: 2
. RING, PISTON
Price unavailable
BALL RACE
40
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
RACE, BALL 4
Supersedes: 22F-23414-01-00
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
RETAINER, BALL BEARING
41
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 2
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Ball Race
42
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BALL RACE
43
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
44
Required: 1
COVER, BALL RACE 2
Price unavailable
45
Required: 3
NUT
Price unavailable
46
Required: 1
WASHER, PLATE
Price unavailable
47
Required: 1
WASHER, SPECIAL
Price unavailable
48
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
49
Required: 1
SCREW, PAN HEAD
Price unavailable
50
Required: 1
BOLT, FLANGE
Price unavailable
51
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
