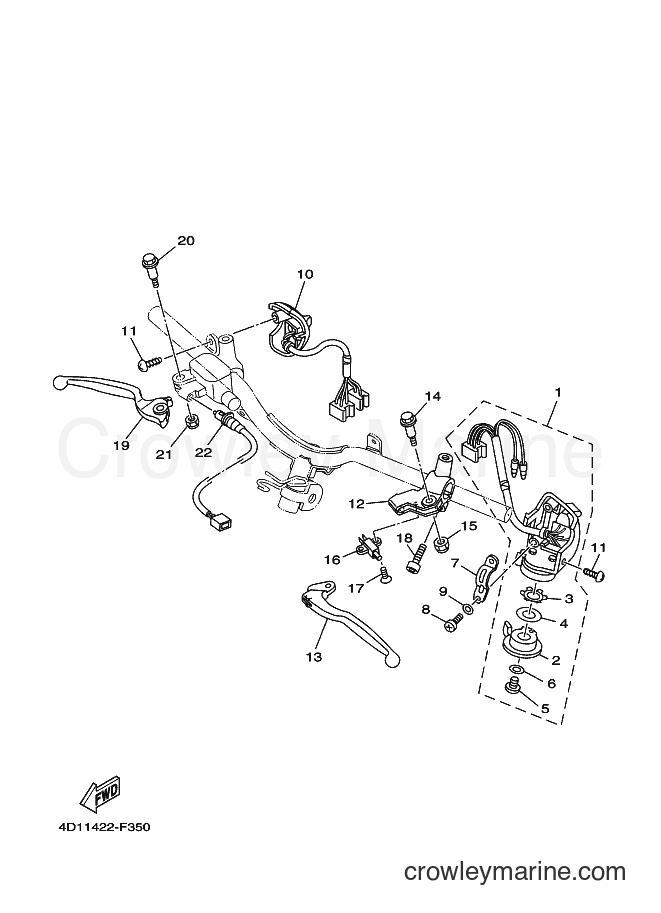

2010 Scooter AF115C - AF115C (23C3) [010] HANDLE SWITCH & LEVER diagram
![Yamaha Motors AF115C (23C3) [010] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/6zNLRO11.png)
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Required: 1
. LEVER, STARTER
Price unavailable
$8.92
You save $1.57
4
Required: 1
. SPACER
Price unavailable
5
Required: 1
. SCREW, PAN HEAD
Price unavailable
6
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
. WASHER
Supersedes: 9290L-06200-00
$0.85
You save $0.15
7
Required: 1
BRACKET 1
Price unavailable
8
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
9
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
10
Required: 1
SWITCH, HANDLE 2
Price unavailable
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
HOLDER, LEVER 1
Price unavailable
13
Required: 1
LEVER 1
Price unavailable
$4.67
You save $0.82
15
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44
16
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
17
Yamaha Motors
Flat Screw98707-03008-00
Required: 1
SCREW, FLAT HEAD
$7.22
You save $1.27
$2.34
You save $0.41
19
Required: 1
LEVER 2
Price unavailable
$5.52
You save $0.97
21
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44
22
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
