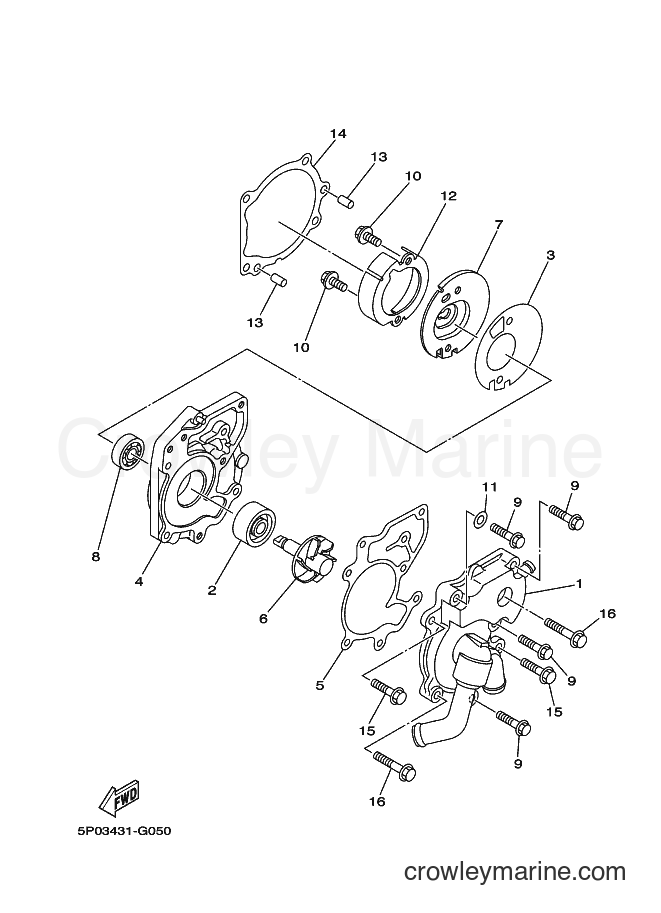

2009 Scooter AT135 - AT135 (5P14) [010] WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135 (5P14) [010] - WATER PUMP
Change View:
1
Required: 1
COVER, HOUSING
Price unavailable
2
Required: 1
OIL SEAL
Price unavailable
3
Required: 1
GASKET, HOUSING COVER 2
Price unavailable
4
Required: 1
COVER, CYLINDER HEAD SIDE 3
Price unavailable
5
Required: 1
GASKET, CYLINDER HEAD SIDE
Price unavailable
6
Required: 1
IMPELLER SHAFT ASSY
Price unavailable
7
Required: 1
PLATE
Price unavailable
8
Required: 1
BEARING
Price unavailable
Flange Bolt
9
Yamaha Motors
Flange Bolt95022-06025-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
12
Required: 1
PLATE
Price unavailable
Dowel Pin
13
Yamaha Motors
Dowel Pin93606-10800-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
14
Required: 1
GASKET
Price unavailable
Small Bolt Flange
16
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
