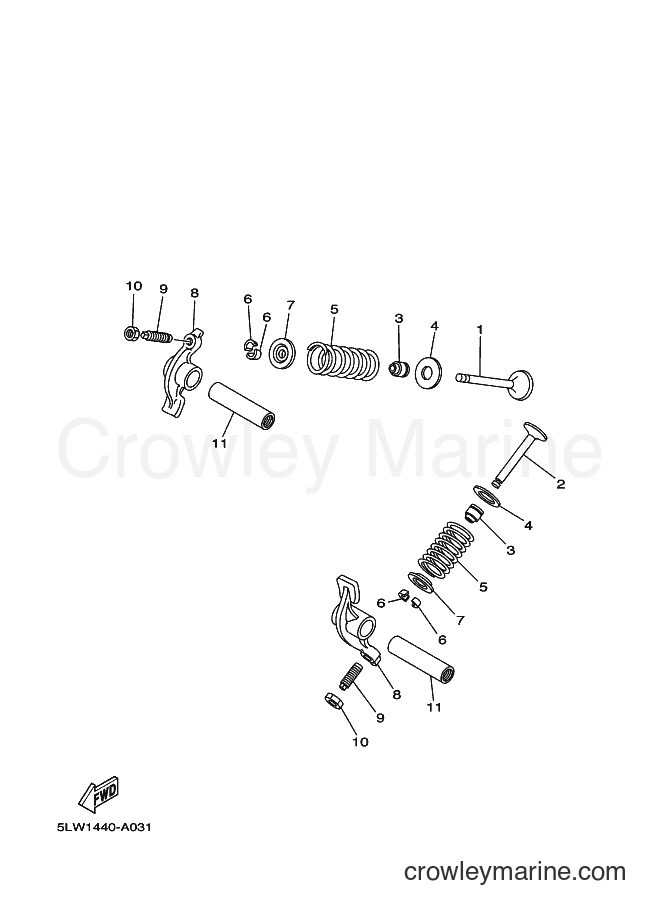

2009 Scooter AL115C - AL115C (28DB) [010] VALVE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (28DB) [010] - VALVE
Change View:
1
Required: 1
VALVE, INTAKE
Price unavailable
2
Required: 1
VALVE, EXHAUST
Price unavailable
3
Required: 2
SEAL, VALVE STEM
Price unavailable
4
Required: 2
SEAT, VALVE SPRING
Price unavailable
5
Required: 2
SPRING, VALVE INNER
Price unavailable
VALVE COTTER (2D51)
6
Yamaha Motors
VALVE COTTER (2D51)5TL-E2118-00-00
Required: 4
COTTER, VALVE
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
Valve Spring Retainer
7
Yamaha Motors
Valve Spring Retainer33M-12117-01-00
Required: 2
RETAINER, VALVE SPRING
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
VALVE ROCKER ARM
8
Yamaha Motors
VALVE ROCKER ARM2P2-E2151-00-00
Required: 2
ARM, VALVE ROCKER
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
Rocker Shaft
11
Yamaha Motors
Rocker Shaft22F-12156-00-00
Required: 2
SHAFT, ROCKER 2
Supersedes: 4ST-E2156-00-00
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
