All diagrams for this model

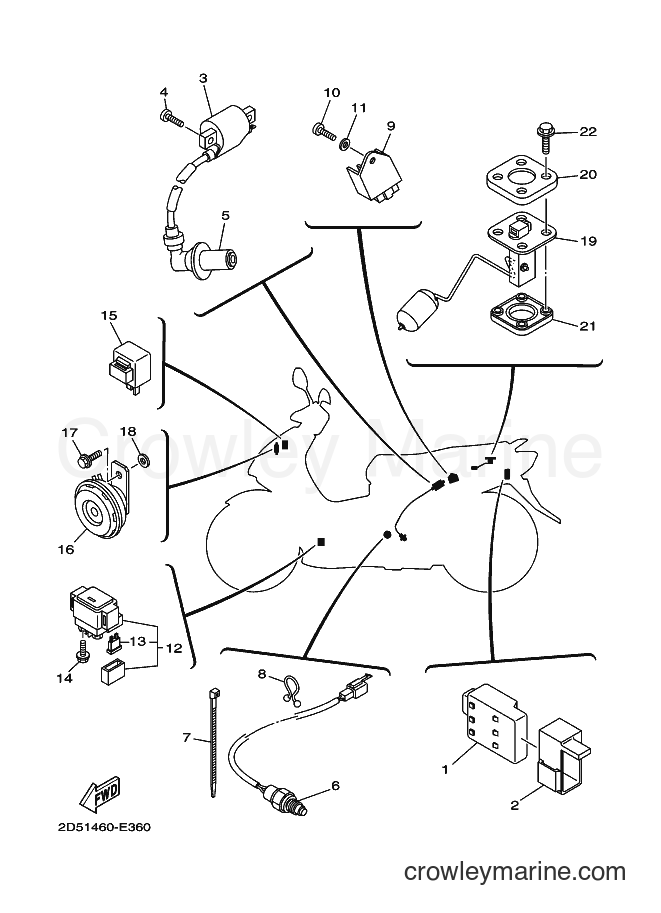

2006 Scooter AT115C - AT115C (2D51) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115C (2D51) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
PANHEAD SCREW (3GW)
4
Yamaha Motors
PANHEAD SCREW (3GW)98507-06018-00
Required: 2
SCREW,PAN HEAD
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 1
THERMO SWITCH ASSY
Price unavailable
Clamp
7
Yamaha Motors
Clamp90465-12356-00
Required: 1
CLAMP
Supersedes: 90464-36800-00
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
Clamp
8
Yamaha Motors
Clamp90464-16801-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
9
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Pan Head Screw
10
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details
12
Required: 1
STARTER RELAY ASSY
Price unavailable
Fuse (10A-Bl)
13
Yamaha Motors
Fuse (10A-Bl)42X-82151-00-00
Required: 2
. FUSE (10A-BL)
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
Small Flange Bolt
14
Yamaha Motors
Small Flange Bolt95027-06008-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
15
Required: 1
FLASHER RELAY ASSY
Price unavailable
16
Required: 1
HORN
Price unavailable
Plain Washer
18
Yamaha Motors
Plain Washer90201-06095-00
Required: 1
WASHER, PLATE
Supersedes: 90201-06063-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
19
Required: 1
SENDER
Price unavailable
20
Required: 1
RETAINER
Price unavailable
21
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
22
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
