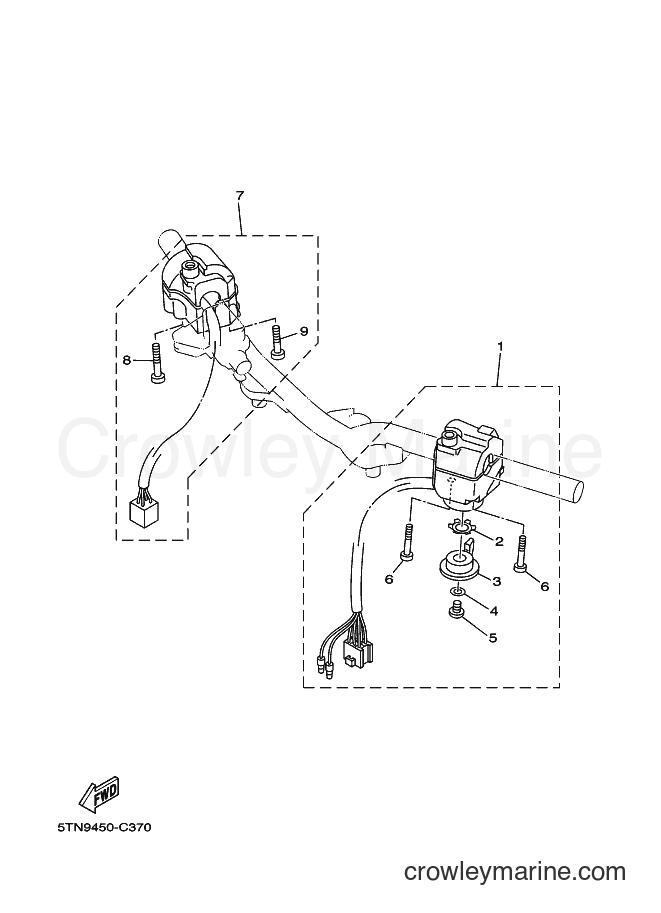

2005 Scooter T110 - T110 (4P41) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110 (4P41) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
Special Shape Washer
2
Yamaha Motors
Special Shape Washer90209-10131-00
Required: 1
. WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
. LEVER, STARTER
Price unavailable
Plain Washer
4
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
. WASHER, PLAIN
Supersedes: 92901-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$3.60
You save $-2.60
More details
98517-06008-00
5
Yamaha Motors
98517-06008-0098507-06008-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98506-06008-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98507-05035-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98506-05035-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
SWITCH, HANDLE 1
Price unavailable
8
Required: 1
. SCREW, PAN HEAD
Price unavailable
9
Required: 1
. SCREW, PAN HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
