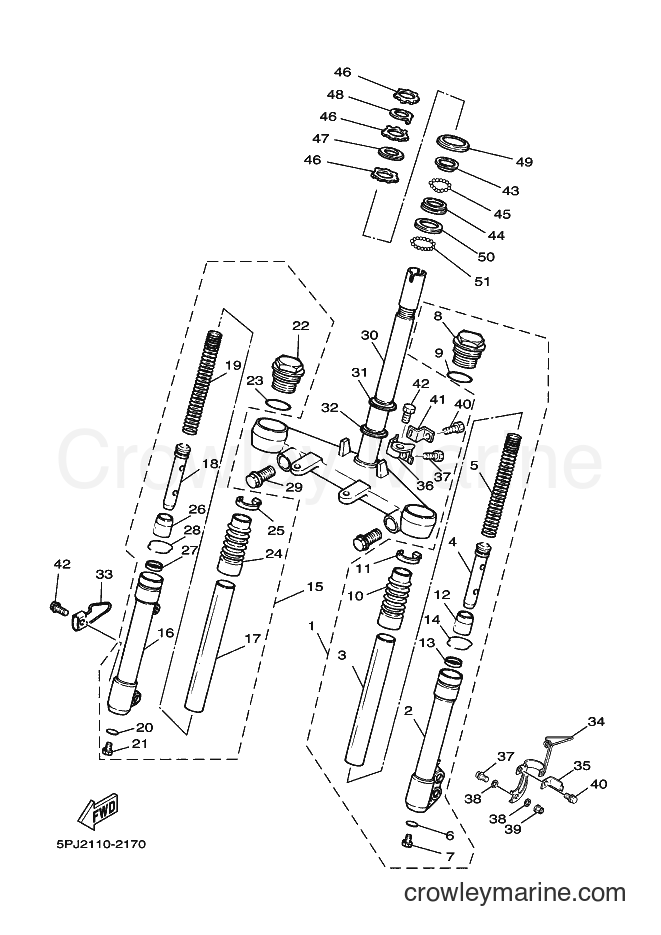

2004 Scooter YW50 - YW50 (5PN3) [010] FRONT FORK diagram

1
Yamaha Motors
Front Left Fork Assembly4VP-F3102-00-1V
Required: 1
FRONT FORK ASSY (L.H)
$101.14
You save $17.85

2
Yamaha Motors
TUBE, OUTER 14VP-F3126-00-1V
Required: 1
. TUBE, OUTER (LEFT)
$51.84
You save $9.15

3
Yamaha Motors
Inner Tube Comp4VP-F3110-00-00
Required: 1
. INNER TUBE COMP.1
$28.04
You save $4.95

4
Yamaha Motors
Cylinder Comp4VP-F3170-10-00
Required: 1
. CYLINDER COMP., FRONT FORK
$14.02
You save $2.47

5
Yamaha Motors
FRONT FORK SPRING4VP-F3141-10-00
Required: 1
. SPRING, FRONT FORK
$7.22
You save $1.27
$0.26
You save $0.05

7
Yamaha Motors
HEXAGON SOCKET BOLT3GF-F3181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
$1.27
You save $0.23
$7.64
You save $1.35
$9.77
You save $1.72
$7.22
You save $1.27
$0.98
You save $0.17
$8.07
You save $1.42
$8.07
You save $1.42

14
Yamaha Motors
Oil Seal Clip4VP-F3156-00-00
Required: 1
. CLIP, OIL SEAL
$0.98
You save $0.17

15
Yamaha Motors
Front Right Fork Assembly4VP-F3103-00-1V
Required: 1
FRONT FORK ASSY (R.H)
$104.54
You save $18.45

16
Yamaha Motors
OUTER TUBE4VP-F3136-00-1V
Required: 1
. TUBE, OUTER (RIGHT)
$50.99
You save $9.00

17
Yamaha Motors
Inner Tube Comp4VP-F3110-00-00
Required: 1
. INNER TUBE COMP.1
$28.04
You save $4.95

18
Yamaha Motors
Cylinder Comp4VP-F3170-10-00
Required: 1
. CYLINDER COMP., FRONT FORK
$14.02
You save $2.47

19
Yamaha Motors
FRONT FORK SPRING4VP-F3141-10-00
Required: 1
. SPRING, FRONT FORK
$7.22
You save $1.27
$0.26
You save $0.05

21
Yamaha Motors
HEXAGON SOCKET BOLT3GF-F3181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
$1.27
You save $0.23
$7.64
You save $1.35
$9.77
You save $1.72
$7.22
You save $1.27
$0.98
You save $0.17
$8.07
You save $1.42
$8.07
You save $1.42

28
Yamaha Motors
Oil Seal Clip4VP-F3156-00-00
Required: 1
. CLIP, OIL SEAL
$0.98
You save $0.17
$1.02
You save $0.18

30
Yamaha Motors
Under Bracket Comp5PJ-F3340-01-00
Required: 1
UNDER BRACKET COMP.
Supersedes: 5PJ-F3340-00-00
$117.29
You save $20.70

31
Yamaha Motors
BALL RACE4C6-F3411-10-00
Required: 1
RACE, BALL 1
Supersedes: 1MH-F3411-00-00
$5.52
You save $0.97

32
Yamaha Motors
STEERING SEAL3KW-F3462-00-00
Required: 1
SEAL, STEERING
$2.00
You save $0.35
$2.00
You save $0.35

34
Yamaha Motors
BRAKE HOSE HOLER4VP-F5875-01-00
Required: 1
HOLDER, BRAKE HOSE 1
$8.07
You save $1.42

35
Yamaha Motors
BRAKE HOSE HOLER5FA-F5876-00-00
Required: 1
HOLDER, BRAKE HOSE 2
$2.08
You save $0.37

36
Yamaha Motors
BRAKE HOSE HOLER5FA-F5886-01-00
Required: 1
HOLDER, BRAKE HOSE
Supersedes: 5FA-F5886-00-00
$3.57
You save $0.63
In stock
Only 2 remaining
$2.98
You save $0.52

38
Yamaha Motors
Plate Washer90201-064J1-00
Required: 2
WASHER, PLATE
$4.67
You save $0.82
39
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44

40
Yamaha Motors
Bolt With Washer90119-05062-00
Required: 2
BOLT, WITH WASHER
$8.92
You save $1.57

41
Yamaha Motors
BRAKE HOSE HOLDER5FA-F5887-00-00
Required: 1
HOLDER, BRAKE HOSE
$0.94
You save $0.17

42
Yamaha Motors
Flange Bolt95817-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$4.67
You save $0.82
43
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
$10.62
You save $1.87

44
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
$7.22
You save $1.27

45
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 1
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
$13.17
You save $2.32
$25.49
You save $4.50
47
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57

48
Yamaha Motors
Special Washer4VP-F3418-00-00
Required: 1
WASHER, SPECIAL
$1.78
You save $0.32

49
Yamaha Motors
Ball Race Cover 24TE-F3416-00-00
Required: 1
COVER, BALL RACE 2
$0.55
You save $0.10

50
Yamaha Motors
Ball RaceB6E-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 156-23412-00-00
$12.32
You save $2.17

51
Yamaha Motors
RETAINER, BALL BEARINGB6E-2341E-00-00
Required: 1
RETAINER, BALL BEARING
Supersedes: 156-2341E-00-00
$14.02
You save $2.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
