2003 Scooter T105E - T105E (5ER5) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

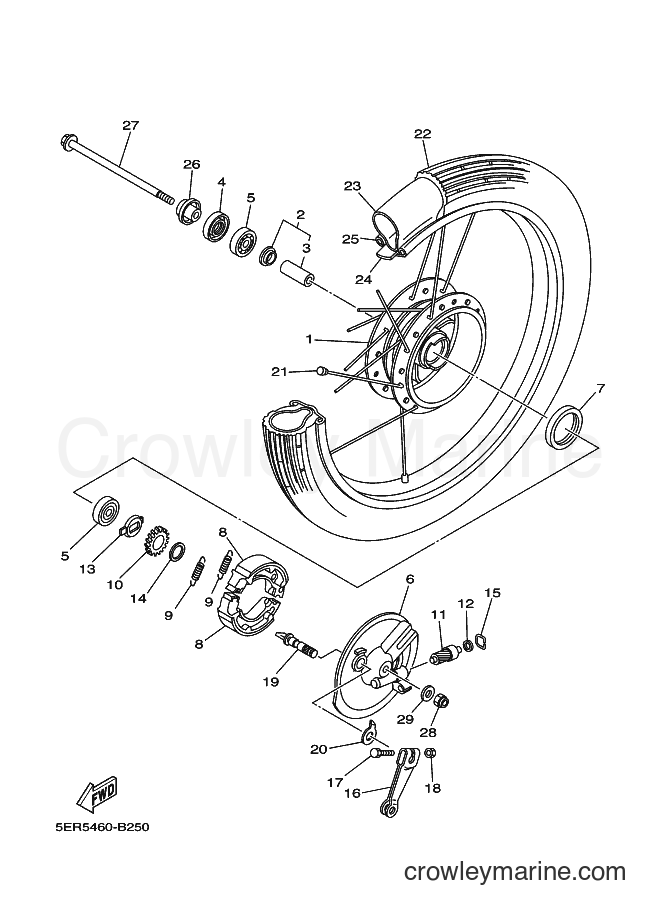

Yamaha Motors T105E (5ER5) [010] - FRONT WHEEL
Change View:
1
Required: 1
HUB, FRONT
Price unavailable
2
Required: 1
FLANGE, SPACER 2
Price unavailable
3
Required: 1
. SPACER
Price unavailable
4
Required: 1
OIL SEAL
Price unavailable
5
Required: 2
BEARING
Price unavailable
6
Required: 1
PLATE, BRAKE SHOE
Price unavailable
7
Required: 1
OIL SEAL
Price unavailable
8
Required: 2
BRAKE SHOE COMP.
Price unavailable
TENSION SPRING
9
Yamaha Motors
TENSION SPRING90506-18288-00
Required: 2
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
GEAR, DRIVE (20T)
Price unavailable
11
Required: 1
GEAR, METER (8T)
Price unavailable
Plain Washer
12
Yamaha Motors
Plain Washer90201-064L6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Meter Clutch
13
Yamaha Motors
Meter Clutch183-25149-00-00
Required: 1
CLUTCH, METER
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Plate Washer
14
Yamaha Motors
Plate Washer90201-20269-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Stop Ring
15
Yamaha Motors
Stop Ring2T4-25137-00-00
Required: 1
RING, STOP
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
16
Required: 1
LEVER, CAMSHAFT 1
Price unavailable
Bolt
17
Yamaha Motors
Bolt90101-06278-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Nut
18
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
19
Required: 1
CAMSHAFT
Price unavailable
20
Required: 1
PLATE, INDICATOR
Price unavailable
21
Required: 1
SPOKE SET, FRONT
Price unavailable
22
Required: 1
TIRE (2.25-17)
Price unavailable
23
Required: 1
TUBE (2.25-17 TR4)
Price unavailable
24
Required: 1
BAND, RIM (1.20-17)
Price unavailable
25
Required: 1
RIM (1.40-17)
Price unavailable
517 F. WHEEL COLLAR
26
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
27
Required: 1
AXLE, WHEEL
Price unavailable
Self-Locking Nut
28
Yamaha Motors
Self-Locking Nut90185-10091-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plain Washer
29
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
