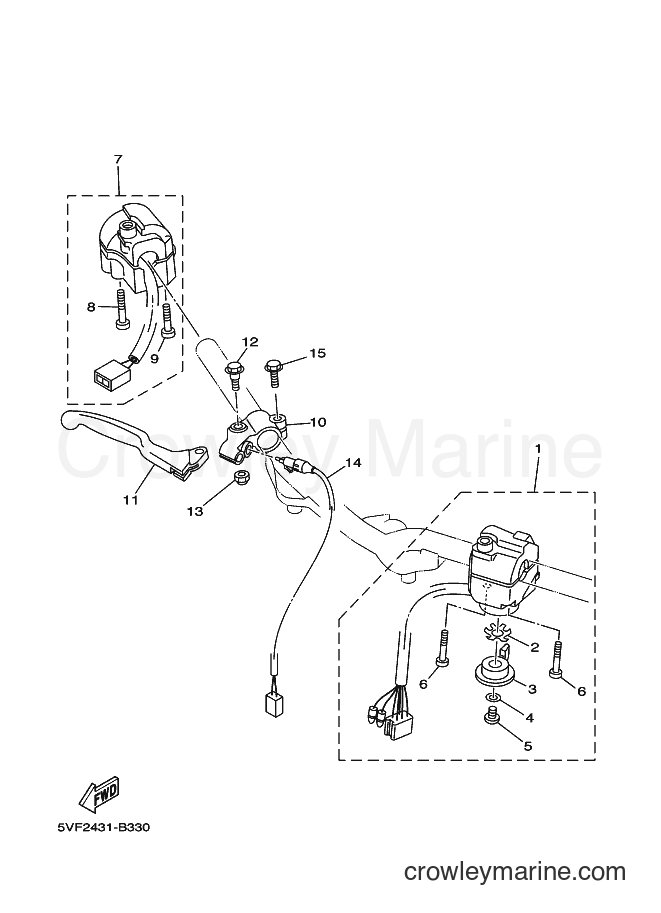

2003 Scooter L-110C - L-110C (5VF2) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors L-110C (5VF2) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
Special Shape Washer
2
Yamaha Motors
Special Shape Washer90209-10131-00
Required: 1
. WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
. LEVER, STARTER
Price unavailable
Plain Washer
4
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
. WASHER, PLAIN
Supersedes: 92901-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
98517-06008-00
5
Yamaha Motors
98517-06008-0098507-06008-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98506-06008-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98507-05035-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98506-05035-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
SWITCH, HANDLE 1
Price unavailable
8
Required: 1
. SCREW, PAN HEAD
Price unavailable
9
Required: 1
. SCREW, PAN HEAD
Price unavailable
10
Required: 1
HOLDER, LEVER 2
Price unavailable
11
Required: 1
LEVER 2
Price unavailable
12
Required: 1
BOLT
Price unavailable
NUT
13
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
14
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Bolt with Washer
15
Yamaha Motors
Bolt with Washer97507-06525-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
