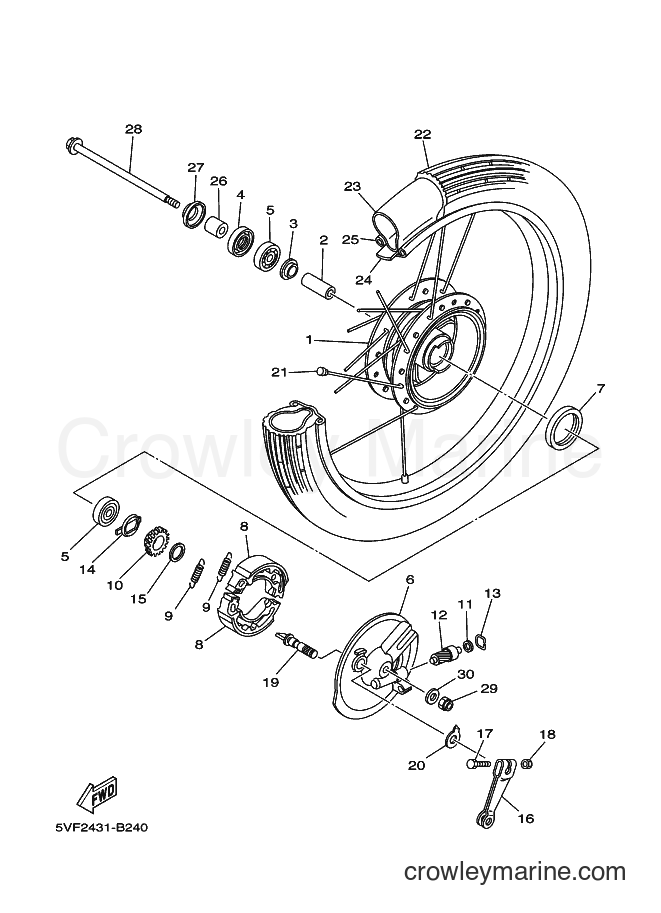

2003 Scooter L-110C - L-110C (5VF2) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors L-110C (5VF2) [010] - FRONT WHEEL
Change View:
1
Required: 1
HUB, FRONT
Price unavailable
2
Required: 1
SPACER
Price unavailable
3
Required: 1
FLANGE, SPACER 1
Price unavailable
Oil Seal
4
Yamaha Motors
Oil Seal93106-20808-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
5
Required: 2
BEARING
Price unavailable
6
Required: 1
PLATE, BRAKE SHOE
Price unavailable
7
Required: 1
OIL SEAL
Price unavailable
8
Required: 2
BRAKE SHOE COMP.
Price unavailable
TENSION SPRING
9
Yamaha Motors
TENSION SPRING90506-18288-00
Required: 2
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
GEAR, DRIVE (20T)
Price unavailable
Plain Washer
11
Yamaha Motors
Plain Washer90201-064L6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
12
Required: 1
GEAR, METER (8T)
Price unavailable
13
Required: 1
RING, STOP
Price unavailable
14
Required: 1
CLUTCH, METER
Price unavailable
Plate Washer
15
Yamaha Motors
Plate Washer90201-20269-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
16
Required: 1
LEVER, CAMSHAFT 1
Price unavailable
Bolt
17
Yamaha Motors
Bolt90101-06278-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Nut
18
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
Camshaft
19
Yamaha Motors
Camshaft4GL-25351-00-00
Required: 1
CAMSHAFT
Supersedes: 3Y6-25351-00-00
Cross Ship
Leaves in 2-5 days
$74.99
$63.74
You save $11.25
More details
20
Required: 1
PLATE, INDICATOR
Price unavailable
21
Required: 1
SPOKE SET, REAR
Price unavailable
22
Required: 1
TIRE (70/90-17 M/C 38P V244)
Price unavailable
22
Required: 1
TIRE (70/90-17 M/C 38P D104 J)
Price unavailable
23
Required: 1
TUBE (70/90-17 TR4)
Price unavailable
23
Required: 1
TUBE (80/90-17 TR4)
Price unavailable
24
Required: 1
BAND, RIM (1.40-17)
Price unavailable
24
Required: 1
BAND, RIM (70/90-17)
Price unavailable
25
Required: 1
RIM (1.40-17)
Price unavailable
517 F. WHEEL COLLAR
26
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
27
Required: 1
COVER, HUB DUST
Price unavailable
28
Required: 1
AXLE, WHEEL
Price unavailable
Self-Locking Nut
29
Yamaha Motors
Self-Locking Nut90185-10091-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plain Washer
30
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
