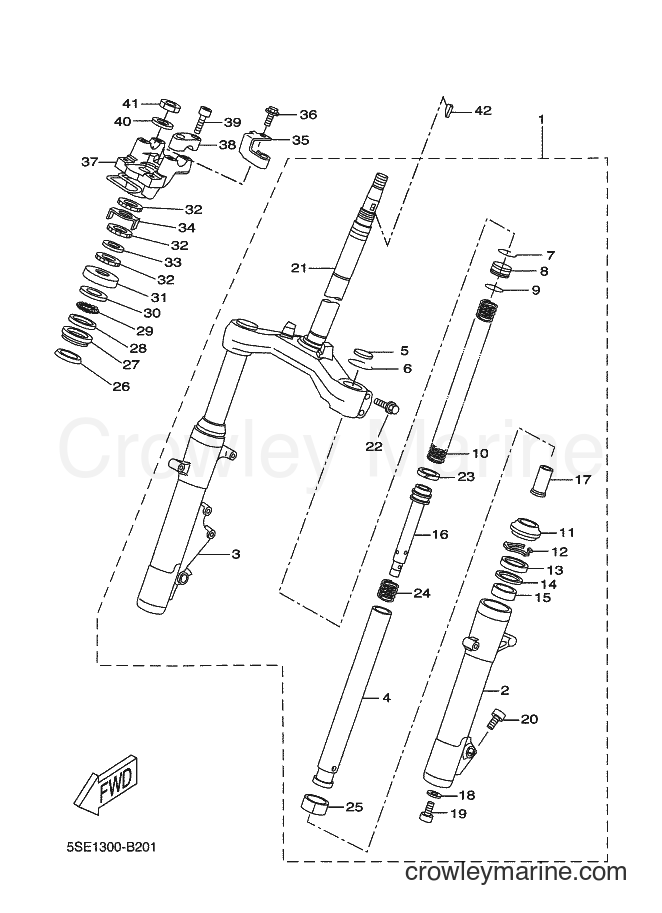

2002 Scooter VP300 - VP300 (5SE1) [040] STEERING diagram
![Yamaha Motors VP300 (5SE1) [040] - STEERING](https://cdn.crowleymarine.com/yamaha/nWCNfMvB.png)
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
4
Required: 2
. INNER TUBE COMP.1
Price unavailable
5
Required: 2
. PLUG, INNER TUBE
Price unavailable
6
Required: 2
. RING, SNAP
Price unavailable
7
Required: 2
. CIRCLIP
Price unavailable
8
Required: 2
. BOLT, CAP
Price unavailable
9
Required: 2
. GASKET
Price unavailable
10
Required: 2
. SPRING, FRONT FORK
Price unavailable
11
Required: 2
. SEAL, DUST
Price unavailable
12
Required: 2
. CLIP, OIL SEAL
Price unavailable
13
Required: 2
. OIL SEAL
Price unavailable
14
Required: 2
. WASHER, OIL SEAL
Price unavailable
15
Required: 2
. METAL, SLIDE 1
Price unavailable
16
Required: 2
. CYLINDER COMP., FRONT FORK
Price unavailable
17
Required: 2
. SPINDLE, TAPER
Price unavailable
18
Required: 2
. WASHER, FELT
Price unavailable
19
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
20
Required: 2
. BOLT, AXLE HOLDER
Price unavailable
21
Required: 1
. UNDER BRACKET COMP.
Price unavailable
22
Required: 4
. BOLT, SPECIAL
Price unavailable
23
Required: 2
. RING, PISTON
Price unavailable
24
Required: 2
. SPRING, PISTON
Price unavailable
25
Required: 2
. METAL, SLIDE 2
Price unavailable
26
Required: 1
SEAL, STEERING
Price unavailable
27
Required: 1
BEARING
Price unavailable
28
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
$7.22
You save $1.27
29
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 1
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
$13.17
You save $2.32
30
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
$10.62
You save $1.87
31
Required: 1
COVER, BALL RACE 2
Price unavailable
32
Required: 3
NUT
Price unavailable
33
Required: 1
WASHER, PLATE
Price unavailable
34
Required: 1
WASHER, SPECIAL
Price unavailable
35
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
36
Yamaha Motors
Binding Screw90154-06X01-00
Required: 1
SCREW, BINDING
$3.15
You save $0.56
37
Required: 1
HOLDER, HANDLE LOWER
Price unavailable
38
Yamaha Motors
UPPER HANDLE HOLDER4H7-23441-01-98
Required: 2
HOLDER, HANDLE UPPER
$38.24
You save $6.75
$8.07
You save $1.42
40
Required: 1
WASHER, PLATE
Price unavailable
$5.09
You save $0.90
42
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
