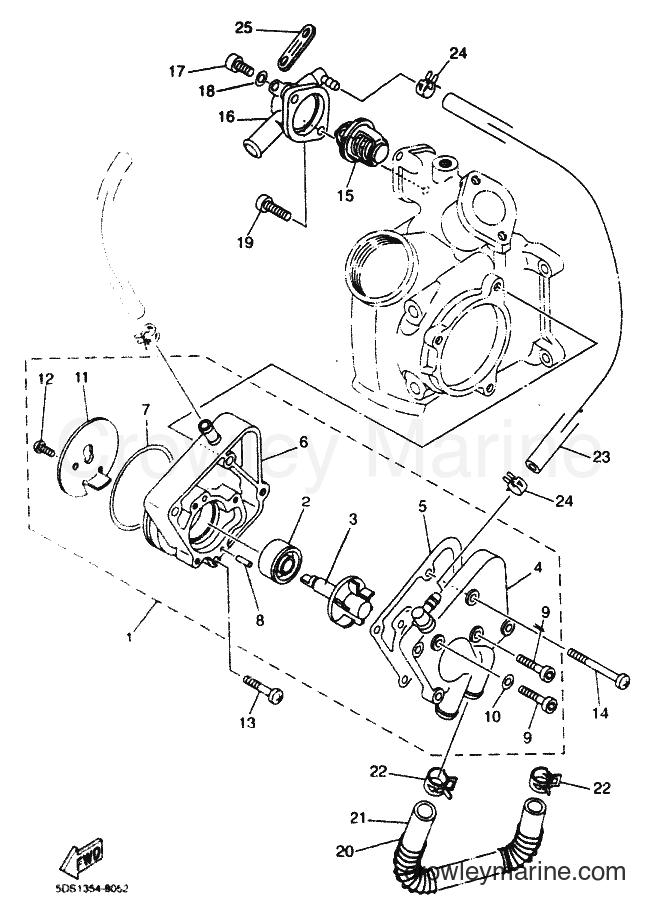

2000 Scooter YP125E - YP125E (5DSL) [010] WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125E (5DSL) [010] - WATER PUMP
Change View:
1
Required: 1
WATER PUMP ASSY
Price unavailable
SW-TYPE OIL SEAL
2
Yamaha Motors
SW-TYPE OIL SEAL93103-10168-00
Required: 1
･OIL SEAL
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
3
Required: 1
･IMPELLER SHAFT ASSY
Price unavailable
4
Required: 1
･COVER, HOUSING
Price unavailable
5
Required: 1
･GASKET, HOUSING COVER 2
Price unavailable
6
Required: 1
･COVER, CYLINDER HEAD SIDE 1
Price unavailable
7
Required: 1
･O-RING
Price unavailable
8
Required: 2
･PIN, DOWEL
Price unavailable
9
Required: 4
･BOLT
Price unavailable
10
Required: 1
･GASKET
Price unavailable
11
Required: 1
･PLATE
Price unavailable
12
Required: 1
･SCREW, PAN HEAD
Price unavailable
Bind Screw
13
Yamaha Motors
Bind Screw98907-06025-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98902-06025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 2
SCREW, PAN HEAD
Price unavailable
15
Required: 1
THERMOSTAT
Price unavailable
16
Required: 1
COVER, THERMOSTAT
Price unavailable
Flange Bolt
17
Yamaha Motors
Flange Bolt95827-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
19
Required: 2
BOLT
Price unavailable
20
Required: 1
SPRING, COMPRESSION
Price unavailable
21
Required: 1
PIPE 7
Price unavailable
Scissor Clip
22
Yamaha Motors
Scissor Clip90467-20050-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
23
Required: 1
HOSE 1
Price unavailable
24
Required: 2
CLIP
Price unavailable
25
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
