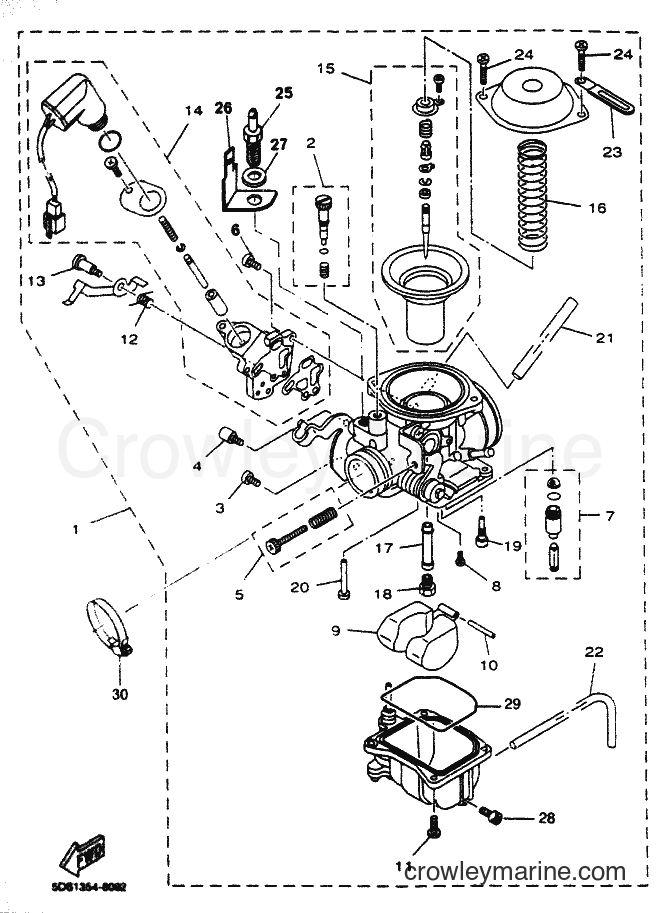

2000 Scooter YP125E - YP125E (5DSJ) [999] CARBURETOR diagram
![Yamaha Motors YP125E (5DSJ) [999] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/s3rH5xGn.png)
1
Required: 1
CARBURETOR ASSY 1
Price unavailable
2
Required: 1
･PILOT SCREW SET
Price unavailable
3
Yamaha Motors
Screw97885-05010-00
Required: 2
･SCREW, PAN HEAD
Supersedes: 97801-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
4
Required: 1
･SCREW
Price unavailable
$8.92
You save $1.57
6
Yamaha Motors
LEVER FITTING SCREW214-24535-00-00
Required: 1
･SCREW, LEVER FITTING
$6.37
You save $1.12
7
Yamaha Motors
Needle Valve Assembly4KL-14390-00-00
Required: 1
･NEEDLE VALVE ASSY
$36.54
You save $6.45
8
Yamaha Motors
Bind Screw98980-04006-00
Required: 1
･SCREW, BIND
Supersedes: 98901-04006-00
$4.55
You save $0.80
$43.34
You save $7.65
10
Required: 1
･PIN, FLOAT
Price unavailable
11
Required: 4
･SCREW, PAN HEAD
Price unavailable
12
Required: 1
･SPRING
Price unavailable
13
Required: 1
･SCREW, ROD
Price unavailable
14
Required: 1
･PRIME STARTER ASSY
Price unavailable
15
Required: 1
･SUCTION PISTON ASSY
Price unavailable
16
Required: 1
･SPRING
Price unavailable
17
Required: 1
･NOZZLE, MAIN
Price unavailable
$8.07
You save $1.42
19
Required: 1
･JET, PILOT
Price unavailable
20
Yamaha Motors
PLUG50M-14355-01-00
Required: 1
･NOZZLE, MAIN 2
Supersedes: 50M-14355-00-00
In stock
Only 5 remaining
$4.04
You save $0.71
21
Required: 1
･PIPE
Price unavailable
22
Required: 1
･PIPE
Price unavailable
23
Yamaha Motors
Wire Holder4KL-14415-00-00
Required: 1
･HOLDER, WIRE
$4.12
You save $0.73
24
Required: 2
･PLUG, DRAIN
Price unavailable
25
Yamaha Motors
HEATER ASSY5FU-83790-01-00
Required: 1
･HEATER ASSY
Supersedes: 4TR-83790-00-00
$29.74
You save $5.25
26
Yamaha Motors
Terminal5FU-82103-00-00
Required: 1
･TERMINAL 1
Supersedes: 3BT-82103-00-00
$7.22
You save $1.27
27
Yamaha Motors
Plain Washer90201-08016-00
Required: 1
･WASHER, PLATE
Supersedes: 90201-085R5-00
$8.07
You save $1.42
28
Required: 1
･PLUG, SCREW
Price unavailable
29
Required: 1
･GASKET, FLOAT CHAMBER
Price unavailable
$2.46
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
