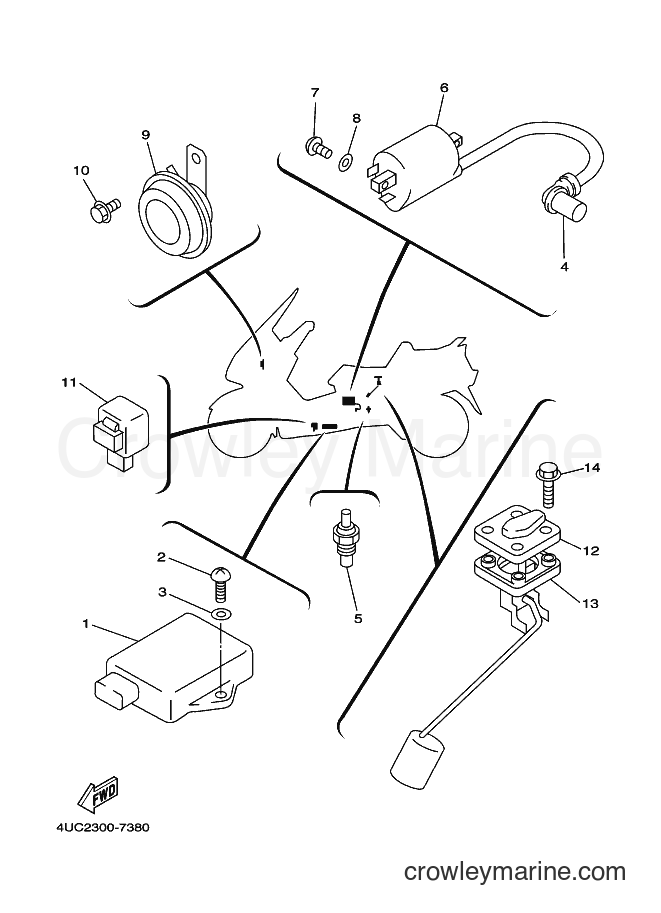

1997 Scooter YP250 - YP250 (4UC2) [070] ELECTRICAL 2 diagram
![Yamaha Motors YP250 (4UC2) [070] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/sjnjYdtV.png)
1
Required: 1
IGNITOR UNIT ASSY
Price unavailable
2
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$2.00
You save $0.35
3
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
4
Yamaha Motors
PLUG CAP ASSY4BP-82370-01-00
Required: 1
PLUG CAP ASSY
Supersedes: 4BP-82370-00-00
$33.14
You save $5.85
$97.74
You save $17.25
6
Required: 1
IGNITION COIL ASSY
Price unavailable
7
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
8
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
9
Yamaha Motors
Horn2KG-83371-00-00
Required: 1
HORN
Supersedes: 3TB-83371-01-00
$79.89
You save $14.10
10
Yamaha Motors
Flange Bolt95817-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$4.67
You save $0.82
11
Yamaha Motors
FLASHER RELAY ASSY3GM-83350-03-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 3GM-83350-01-00
$75.64
You save $13.35
12
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
13
Yamaha Motors
Sender Unit Gasket5G3-85753-00-00
Required: 1
GASKET, SENDER UNIT
$16.14
You save $2.85
14
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
