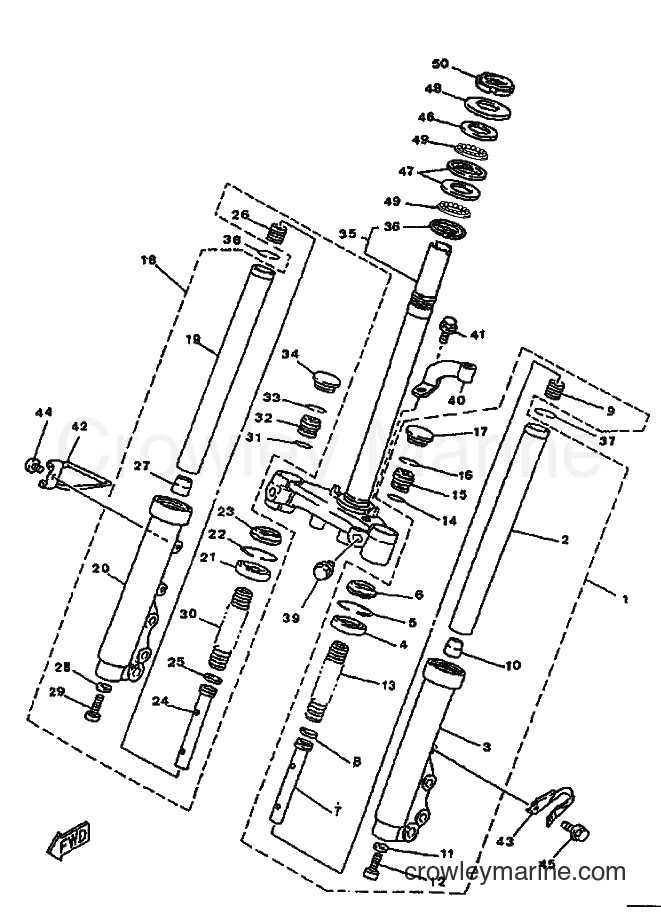

1996 Scooter YA50S - YA50S (4MJ9) [999] FRONT FORK diagram
![Yamaha Motors YA50S (4MJ9) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/K4w9cgaH.png)
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. INNER TUBE COMP.1
Price unavailable
3
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
4
Required: 1
. OIL SEAL
Price unavailable
5
Required: 1
. RING, SNAP
Price unavailable
6
Required: 1
. SEAL, DUST
Price unavailable
7
Required: 1
. PISTON, FRONT FORK
Price unavailable
8
Required: 1
. RING, PISTON
Price unavailable
9
Required: 1
. SPRING, REBOUND
Price unavailable
10
Required: 1
. SPINDLE, TAPER
Price unavailable
11
Required: 1
. WASHER, PLATE
Price unavailable
12
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
. BOLT
Supersedes: 91311-08025-00
$8.07
You save $1.42
13
Required: 1
. SPRING, FRONT FORK
Price unavailable
14
Required: 1
. O-RING
Price unavailable
15
Required: 1
. BOLT, CAP
Price unavailable
16
Required: 1
. CIRCLIP
Price unavailable
17
Required: 1
. CAP
Price unavailable
18
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
19
Required: 1
. INNER TUBE COMP.1
Price unavailable
20
Required: 1
. TUBE, OUTER 2
Price unavailable
21
Required: 1
. OIL SEAL
Price unavailable
22
Required: 1
. RING, SNAP
Price unavailable
23
Required: 1
. SEAL, DUST
Price unavailable
24
Required: 1
. PISTON, FRONT FORK
Price unavailable
25
Required: 1
. RING, PISTON
Price unavailable
26
Required: 1
. SPRING, REBOUND
Price unavailable
27
Required: 1
. SPINDLE, TAPER
Price unavailable
28
Required: 1
. WASHER, PLATE
Price unavailable
29
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
. BOLT
Supersedes: 91311-08025-00
$8.07
You save $1.42
30
Required: 1
. SPRING, FRONT FORK
Price unavailable
31
Required: 1
. O-RING
Price unavailable
32
Required: 1
. BOLT, CAP
Price unavailable
33
Required: 1
. CIRCLIP
Price unavailable
34
Required: 1
. CAP
Price unavailable
35
Required: 1
UNDER BRACKET COMP.
Price unavailable
36
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
. RACE, BALL 4
Supersedes: 22F-23414-01-00
$16.57
You save $2.92
37
Required: 1
RING, SNAP
Price unavailable
38
Required: 1
RING, SNAP
Price unavailable
$2.21
You save $0.39
40
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
41
Yamaha Motors
95816-06012-0095826-06012-00
Required: 1
BOLT HEXAGON
Supersedes: 95806-06012-00
$1.15
You save $0.20
42
Required: 1
HOLDER, CABLE
Price unavailable
43
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
44
Yamaha Motors
Bind Screw98980-06010-00
Required: 1
SCREW, BIND
Supersedes: 98901-06010-00
In stock
Only 1 remaining
$8.92
You save $1.57
$1.49
You save $0.26
46
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
$10.62
You save $1.87
47
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
RACE, BALL 2
Supersedes: 22F-23412-01-00
$7.22
You save $1.27
48
Required: 1
COVER, BALL RACE 2
Price unavailable
49
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 2
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
$13.17
You save $2.32
50
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
$22.94
You save $4.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
