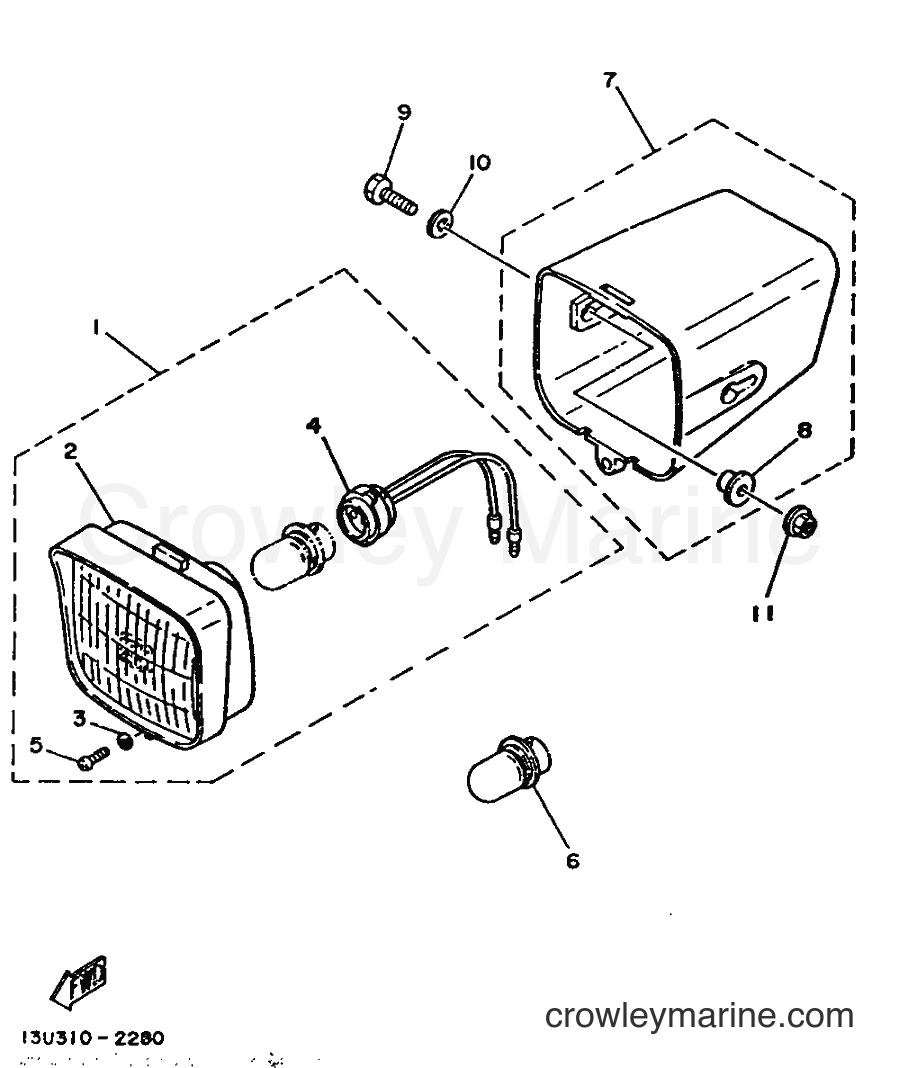

1992 Scooter MA50M - MA50M (2FV) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MA50M (2FV) [999] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. LENS ASSY
Price unavailable
4
Required: 1
. SOCKET
Price unavailable
Tapping Screw
5
Yamaha Motors
Tapping Screw97707-40616-00
Required: 1
. SCREW, PANHEAD TAPPING
Supersedes: 97701-40516-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
6
Required: 1
BULB(7V-18W)
Price unavailable
7
Required: 1
BODY ASSY, HEADLIGHT
Price unavailable
7
Required: 1
BODY ASSY, HEADLIGHT
Price unavailable
BODY FITTING COLLAR
8
Yamaha Motors
BODY FITTING COLLAR1M3-84145-01-00
Required: 2
. COLLAR, BODY FITTING
Cross Ship
Leaves in 2-5 days
$2.37
$2.01
You save $0.36
More details
Bolt
9
Yamaha Motors
Bolt97013-08020-00
Required: 2
BOLT
Supersedes: 97313-08020-00
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
