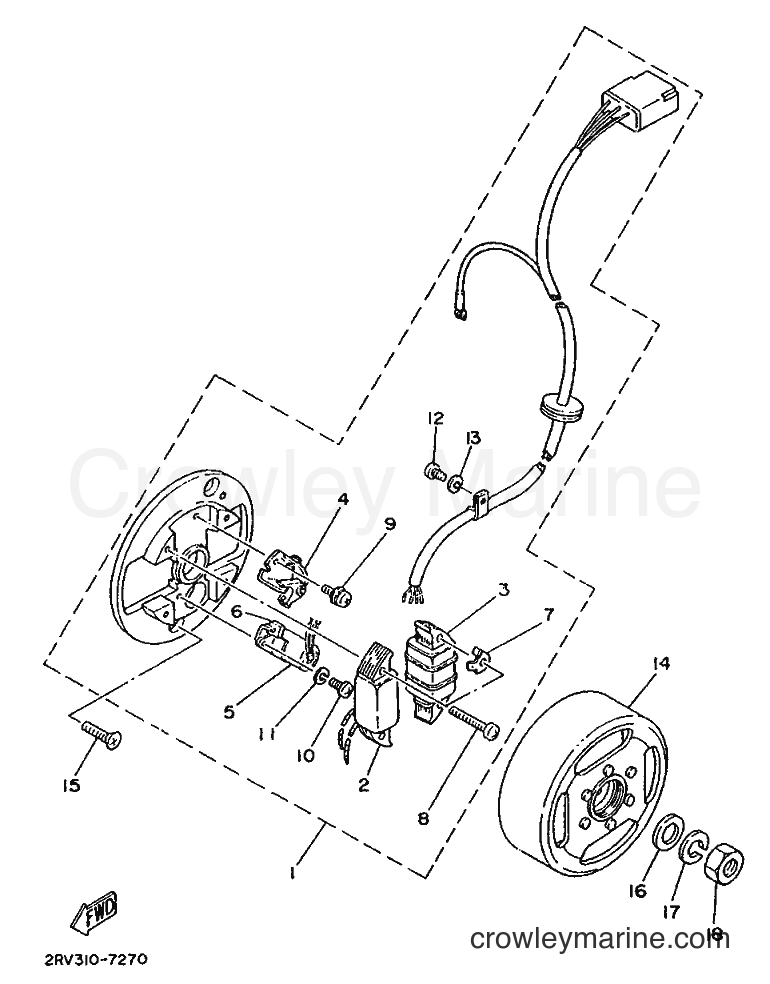

1987 Scooter FS1 - FS1 (2RV) [999] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FS1 (2RV) [999] - GENERATOR
Change View:
1
Required: 1
BASE ASSY
Price unavailable
2
Required: 1
. COIL, SOURCE
Price unavailable
3
Required: 1
. COIL, LIGHTING 1
Price unavailable
Contact Breaker Assembly
4
Yamaha Motors
Contact Breaker Assembly1V1-81321-90-00
Required: 1
. CONTACT BREAKER ASSY
Supersedes: 1V1-81321-20-00
Cross Ship
Leaves in 2-5 days
$79.99
$67.99
You save $12.00
More details
5
Required: 1
. CONDENSER 1
Price unavailable
6
Required: 1
. LUBRICATOR
Price unavailable
7
Required: 1
. PLATE, TIMING
Price unavailable
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98517-04025-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98511-04025-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
9
Required: 1
. SCREW, WITH WASHER
Price unavailable
12
Required: 1
. SCREW, PAN HEAD
Price unavailable
14
Required: 1
ROTOR ASSY
Price unavailable
Flat Screw
15
Yamaha Motors
Flat Screw98707-05016-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 98701-05016-00
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
Plate Washer
16
Yamaha Motors
Plate Washer90201-12535-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Spring Washer
17
Yamaha Motors
Spring Washer92990-12100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-12100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Hexagon Nut
18
Yamaha Motors
Hexagon Nut90170-12175-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
