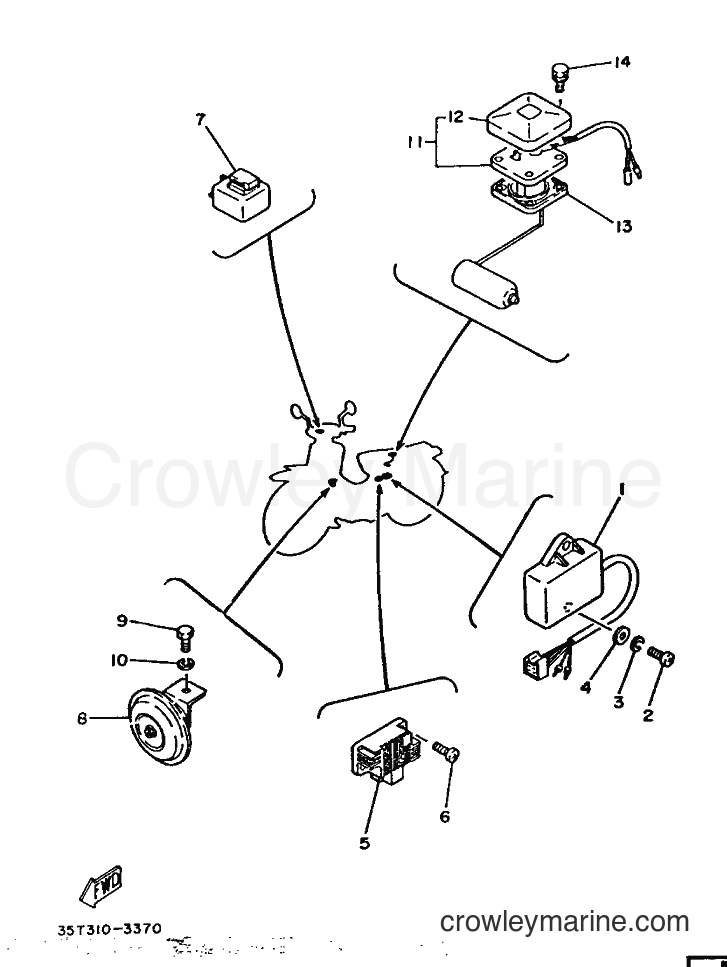

1986 Scooter T80 - T80 (2FL) [999] ELECTRICAL 2 diagram
![Yamaha Motors T80 (2FL) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/vItof7Jr.png)
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06020-00
In stock
Only 1 remaining
$7.59
You save $1.90
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.76
You save $0.69
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
5
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
5
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
6
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
$0.98
You save $0.17
7
Required: 1
FLASHER RELAY ASSY
Price unavailable
8
Required: 1
HORN
Price unavailable
-50%
9
Yamaha Motors
Bolt97013-06012-00
Required: 1
BOLT
Supersedes: 97302-06012-00
In stock
Only 1 remaining
$3.25
You save $3.25
10
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.76
You save $0.69
11
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
12
Required: 1
. COVER
Price unavailable
13
Yamaha Motors
Sender Unit Gasket5G3-85753-00-00
Required: 1
GASKET, SENDER UNIT
$16.14
You save $2.85
14
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
