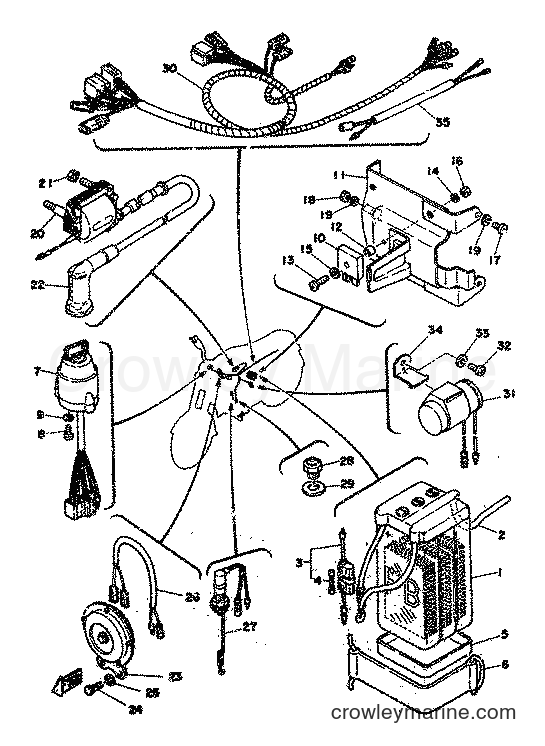

1978 Scooter FS1DX - FS1DX (2G1) [998] ELECTRICAL diagram
![Yamaha Motors FS1DX (2G1) [998] - ELECTRICAL](https://cdn.crowleymarine.com/yamaha/9wn5QFPi.png)
1
Required: 1
BATTERY ASSY
Price unavailable
1
Required: 1
BATTERY ASSY
Price unavailable
$10.19
You save $1.80
3
Yamaha Motors
55K-82150-01-0055K-82150-00-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 116-82150-00-00
$11.47
You save $2.02
$15.29
You save $2.70
5
Yamaha Motors
BATTERY SEAT104-82122-00-00
Required: 1
SEAT, BATTERY
$1.00
You save $0.18
6
Required: 1
BAND, BATTERY
Price unavailable
7
Required: 1
MAIN SWITCH ASSY
Price unavailable
8
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
$0.98
You save $0.17
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
In stock
Only 5 remaining
$0.30
You save $0.05
10
Yamaha Motors
RECTIFIER ASSY353-81970-M1-00
Required: 1
RECTIFIER ASSY
Supersedes: 353-81970-50-00
$15.29
You save $2.70
10
Yamaha Motors
RECTIFIER ASSY353-81970-M1-00
Required: 1
RECTIFIER ASSY
Supersedes: 353-81970-63-00
$15.29
You save $2.70
11
Required: 1
PLATE, RECTIFIER FITTING
Price unavailable
12
Required: 1
COLLAR, RECTIFIER
Price unavailable
13
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
14
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-05100-00
In stock
Only 5 remaining
$0.30
You save $0.05
15
Yamaha Motors
Plain Washer92990-05200-00
Required: 1
WASHER, PLAIN
Supersedes: 92901-05200-00
In stock
Only 1 remaining
$4.25
You save $0.75
16
Yamaha Motors
Nut95303-05600-00
Required: 1
NUT
Supersedes: 95301-05600-00
$1.66
You save $0.29
17
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.49
You save $0.62
In stock
5+ in stock
$4.08
You save $0.72
19
Yamaha Motors
Spring Washer92995-06100-00
Required: 3
WASHER, SPRING
Supersedes: 92901-06100-00
In stock
5+ in stock
$2.93
You save $0.52
20
Yamaha Motors
IGNITION COIL ASSEMBLY355-82310-40-00
Required: 1
IGNITION COIL ASSY
$180.19
You save $31.80
In stock
5+ in stock
$4.08
You save $0.72
$30.59
You save $5.40
$62.04
You save $10.95
$0.81
You save $0.14
25
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-06100-00
In stock
5+ in stock
$2.93
You save $0.52
26
Required: 1
LEAD, HORN
Price unavailable
27
Yamaha Motors
Stop Switch Assembly122-82530-02-00
Required: 1
STOP SWITCH ASSY
Supersedes: 122-82530-00-00
$33.14
You save $5.85
28
Yamaha Motors
136-82540-02-00136-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$14.44
You save $2.55
29
Yamaha Motors
Plate Washer90201-12790-00
Required: 1
GASKET
Supersedes: 90430-11034-00
$8.92
You save $1.57
30
Required: 1
WIRE HARNESS ASSY
Price unavailable
31
Required: 1
FLASHER RELAY ASSY
Price unavailable
32
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.49
You save $0.62
33
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-06100-00
In stock
5+ in stock
$2.93
You save $0.52
34
Required: 1
BRACKET, FLASHER RELAY 1
Price unavailable
35
Required: 1
WIRE, LEAD
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
