1978 Scooter FS1DX - FS1DX (2G1) [998] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

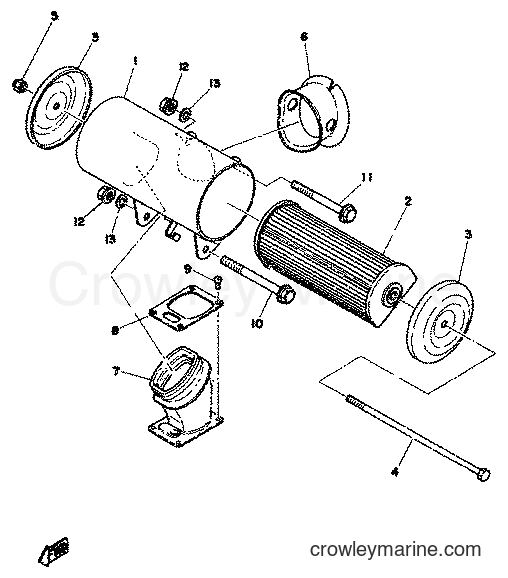

Yamaha Motors FS1DX (2G1) [998] - INTAKE
Change View:
1
Required: 1
AIR CLEANER CASE ASSY
Price unavailable
2
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
CLEANER CASE CAP 1
3
Yamaha Motors
CLEANER CASE CAP 1122-14412-00-00
Required: 2
CAP, CLEANER CASE 1
Cross Ship
Leaves in 2-5 days
$1.59
$1.35
You save $0.24
More details
HEXAGON BOLT
4
Yamaha Motors
HEXAGON BOLT97301-06185-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$1.78
$1.51
You save $0.27
More details
Crown Nut
5
Yamaha Motors
Crown Nut95303-06800-00
Required: 1
NUT, CROWN
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
6
Required: 1
JOINT
Price unavailable
7
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
Cover
8
Yamaha Motors
Cover257-14417-00-00
Required: 1
COVER 1
Cross Ship
Leaves in 2-5 days
$0.01
$0.01
You save $0.00
More details
Screw
9
Yamaha Motors
Screw98580-04008-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98501-04008-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
95817-08100-00
10
Yamaha Motors
95817-08100-0095811-08100-00
Required: 1
BOLT, FLANGE
Supersedes: 95821-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
BOLT, FLANGE
Price unavailable
Spring Washer
13
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-08100-00
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
