All diagrams for this model

Various Years Rigging Rigging - Rigging 2007 INSTRUMENTS DIGITAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

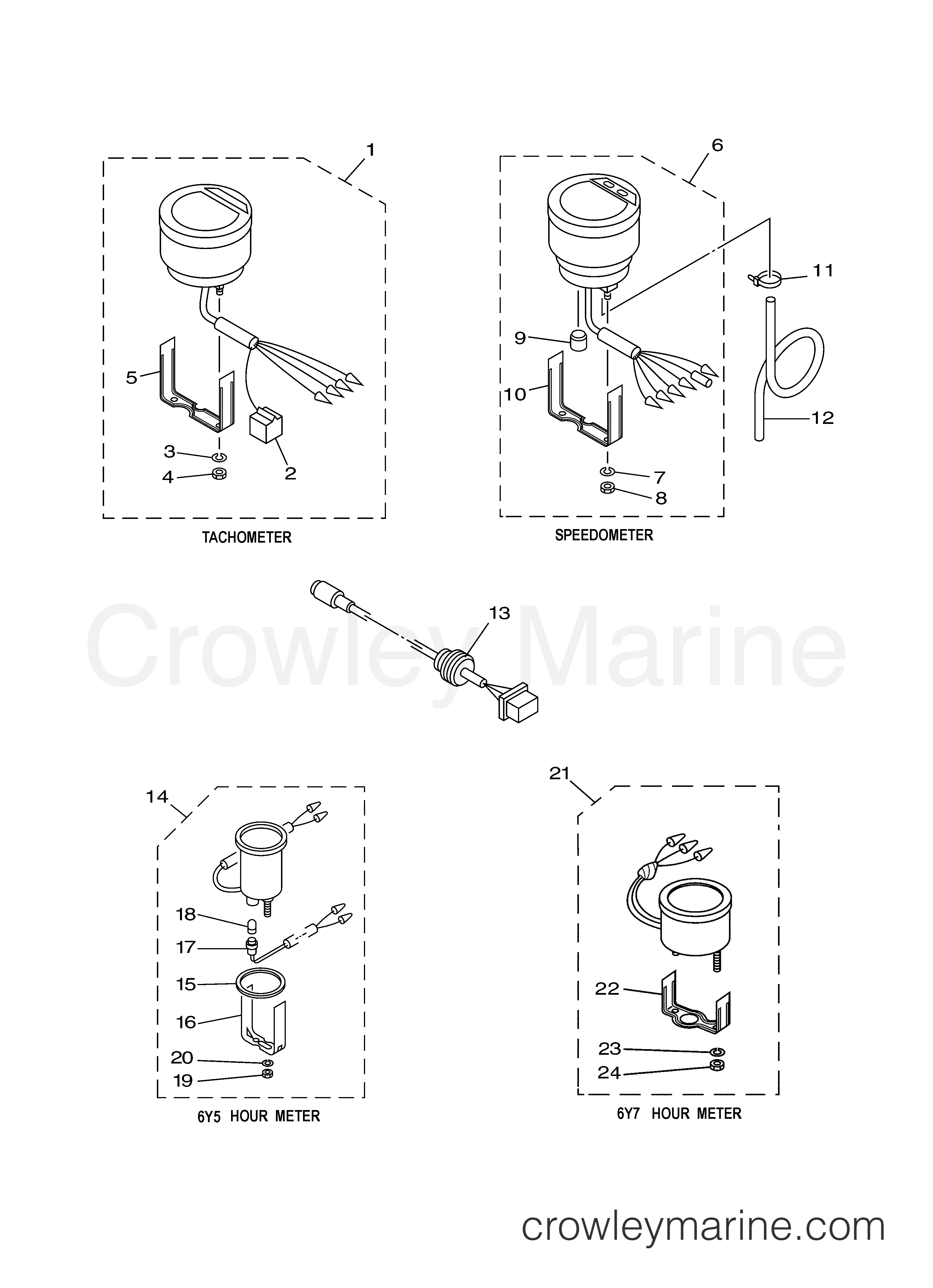

Yamaha Motors Rigging 2007 - INSTRUMENTS DIGITAL 1
Change View:
TACHOMETER ASSY
1
Yamaha Motors
TACHOMETER ASSY6Y5-8350T-D2-00
Required: 1
TACHOMETER ASSY
Supersedes: 6Y5-8350T-82-00
Cross Ship
Leaves in 2-5 days
$341.00
$289.85
You save $51.15
More details
Connector
2
Yamaha Motors
Connector9E450-04533-00
Required: 1
.CONNECTOR
Cross Ship
Leaves in 2-5 days
$13.65
$11.60
You save $2.05
More details
Meter Bracket
5
Yamaha Motors
Meter Bracket6Y5-8355X-T1-00
Required: 1
.BRACKET, METER 1
Cross Ship
Leaves in 2-5 days
$17.75
$15.09
You save $2.66
More details
METER ASSY.
6
Yamaha Motors
METER ASSY.6Y5-83570-A3-00
Required: 1
SPEEDOMETER ASSY
Supersedes: 6Y5-83570-S5-00
Cross Ship
Leaves in 2-5 days
$419.00
$356.15
You save $62.85
More details
Meter Bracket
10
Yamaha Motors
Meter Bracket6Y5-8355X-T1-00
Required: 1
.BRACKET, METER 1
Cross Ship
Leaves in 2-5 days
$17.75
$15.09
You save $2.66
More details
Tube
12
Yamaha Motors
Tube6Y5-83557-10-00
Required: 1
TUBE (8M)
Cross Ship
Leaves in 2-5 days
$12.25
$10.41
You save $1.84
More details
Cord Assembly
13
Yamaha Motors
Cord Assembly6Y5-87122-S0-00
Required: 1
CORD ASSY 1
Cross Ship
Leaves in 2-5 days
$21.80
$18.53
You save $3.27
More details
HOUR METER ASSY
14
Yamaha Motors
HOUR METER ASSY6Y5-83504-12-00
Required: 1
HOUR METER
Supersedes: 6Y5-83504-11-00
Cross Ship
Leaves in 2-5 days
$293.00
$249.05
You save $43.95
More details
Damper
15
Yamaha Motors
Damper688-83664-00-00
Required: 1
.DAMPER
Cross Ship
Leaves in 2-5 days
$6.60
$5.61
You save $0.99
More details
Fitting Plate
16
Yamaha Motors
Fitting Plate6Y5-83577-00-00
Required: 1
.PLATE, FITTING
Cross Ship
Leaves in 2-5 days
$11.50
$9.78
You save $1.72
More details
Meter Socket
17
Yamaha Motors
Meter Socket6Y5-83536-00-00
Required: 1
.SOCKET, METER
Cross Ship
Leaves in 2-5 days
$13.50
$11.47
You save $2.03
More details
Pro Series II Hour Meter
21
Yamaha Motors
Pro Series II Hour Meter6Y7-83504-10-00
Required: 1
HOUR METER ASSY
Cross Ship
Leaves in 2-5 days
$151.00
$128.35
You save $22.65
More details
Meter Bracket
22
Yamaha Motors
Meter Bracket6Y5-8355X-H0-00
Required: 1
.BRACKET, METER 1
Cross Ship
Leaves in 2-5 days
$14.75
$12.54
You save $2.21
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
