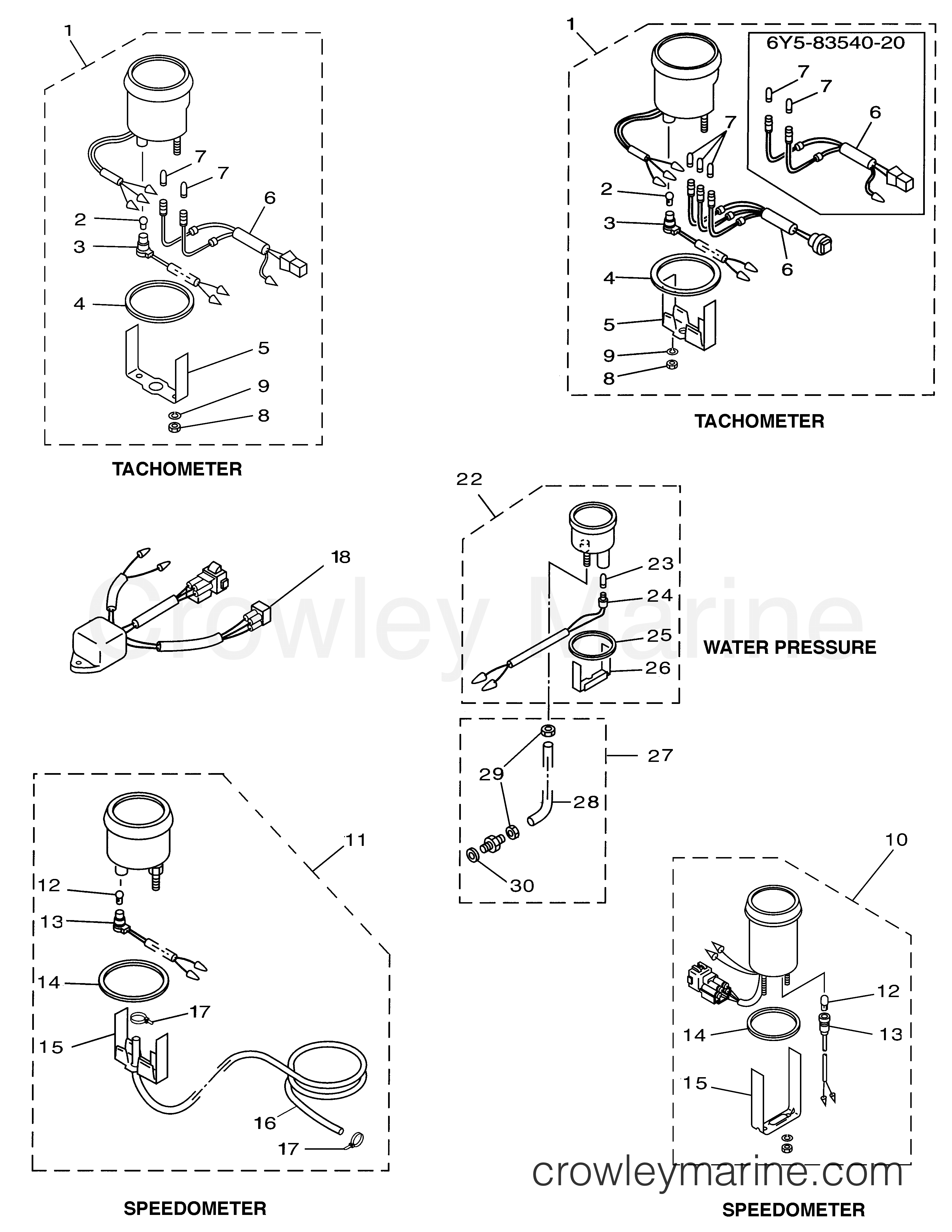

Various Years Rigging Rigging - Rigging 2006 INSTRUMENTS ANALOGUE diagram

1
Yamaha Motors
Pro Tachometer Assembly6Y5-83540-14-00
Required: 1
PRO TACHOMETER ASSY WO OIL
$178.50
You save $31.50

1
Yamaha Motors
TACHOMETER ASSY6Y5-83540-07-00
Required: 1
PRO TACHOMETER ASSY WOIL
Supersedes: 6Y5-83540-05-00
$202.30
You save $35.70

1
Yamaha Motors
TACHOMETER ASSY6Y5-83540-22-00
Required: 1
FOURSTROKE 50 TACHOMETER
Supersedes: 6Y5-83540-20-00
$244.80
You save $43.20

1
Yamaha Motors
PRO SERIES II TACH BLK6Y7-83540-81-00
Required: 1
PRO SERIES 11 TACHOMETER W/OIL (BLACK)
Supersedes: 6Y7-83540-60-00
$128.35
You save $22.65

1
Yamaha Motors
TACHOMETER ASSY6Y7-83540-92-00
Required: 1
PRO SERIES 11 TACHOMETER W/OIL (WHITE)
Supersedes: 6Y7-83540-70-00
In stock
Only 1 remaining
$436.05
You save $76.95

2
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 1
.BULB (T10, 12V-17W)
Supersedes: 6Y5-83517-00-00
$7.22
You save $1.27

3
Yamaha Motors
Meter Socket6Y5-83536-10-00
Required: 1
.SOCKET, METER
$20.95
You save $3.70
$7.73
You save $1.37

5
Yamaha Motors
Fitting Plate6Y5-83514-00-00
Required: 1
.PLATE, FITTING
$14.88
You save $2.63

6
Yamaha Motors
Socket Cord Assembly6Y5-83509-04-00
Required: 1
.SOCKET CORD ASSY
Supersedes: 6Y5-83509-03-00
$32.55
You save $5.75

7
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 3
.BULB (12V-17W T65)
Supersedes: 6Y5-83518-00-00
$8.07
You save $1.42

8
Yamaha Motors
Nut95380-05600-00
Required: 2
.NUT
Supersedes: 95303-05600-00
In stock
Only 5 remaining
$8.07
You save $1.42

9
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
..WASHER, SPRING
Supersedes: 92903-05100-00
In stock
Only 5 remaining
$0.30
You save $0.05

10
Yamaha Motors
TRIM METER ASSY.6Y5-83670-14-00
Required: 1
TRIM METER ASSY
Supersedes: 6Y5-83670-12-00
$259.25
You save $45.75

10
Yamaha Motors
Pro Series 11 Trim Meter (White)6Y5-83670-30-00
Required: 1
PRO SERIES 11 TRIM METER (WHITE)
No longer availableSearch Nationwide Inventory
Price unavailable
10
Yamaha Motors
Pro Series 11 Trim Meter (Black)6Y5-83670-10-00
Required: 1
PRO SERIES 11 TRIM METER (BLACK)
$147.14
You save $25.97

11
Yamaha Motors
Pro Series II Tachometer6Y7-83510-10-00
Required: 1
SPEEDOMETER ASSY (75MPH)
$113.90
You save $20.10

11
Yamaha Motors
SPEEDOMETER ASSY (75MPH)6Y5-83510-01-00
Required: 1
SPEEDOMETER (0-75M)
Supersedes: 6Y5-83510-00-00
$266.05
You save $46.95

11
Yamaha Motors
Speedometer Assembly6Y5-83510-11-00
Required: 1
PRO SERIES II SPEEDOMETER (0-75MPH)
Supersedes: 6Y5-83510-10-00
$134.30
You save $23.70

11
Yamaha Motors
Pro Series II Tachometer6Y7-83510-00-00
Required: 1
SPEEDOMETER ASSY (75MPH)
$110.50
You save $19.50

12
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 1
.BULB (12V-17W T65)
Supersedes: 6Y5-83518-00-00
$8.07
You save $1.42

13
Yamaha Motors
Meter Socket6Y5-83536-00-00
Required: 1
.SOCKET, METER
$11.47
You save $2.03
$5.61
You save $0.99

15
Yamaha Motors
Fitting Plate6Y5-83544-00-00
Required: 1
.PLATE, FITTING
$11.94
You save $2.11

16
Yamaha Motors
Tube6Y5-83557-10-00
Required: 1
.TUBE
Supersedes: 688-83557-00-00
$10.41
You save $1.84

17
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
$102.85
You save $18.15

19
Yamaha Motors
FUEL METER ASSY6Y7-W8575-12-00
Required: 1
FUEL METER ASSY
Supersedes: 6Y7-85750-10-00
$243.95
You save $43.05

19
Yamaha Motors
PRO SERIES II FUEL METER (WHT)6Y7-85750-31-00
Required: 1
FUEL METER ASSY
Supersedes: 6Y7-85750-30-00
$67.15
You save $11.85
$97.75
You save $17.25

20
Yamaha Motors
VOLTMETER ASSY6Y5-83503-01-00
Required: 1
VOLT METER
Supersedes: 6Y5-83503-00-00
$120.70
You save $21.30
$97.75
You save $17.25

21
Yamaha Motors
WATER TEMPERATURE6Y5-83590-01-00
Required: 1
WATER TEMP METER
Supersedes: 6Y5-83590-00-00
$130.90
You save $23.10

22
Yamaha Motors
Pro Series II Water Pressure6Y7-83660-30-00
Required: 1
WATER PRESSURE METER ASSY
$93.50
You save $16.50

22
Yamaha Motors
Pro Series II Water Pressure6Y7-83660-10-00
Required: 1
WATER PRESSURE METER ASSY
$93.50
You save $16.50

23
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 1
.BULB (12V-17W T65)
Supersedes: 6Y5-83518-00-00
$8.07
You save $1.42

24
Yamaha Motors
Meter Socket6Y5-83536-00-00
Required: 1
.SOCKET, METER
$11.47
You save $2.03
$5.61
You save $0.99

26
Yamaha Motors
Fitting Plate688-83665-00-00
Required: 1
.PLATE, FITTING
$10.45
You save $1.85
$38.25
You save $6.75
$18.53
You save $3.27
$9.10
You save $1.61
In stock
Only 2 remaining
$2.55
You save $0.45

31
Yamaha Motors
PRO SERIES II WTR TEMP (BLK)6Y7-83590-01-00
Required: 1
WATER TEMPERATURE ASSY
Supersedes: 6Y7-83590-00-00
$84.15
You save $14.85

31
Yamaha Motors
PRO SERIES II WTR TEMP (WHT)6Y7-83590-11-00
Required: 1
WATER TEMPERATURE ASSY
Supersedes: 6Y7-83590-10-00
$84.15
You save $14.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
