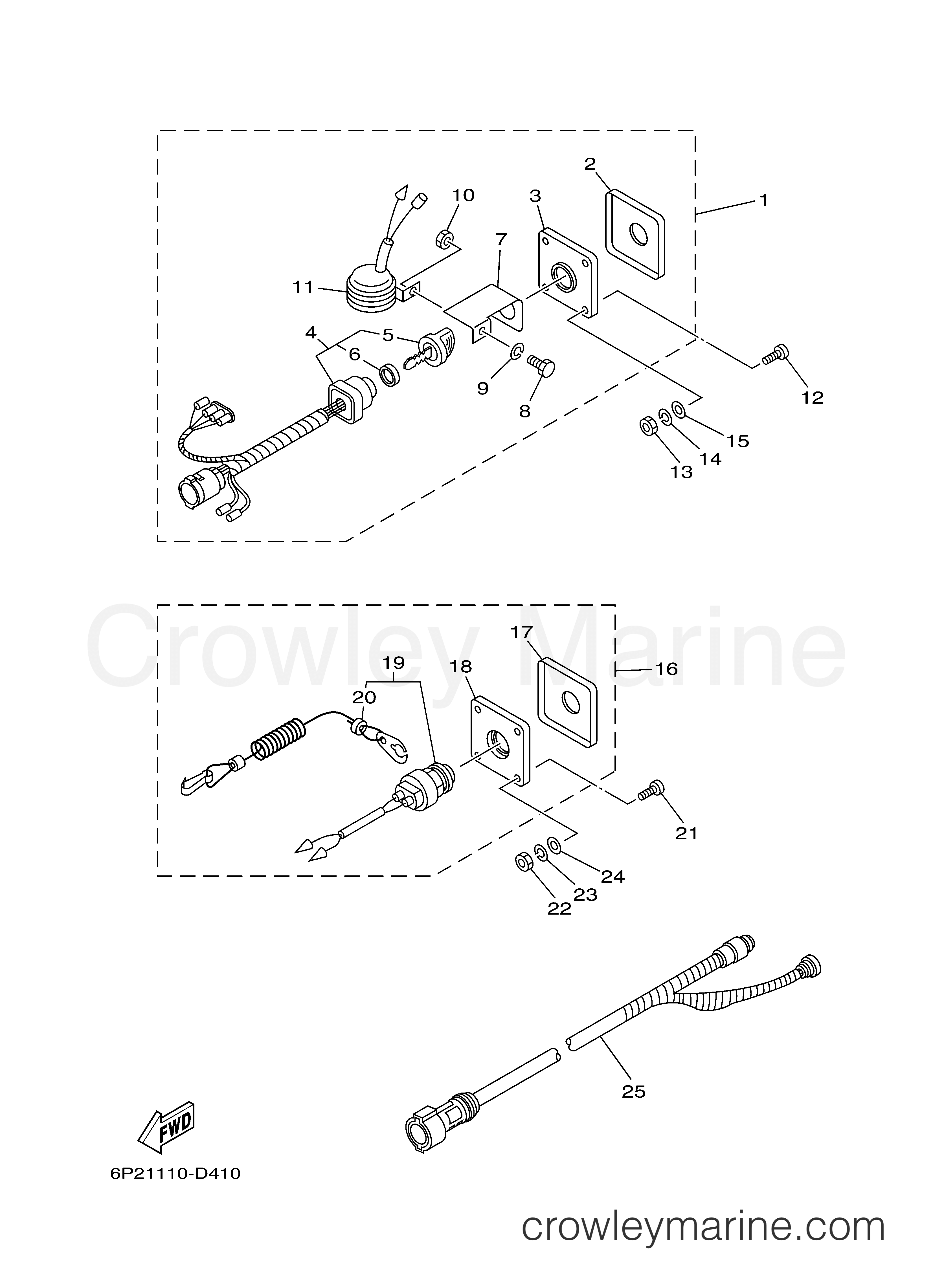

Various Years Rigging Rigging - Rigging 2005 ELECTRICAL SWITCH PANEL INDIVIDUAL diagram
1
Yamaha Motors
Panel Switch Assembly64D-82570-05-00
Required: 1
PANEL SWITCH ASSY
Supersedes: 64D-82570-03-00
$238.00
You save $42.00
2
Yamaha Motors
Switch Panel64D-82571-00-00
Required: 1
..PANEL, SWITCH
$24.57
You save $4.34
$12.54
You save $2.21
4
Yamaha Motors
Main Switch Assembly TE, TP64D-82510-05-00
Required: 1
..MAIN SWITCH ASSY
Supersedes: 64D-82510-03-00
$210.08
You save $37.07
5
Yamaha Motors
Key Cap703-82577-00-00
Required: 1
....CAP, KEY
In stock
Only 1 remaining
$7.52
You save $1.33
In stock
5+ in stock
$4.72
You save $0.83
7
Yamaha Motors
Cord Clamp Stator Assembly64D-82581-00-00
Required: 1
..STAY, CORD CLAMP
$21.25
You save $3.75
8
Yamaha Motors
BOLT97080-05012-00
Required: 1
..BOLT
Supersedes: 97303-05012-00
$0.76
You save $0.14
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
..WASHER, SPRING
Supersedes: 92903-05100-00
In stock
Only 5 remaining
$0.30
You save $0.05
In stock
5+ in stock
$4.68
You save $0.83
11
Yamaha Motors
Buzzer688-83383-12-00
Required: 1
..BUZZER
Supersedes: 688-83383-11-00
In stock
Only 1 remaining
$53.42
You save $9.43
In stock
Only 1 remaining
$2.72
You save $0.48
In stock
Only 5 remaining
$8.07
You save $1.42
14
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
15
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
16
Yamaha Motors
PANEL SWITCH ASSY64D-82570-11-00
Required: 1
PANEL SWITCH ASSY
Supersedes: 64D-82570-10-00
$124.10
You save $21.90
17
Yamaha Motors
.PANEL, SWITCH64D-82571-10-00
Required: 1
..PANEL, SWITCH
$14.11
You save $2.49
$8.63
You save $1.52
19
Yamaha Motors
ENGINE STOP SWITCH64D-82575-01-00
Required: 1
..ENGINE STOP SWITCH ASSY
Supersedes: 64D-82575-00-00
$53.72
You save $9.48
20
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
..LANYARD, STOP SWITCH
In stock
5+ in stock
$6.97
You save $1.23
In stock
Only 1 remaining
$2.72
You save $0.48
In stock
Only 5 remaining
$8.07
You save $1.42
23
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
24
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
25
Yamaha Motors
Obsolete Yamaha Part688-8258A-60-00
Required: 1
EXTENSION, WIRE HARNESS (6M)
Supersedes: 6X3-8258A-10-00
In stock
Only 1 remaining
$133.45
You save $23.55
25
Yamaha Motors
(5M) Wire Harness Extension688-8258A-50-00
Required: 1
EXTENSION, WIRE HARNESS (5M)
Supersedes: 6X3-8258A-00-00
$119.85
You save $21.15
25
Yamaha Motors
EXTENSION, WIRE HA61B-8258A-02-00
Required: 1
EXTENSION, WIRE HARNESS (9.5M)
Supersedes: 61B-8258A-01-00
$192.10
You save $33.90
25
Yamaha Motors
EXTENSION, WIRE HA6K1-8258A-41-00
Required: 1
EXTENSION, WIRE HARNESS (8M)
Supersedes: 6K1-8258A-40-00
$150.45
You save $26.55
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
