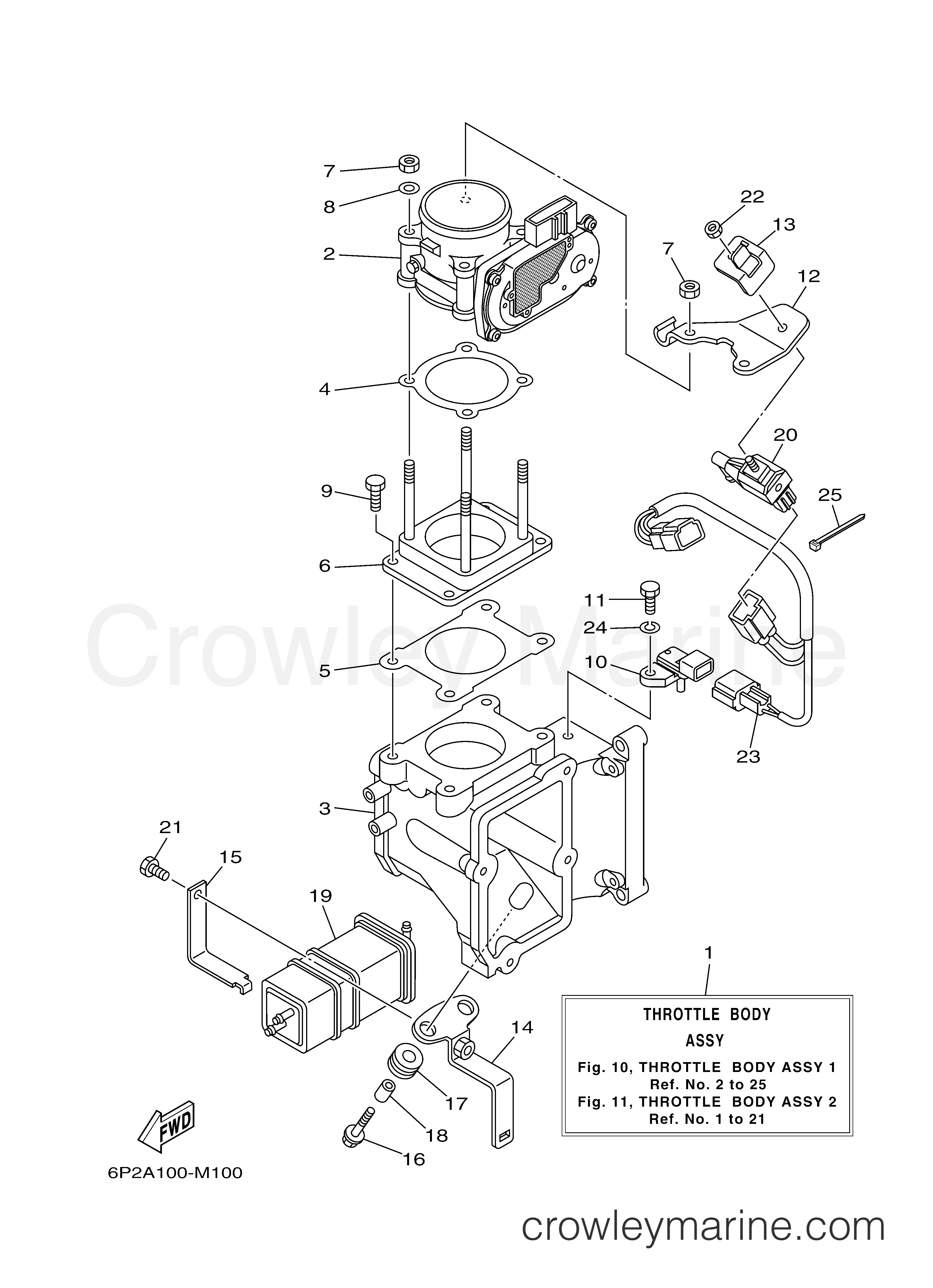

2014 Outboard 250hp - LF250XA THROTTLE BODY ASSY 1 diagram

1
Yamaha Motors
THROTTLE BODY ASSY6P2-13750-15-00
Required: 1
THROTTLE BODY ASSY
Supersedes: 6P2-13750-10-00
$1677.64
You save $296.06

2
Yamaha Motors
BODY, THROTTLE 16P2-13751-04-00
Required: 1
BODY, THROTTLE 1
Supersedes: 6P2-13751-01-00
$990.21
You save $174.74
$353.30
You save $62.35

4
Yamaha Motors
Manifold Gasket6P2-13556-00-00
Required: 1
GASKET, MANIFOLD
In stock
Only 1 remaining
$197.12
You save $34.78
$260.57
You save $45.98

6
Yamaha Motors
Throttle Damper Assembly6P2-14360-00-00
Required: 1
THROTTLE DAMPER ASSY
$560.06
You save $98.84

7
Yamaha Motors
NUT6P2-13588-01-00
Required: 4
NUT
Supersedes: 6P2-13588-00-00
$27.19
You save $4.80
$5.99
You save $1.06
$20.95
You save $3.70

10
Yamaha Motors
Pressure Sensor6P2-82380-00-00
Required: 1
SENSOR, PRESSURE
$277.48
You save $48.97
$5.74
You save $1.01
$70.68
You save $12.47
$20.57
You save $3.63

14
Yamaha Motors
Canister Bracket6P2-2134X-00-00
Required: 1
BRACKET, CANISTER
$53.04
You save $9.36
$30.94
You save $5.46
16
Yamaha Motors
Bolt with Washer90119-06289-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M59-00
In stock
Only 2 remaining
$3.10
You save $0.55
In stock
Only 3 remaining
$8.20
You save $1.45
In stock
Only 1 remaining
$2.70
You save $0.48
In stock
Only 1 remaining
$87.80
You save $15.50

20
Yamaha Motors
Solenoid Valve Assembly6C5-86120-00-00
Required: 1
SOLENOID VALVE ASSY
$134.13
You save $23.67
$5.74
You save $1.01
$5.74
You save $1.01

23
Yamaha Motors
Wire Harness Extension6P2-8258A-00-00
Required: 1
EXTENSION, WIRE HARNESS
$187.42
You save $33.08

24
Yamaha Motors
Spring Washer68V-14356-00-00
Required: 1
.WASHER, SPRING
$4.72
You save $0.83
$5.74
You save $1.01
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
