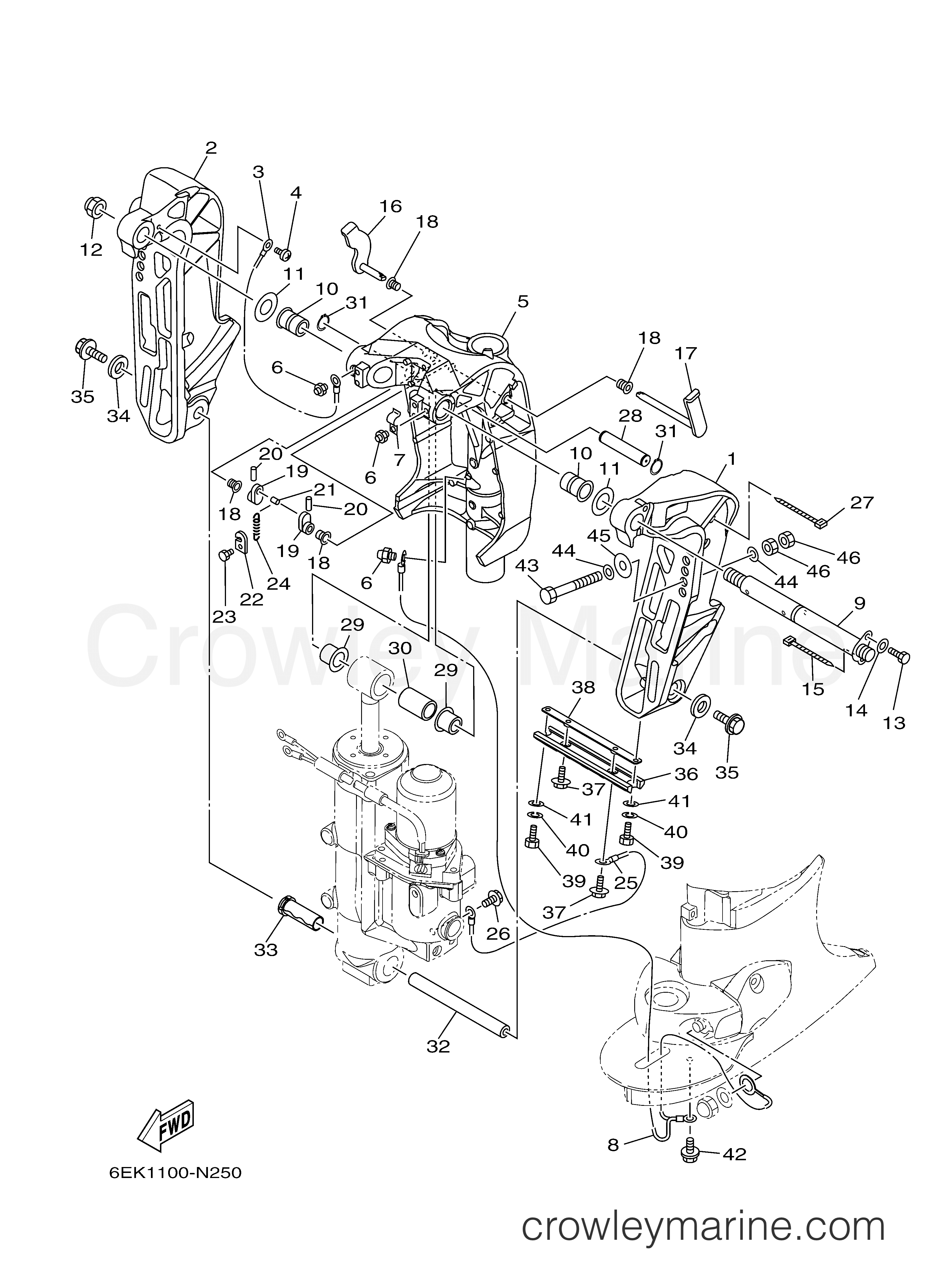

2014 Outboard 115hp - LF115XB BRACKET 1 diagram
1
Yamaha Motors
Clamp Bracket6EK-43111-00-8D
Required: 1
BRACKET, CLAMP 1
$242.42
You save $42.78
2
Yamaha Motors
Clamp Bracket6EK-43112-00-8D
Required: 1
BRACKET, CLAMP 2
$242.42
You save $42.78
In stock
Only 1 remaining
$19.46
You save $3.44
4
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-06012-00
$2.85
You save $0.50
5
Yamaha Motors
Swivel Bracket6EK-43311-10-8D
Required: 1
BRACKET, SWIVEL 1
$469.75
You save $82.90
6
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 3
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
$9.69
You save $1.71
In stock
Only 1 remaining
$25.71
You save $4.54
9
Yamaha Motors
Clamp Bracket Bolt64E-43131-30-00
Required: 1
BOLT, CLAMP BRACKET
$125.67
You save $22.18
In stock
5+ in stock
$25.12
You save $4.43
11
Yamaha Motors
Plate Washer90201-26M59-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$4.68
You save $0.83
12
Yamaha Motors
Self-Locking Nut90185-22007-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-22M11-00
In stock
5+ in stock
$20.36
You save $3.59
In stock
5+ in stock
$3.40
You save $0.60
14
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
15
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
16
Yamaha Motors
Tilt Stop Lever6EK-43181-00-00
Required: 1
LEVER, TILT STOP 1
$34.94
You save $6.16
17
Yamaha Motors
Tilt Stop Lever6EK-43185-00-00
Required: 1
LEVER, TILT STOP 2
$39.69
You save $7.01
In stock
5+ in stock
$4.72
You save $0.83
19
Yamaha Motors
Distance Collar6G5-43148-00-00
Required: 2
COLLAR, DISTANCE
In stock
5+ in stock
$8.03
You save $1.42
In stock
5+ in stock
$3.02
You save $0.53
In stock
5+ in stock
$7.73
You save $1.37
$5.31
You save $0.94
$5.09
You save $0.90
24
Yamaha Motors
Tension Spring90506-14M24-00
Required: 1
SPRING, TENSION
In stock
5+ in stock
$7.73
You save $1.37
$17.09
You save $3.02
26
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06510-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06510-00
In stock
Only 4 remaining
$0.68
You save $0.12
In stock
Only 5 remaining
$1.57
You save $0.28
28
Yamaha Motors
Upper Shock Mount Pin6EK-43126-00-00
Required: 1
PIN, UPPER SHOCK MOUNT
$28.69
You save $5.06
In stock
5+ in stock
$13.30
You save $2.35
In stock
Only 4 remaining
$4.72
You save $0.83
In stock
5+ in stock
$4.80
You save $0.85
32
Yamaha Motors
Lower Shock Mount Pin6EK-43818-00-00
Required: 1
PIN, LOWER SHOCK MOUNT
In stock
Only 1 remaining
$57.29
You save $10.11
$3.44
You save $0.61
34
Yamaha Motors
Plate Washer90201-10060-00
Required: 2
WASHER, PLATE
In stock
Only 3 remaining
$12.28
You save $2.17
35
Yamaha Motors
Bolt with Washer90119-10054-00
Required: 2
BOLT, WITH WASHER
$10.67
You save $1.88
In stock
5+ in stock
$19.76
You save $3.49
37
Yamaha Motors
Bolt with Washer90119-06276-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M81-00
In stock
Only 4 remaining
$5.23
You save $0.92
In stock
5+ in stock
$12.41
You save $2.19
$2.35
You save $0.41
40
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
41
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
42
Yamaha Motors
DEEP FLANGE BOLT95D95-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06010-00
$0.68
You save $0.12
43
Yamaha Motors
Bolt (L:130Mm)90101-12M05-00
Required: 2
BOLT (L:130MM)
$29.32
You save $5.18
43
Yamaha Motors
BOLT (L:150MM)90101-12066-00
Required: 2
BOLT (L:150MM)
Supersedes: 90101-12047-00
$29.32
You save $5.18
44
Yamaha Motors
Plate Washer90201-13M01-00
Required: 8
WASHER, PLATE
$1.91
You save $0.34
45
Yamaha Motors
Plate Washer90201-12426-00
Required: 4
WASHER, PLATE
In stock
Only 1 remaining
$1.91
You save $0.34
$8.71
You save $1.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
