2014 Outboard 115hp - F115XB FUEL INJECTION PUMP 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

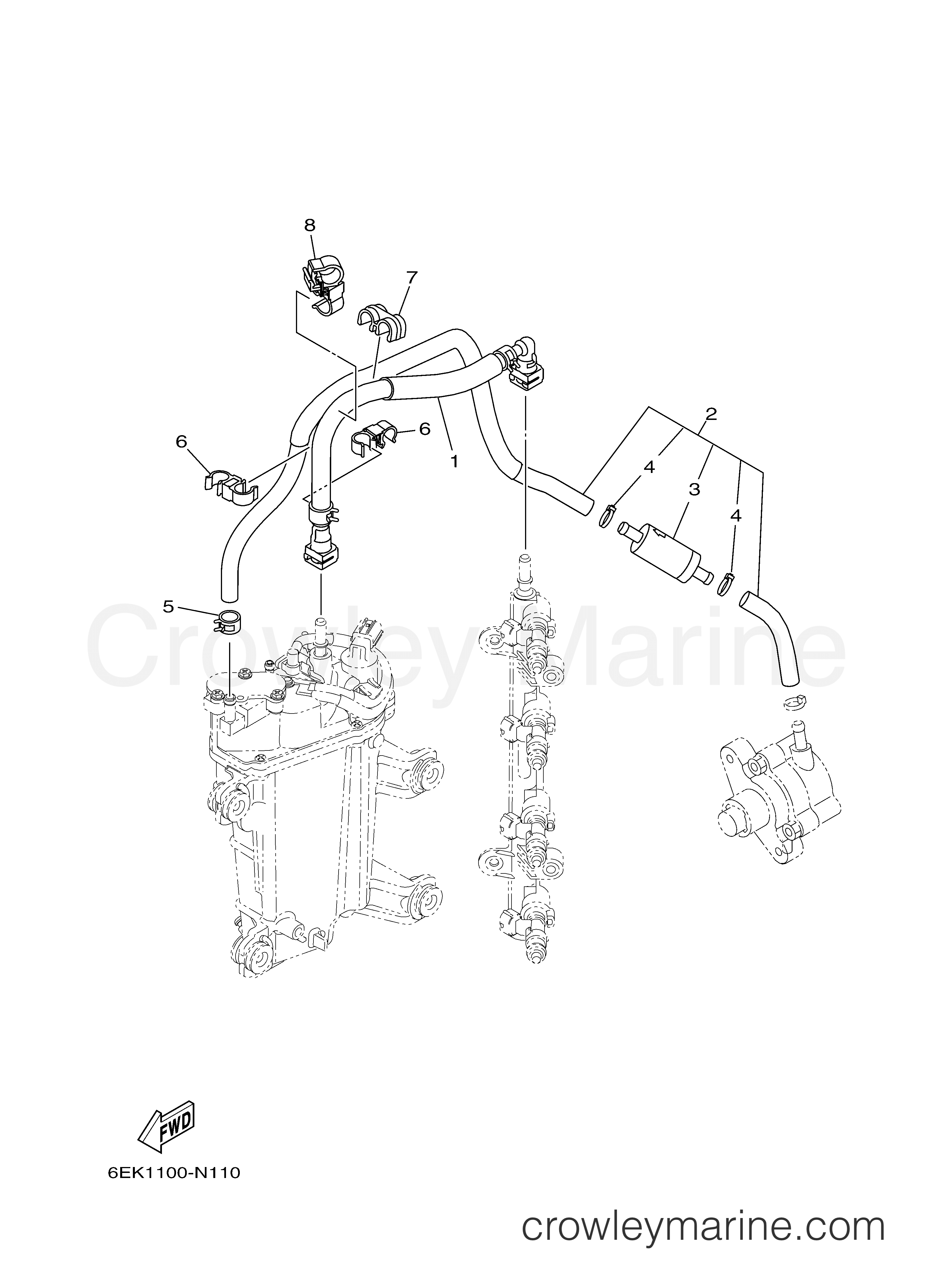

Yamaha Motors F115XB - FUEL INJECTION PUMP 2

Change View:

Yamaha Motors

Fuel Hose Assembly6EK-2450B-01-00

Required: 1

FUEL HOSE ASSY

Supersedes: 6EK-2450B-00-00

~~$86.20~~

$73.27

You save $12.93

More details

Yamaha Motors

Fuel Pipe Assembly6EK-24330-01-00

Required: 1

FUEL PIPE ASSY

Supersedes: 6EK-24330-00-00

~~$87.35~~

$74.25

You save $13.10

More details

Yamaha Motors

Strainer6C5-24251-01-00

Required: 1

.STRAINER 1

Supersedes: 6C5-24251-00-00

In stock

5+ in stock

~~$28.80~~

$24.48

You save $4.32

.CLAMP

Supersedes: 90465-11M10-00

In stock

5+ in stock

~~$2.70~~

$2.29

You save $0.41

CLIP

~~$3.00~~

$2.55

You save $0.45

CLAMP

~~$4.30~~

$3.65

You save $0.65

CLAMP

In stock

Only 1 remaining

~~$3.76~~

$3.20

You save $0.56

CLAMP

~~$3.35~~

$2.85

You save $0.50

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
