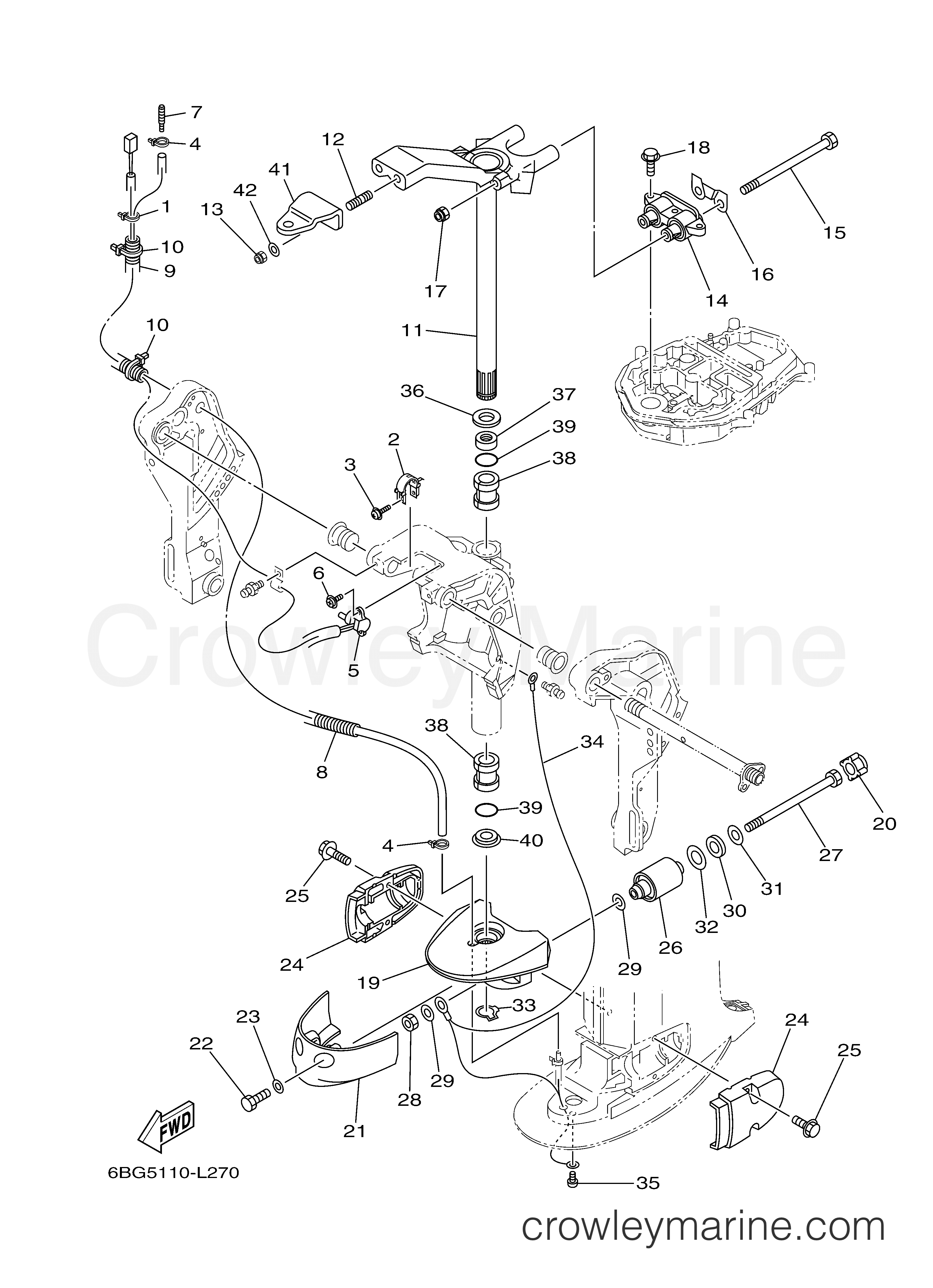

2012 Outboard 40hp - F40JEA BRACKET 3 diagram
11
Yamaha Motors
Steering Bracket Assembly6BG-42510-00-8D
Required: 1
STEERING BRACKET ASSY
$356.79
You save $62.96
12
Yamaha Motors
Stud Bolt90116-10063-00
Required: 2
BOLT, STUD
Supersedes: 90116-10M28-00
In stock
5+ in stock
$3.44
You save $0.61
13
Yamaha Motors
Self-Locking Nut90185-10027-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-10051-00
In stock
5+ in stock
$2.04
You save $0.36
14
Yamaha Motors
Upper Mount Damper67C-44514-00-00
Required: 1
MOUNT DAMPER, UPPER SIDE
Supersedes: 67C-44514-00-94
$98.09
You save $17.31
15
Yamaha Motors
Bolt90109-08229-00
Required: 2
BOLT
Supersedes: 90101-08M15-00
In stock
Only 4 remaining
$16.06
You save $2.84
$29.71
You save $5.24
17
Yamaha Motors
Self-Locking Nut90185-08018-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-08045-00
In stock
5+ in stock
$3.91
You save $0.69
18
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08530-00
Required: 3
BOLT, WITH WASHER
Supersedes: 97575-08530-00
$1.61
You save $0.28
19
Yamaha Motors
Lower Mount Rubber Housing67C-44551-01-8D
Required: 1
HOUSING, LOWER MOUNT RUBBER 1
$99.45
You save $17.55
20
Yamaha Motors
DAMPER, LOWER MOUNT RUBBER69W-44575-01-00
Required: 2
DAMPER, LOWER MOUNT RUBBER
Supersedes: 69W-44575-00-00
$7.31
You save $1.29
24
Yamaha Motors
Lower Mount Rubber Housing6C5-44552-00-8D
Required: 2
HOUSING, LOWER MOUNT RUBBER 2
$58.05
You save $10.25
25
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08530-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-08131-00
$1.61
You save $0.28
26
Yamaha Motors
Lower Side Mount Damper67C-44555-21-00
Required: 2
MOUNT DAMPER, LOWER SIDE
$46.96
You save $8.29
$39.06
You save $6.89
$7.73
You save $1.37
29
Yamaha Motors
Plate Washer90201-12M16-00
Required: 4
WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
30
Yamaha Motors
Plate Washer90202-21100-00
Required: 2
WASHER, PLATE
$7.27
You save $1.28
31
Yamaha Motors
Plate Washer90201-13M19-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$6.63
You save $1.17
32
Yamaha Motors
Plate Washer90201-22M05-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$3.82
You save $0.68
In stock
Only 5 remaining
$12.20
You save $2.15
$35.79
You save $6.31
35
Yamaha Motors
Pan Head Screw97885-06008-00
Required: 1
SCREW, PAN HEAD
$0.98
You save $0.17
36
Yamaha Motors
Plate Washer90201-30M00-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.08
You save $1.07
$6.54
You save $1.16
In stock
Only 1 remaining
$13.30
You save $2.35
In stock
Only 1 remaining
$5.44
You save $0.96
In stock
Only 1 remaining
$7.31
You save $1.29
41
Yamaha Motors
Steering Hook65W-48511-01-00
Required: 1
HOOK, STEERING
$41.82
You save $7.38
42
Yamaha Motors
Plate Washer90201-10049-00
Required: 2
.WASHER, PLATE
Supersedes: 90201-10120-00
In stock
5+ in stock
$1.61
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
