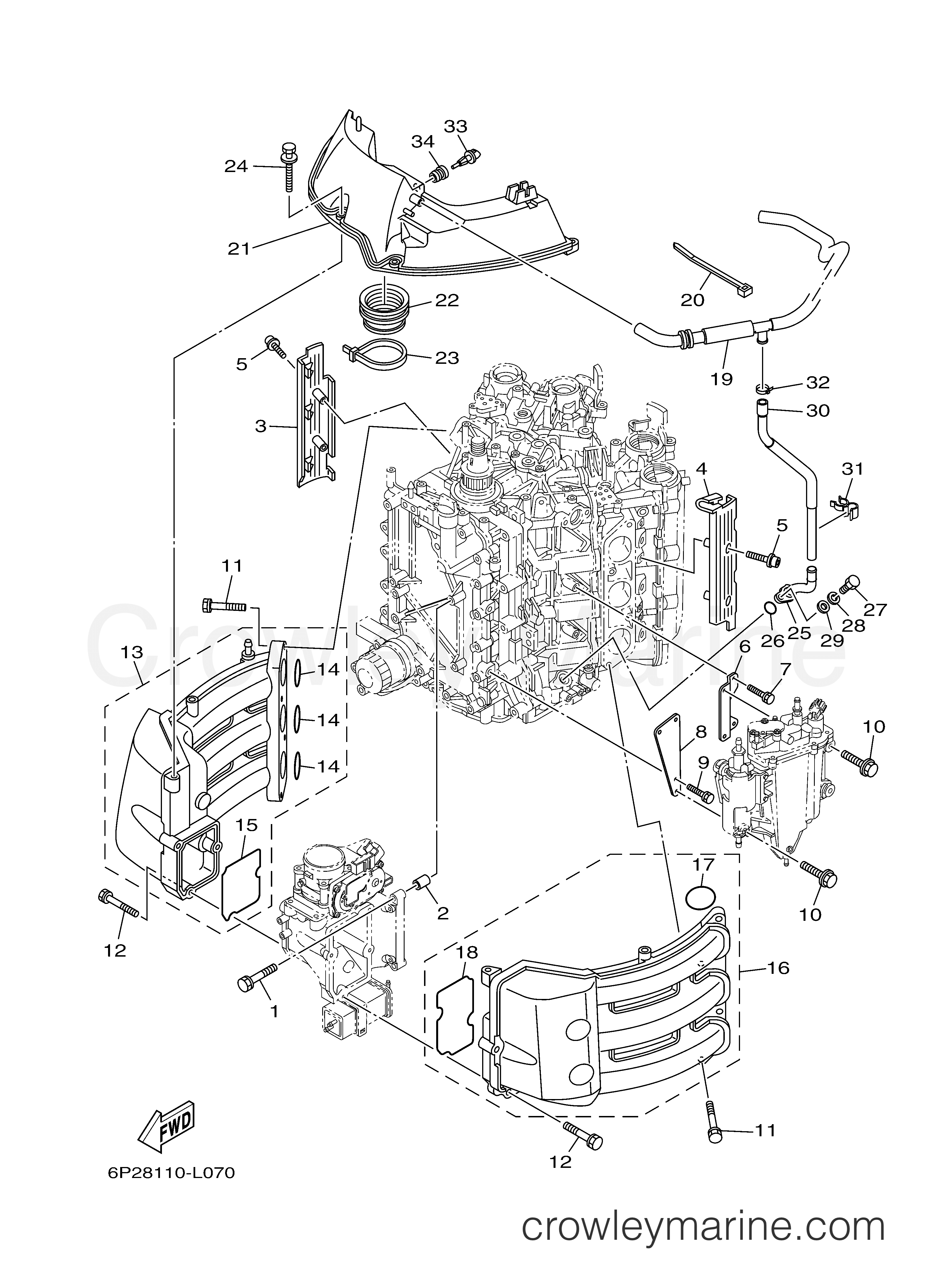

2012 Outboard 250hp - F250UA INTAKE 1 diagram
1
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08540-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97575-08540-00
In stock
Only 5 remaining
$4.55
You save $0.80
In stock
Only 1 remaining
$2.25
You save $0.40
3
Yamaha Motors
Manifold Cover6P2-13564-00-00
Required: 1
COVER, MANIFOLD
$28.22
You save $4.98
4
Yamaha Motors
Manifold Cover6P2-13594-00-00
Required: 1
COVER, MANIFOLD 2
$27.92
You save $4.93
5
Yamaha Motors
Hexagon Socket Head Bolt90110-06038-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
In stock
Only 1 remaining
$3.74
You save $0.66
$25.46
You save $4.49
7
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-06516-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97575-06516-00
$0.85
You save $0.15
8
Yamaha Motors
Separator Bracket6P2-24419-00-00
Required: 1
BRKT., SEPARATOR
$23.46
You save $4.14
9
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-06516-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97575-06516-00
$0.85
You save $0.15
10
Yamaha Motors
BOLT, WITH WASHER90119-06298-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06M24-00
$4.00
You save $0.71
11
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08540-00
Required: 8
BOLT, WITH WASHER
Supersedes: 97575-08540-00
In stock
Only 5 remaining
$4.55
You save $0.80
12
Yamaha Motors
Bolt with Washer90119-06MA6-00
Required: 7
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.91
You save $0.69
13
Yamaha Motors
Manifold6P2-13641-00-00
Required: 1
MANIFOLD, INTAKE 1
$280.71
You save $49.54
14
Yamaha Motors
Manifold Gasket6P2-13645-00-00
Required: 3
.GASKET, MANIFOLD 1
In stock
5+ in stock
$24.99
You save $4.41
15
Yamaha Motors
Manifold Gasket6P2-13646-00-00
Required: 1
.GASKET, MANIFOLD 2
$58.73
You save $10.37
$388.92
You save $68.63
17
Yamaha Motors
Manifold Gasket6P2-13645-00-00
Required: 3
.GASKET, MANIFOLD 1
In stock
5+ in stock
$24.99
You save $4.41
18
Yamaha Motors
Manifold Gasket6P2-13647-00-00
Required: 1
.GASKET, MANIFOLD 3
$58.73
You save $10.37
19
Yamaha Motors
Breather Pipe6P2-15373-02-00
Required: 1
PIPE, BREATHER
Supersedes: 6P2-15373-01-00
$98.09
You save $17.31
In stock
Only 5 remaining
$1.57
You save $0.28
21
Yamaha Motors
Intake Silencer Assembly6P2-14440-00-00
Required: 1
SILENCER ASSY, INTAKE
$174.93
You save $30.87
22
Yamaha Motors
Silencer Pipe6P2-1441J-01-00
Required: 1
PIPE, SILENCER
Supersedes: 6P2-1441J-00-00
$15.94
You save $2.81
$8.20
You save $1.45
24
Yamaha Motors
Bolt with Washer90119-06311-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06M35-00
In stock
Only 3 remaining
$1.69
You save $0.30
In stock
Only 1 remaining
$57.50
You save $10.15
In stock
5+ in stock
$6.93
You save $1.22
27
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
28
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$38.97
You save $6.88
$5.70
You save $1.00
32
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
33
Yamaha Motors
Air Temperature Sensor63P-85886-00-00
Required: 1
SENSOR, AIR TEMPERATURE
$39.06
You save $6.89
$6.29
You save $1.11
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
