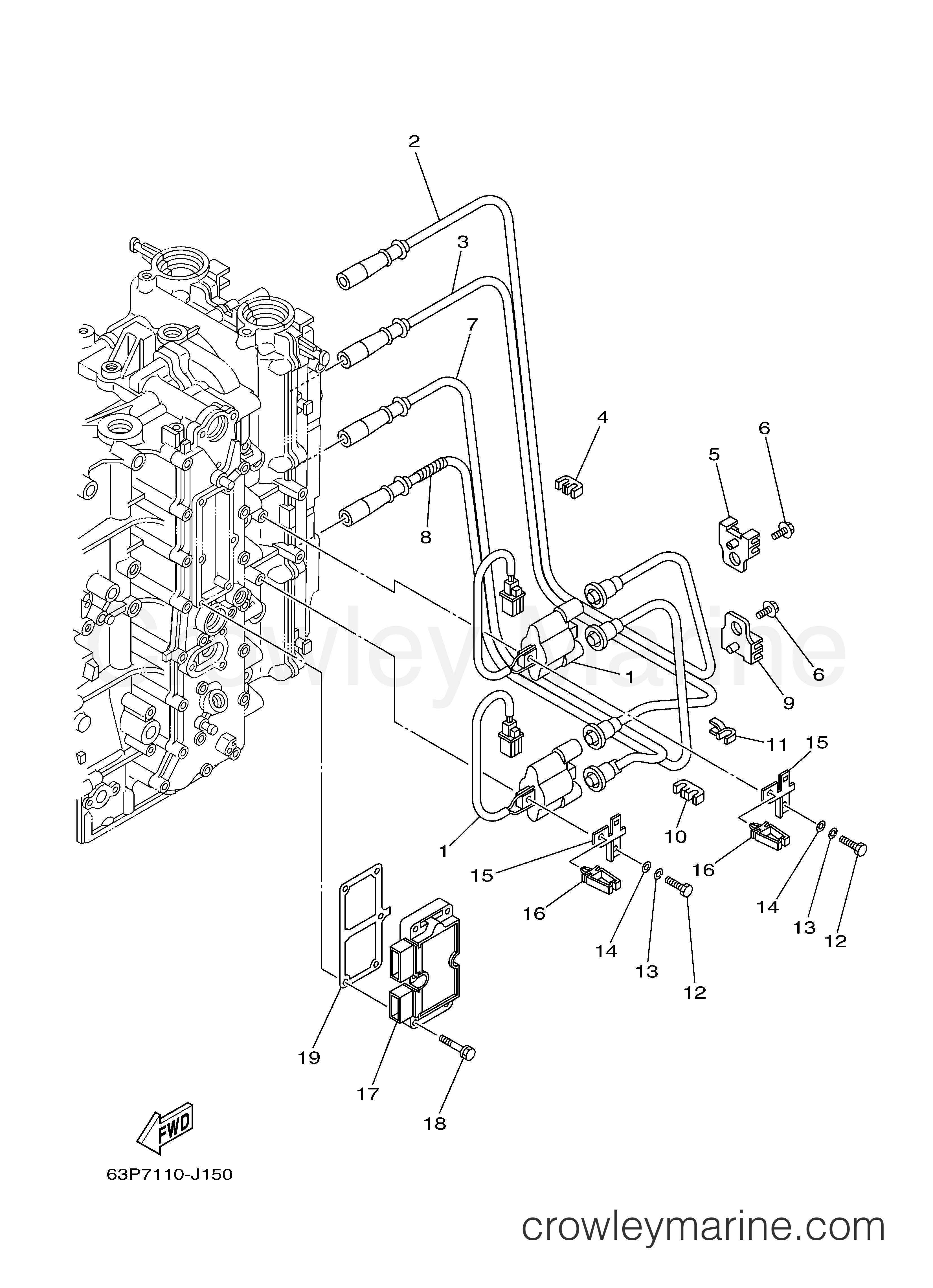

2011 Outboard 150hp - LF150TXR ELECTRICAL 1 diagram
1
Yamaha Motors
Ignition Coil Assembly63P-82310-01-00
Required: 2
IGNITION COIL ASSY
In stock
5+ in stock
$140.95
You save $35.20
2
Yamaha Motors
CORD, HIGH TENSION 163P-W823A-00-00
Required: 1
CORD, HIGH TENSION 1
Supersedes: 63P-82341-00-00
$176.95
You save $30.95
3
Yamaha Motors
CORD, HIGH TENSION 263P-W823B-00-00
Required: 1
CORD, HIGH TENSION 2
Supersedes: 63P-82342-00-00
$176.95
You save $30.95
-50%
In stock
Only 1 remaining
$1.60
You save $1.60
5
Yamaha Motors
Cord Clamp67F-82362-00-00
Required: 1
CLAMP, CORD 2
$4.68
You save $0.83
6
Yamaha Motors
Bolt with Washer90119-06134-00
Required: 2
BOLT, WITH WASHER
$4.29
You save $0.76
7
Yamaha Motors
CORD, HIGH TENSION 363P-W823C-00-00
Required: 1
CORD, HIGH TENSION 3
Supersedes: 63P-82343-00-00
$176.95
You save $30.95
8
Yamaha Motors
CORD, HIGH TENSION 463P-W823D-00-00
Required: 1
CORD, HIGH TENSION 4
Supersedes: 63P-82344-01-00
$176.95
You save $30.95
9
Yamaha Motors
Cord Clamp67F-82362-00-00
Required: 1
CLAMP, CORD 2
$4.68
You save $0.83
-50%
In stock
Only 1 remaining
$1.60
You save $1.60
$4.68
You save $0.83
$2.85
You save $0.50
13
Yamaha Motors
Spring Washer92995-06100-00
Required: 4
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
-50%
In stock
Only 4 remaining
$2.30
You save $2.30
-50%
In stock
Only 4 remaining
$1.25
You save $1.25
17
Yamaha Motors
Rectifier and Regulator63P-81960-02-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 63P-81960-01-00
$280.95
You save $49.60
18
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 6
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.52
You save $0.88
19
Yamaha Motors
Rectifier Fitting Plate63P-81975-00-00
Required: 1
PLATE, RECTIFIER FITTING
$6.32
You save $1.58
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
