All diagrams for this model

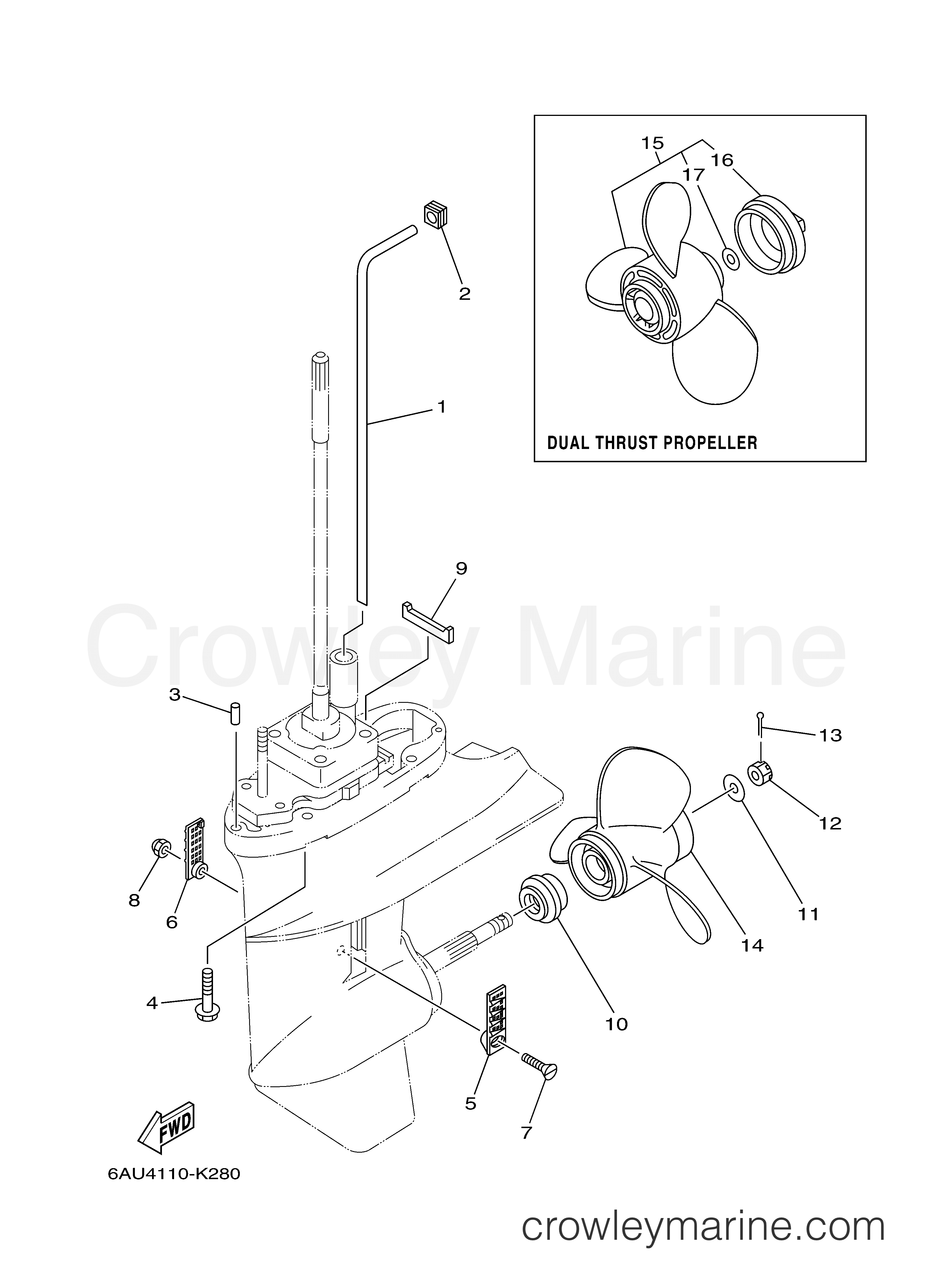

2011 Outboard 9.9hp - F9.9SMHA LOWER CASING DRIVE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F9.9SMHA - LOWER CASING DRIVE 2
Change View:
Water Tube
1
Yamaha Motors
Water Tube68T-44361-00-00
Required: 1
TUBE, WATER 1
Cross Ship
Leaves in 2-5 days
$16.25
$13.81
You save $2.44
More details
BOLT, HEXAGON W/W DE
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08535-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97575-08535-00
Cross Ship
Leaves in 2-5 days
$3.75
$3.00
You save $0.75
More details
Water Inlet Cover 2
6
Yamaha Motors
Water Inlet Cover 26G1-45215-00-00
Required: 1
COVER, WATER INLET 2
Cross Ship
Leaves in 2-5 days
$8.15
$6.52
You save $1.63
More details
Aluminum Prop - 3 Blade 8.5x8.5RH Aluminum
14
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x8.5RH Aluminum6G1-45941-00-00
Required: 1
PROPELLER (3X8-1/2"X8-1/2"-N)
Cross Ship
Leaves in 2-5 days
$157.00
$125.95
You save $31.05
More details
Aluminum Prop - 3 Blade 8.5x9.25RH Aluminum
14
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x9.25RH Aluminum6G1-45954-00-00
Required: 1
PROPELLER (3X8-1/2"X9-1/4"-N)
Cross Ship
Leaves in 2-5 days
$157.00
$132.95
You save $24.05
More details
Aluminum Prop - 3 Blade 8.5x8RH Aluminum
14
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x8RH Aluminum6G1-45952-00-00
Required: 1
PROPELLER (3X8-1/2"X8"-N)
Cross Ship
Leaves in 2-5 days
$157.00
$133.45
You save $23.55
More details
Aluminum Prop - 3 Blade 8.5x6.5RH Aluminum
14
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x6.5RH Aluminum6G1-45947-00-00
Required: 1
PROPELLER (3X8-1/2"X6-1/2"-N)
Cross Ship
Leaves in 2-5 days
$157.00
$132.95
You save $24.05
More details
Dual Thrust Prop - 3 Blade 9x5RH Aluminum
15
Yamaha Motors
Dual Thrust Prop - 3 Blade 9x5RH Aluminum6G1-W4592-00-00
Required: 1
PROPELLER (3X9"X5"-N)
Cross Ship
Leaves in 2-5 days
$157.00
$133.45
You save $23.55
More details
Dual Thrust Prop - 3 Blade 9x7RH Aluminum
15
Yamaha Motors
Dual Thrust Prop - 3 Blade 9x7RH Aluminum6G1-W4591-01-00
Required: 1
PROPELLER (3X9"X7"-N)
Cross Ship
Leaves in 2-5 days
$157.00
$132.95
You save $24.05
More details
Propeller Nut
16
Yamaha Motors
Propeller Nut6G1-45616-01-00
Required: 1
.NUT, PROPELLER
Cross Ship
Leaves in 2-5 days
$34.95
$29.71
You save $5.24
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
