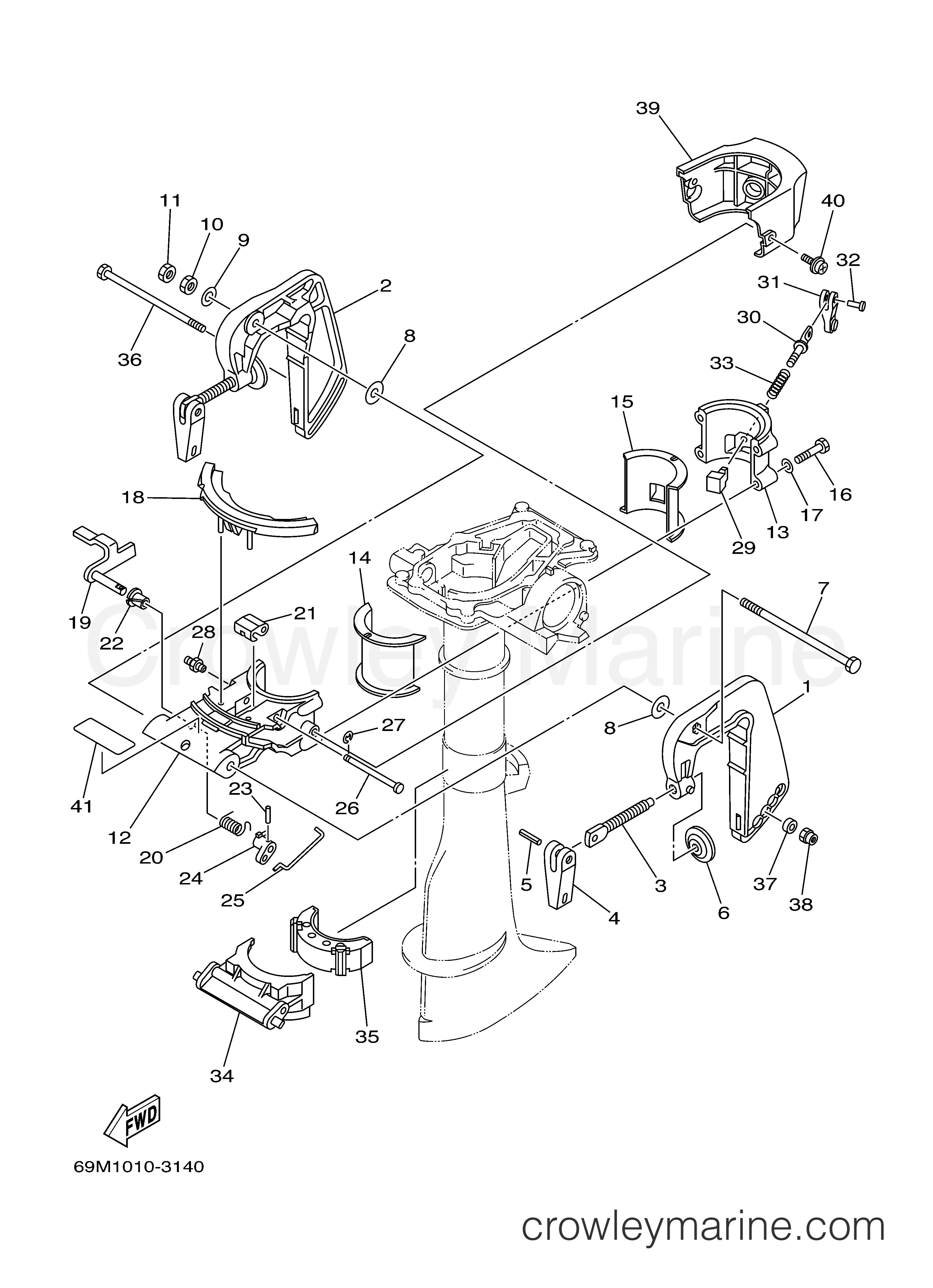

2011 Outboard 2hp - F2.5SMHA BRACKET diagram
1
Yamaha Motors
Clamp Bracket69M-G3111-00-4D
Required: 1
BRACKET, CLAMP 1
In stock
Only 1 remaining
$86.70
You save $15.30
2
Yamaha Motors
Clamp Bracket69M-G3112-00-4D
Required: 1
BRACKET, CLAMP 2
$86.70
You save $15.30
3
Yamaha Motors
Transom Clamp Screw6E0-43116-01-00
Required: 2
SCREW, TRANSOM CLAMP
In stock
Only 1 remaining
$28.65
You save $5.05
4
Yamaha Motors
Transom Clamp Handle69M-G3118-00-00
Required: 2
HANDLE, TRANSOM CLAMP
$10.67
You save $1.88
In stock
5+ in stock
$5.06
You save $0.89
6
Yamaha Motors
Transom Clamp Pad648-43114-01-00
Required: 2
PAD, TRANSOM CLAMP
Supersedes: 620-43114-00-00
In stock
Only 2 remaining
$12.07
You save $2.13
$12.32
You save $2.17
8
Yamaha Motors
Plate Washer90202-08022-00
Required: 2
WASHER, PLATE
$3.82
You save $0.68
9
Yamaha Motors
Plain Washer92990-08200-00
Required: 1
WASHER, PLAIN
In stock
Only 2 remaining
$2.54
You save $0.45
In stock
Only 1 remaining
$7.22
You save $1.27
In stock
Only 2 remaining
$3.02
You save $0.53
12
Yamaha Motors
Swivel Bracket69M-G3311-01-4D
Required: 1
BRACKET, SWIVEL 1
$105.31
You save $18.59
13
Yamaha Motors
Swivel Bracket69M-G3312-00-4D
Required: 1
BRACKET, SWIVEL 2
$92.14
You save $16.26
14
Yamaha Motors
Pivot Shaft Bushing69M-G2537-00-00
Required: 1
BUSHING, PIVOT SHAFT
In stock
Only 1 remaining
$14.58
You save $2.57
15
Yamaha Motors
Pivot Shaft Bushing69M-G2538-00-00
Required: 1
BUSHING, PIVOT SHAFT
In stock
Only 1 remaining
$14.58
You save $2.57
16
Yamaha Motors
Bolt97080-06030-00
Required: 4
BOLT
Supersedes: 97075-06030-00
In stock
5+ in stock
$3.49
You save $0.62
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 1 remaining
$13.30
You save $2.35
19
Yamaha Motors
Tilt Stop Lever Assembly69M-43180-00-00
Required: 1
TILT STOP LEVER ASSY
$48.41
You save $8.54
20
Yamaha Motors
Spring6EG-G3188-00-00
Required: 1
SPRING
Supersedes: 69M-G3188-00-00
$7.73
You save $1.37
In stock
Only 1 remaining
$9.82
You save $1.73
In stock
5+ in stock
$4.72
You save $0.83
$5.44
You save $0.96
24
Yamaha Motors
Tilt Stop Lever, 26EG-G3185-00-00
Required: 1
LEVER, TILT STOP 2
Supersedes: 69M-G3185-00-00
$6.08
You save $1.07
25
Yamaha Motors
Tilt Lock Rod6EG-G3164-00-00
Required: 1
ROD, TILT LOCK
Supersedes: 69M-G3164-00-00
In stock
Only 1 remaining
$5.91
You save $1.04
26
Yamaha Motors
PIN6EG-G3166-00-00
Required: 1
PIN
Supersedes: 69M-G3166-00-00
In stock
Only 1 remaining
$4.17
You save $0.74
In stock
Only 3 remaining
$1.69
You save $0.30
28
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
29
Yamaha Motors
PLATE, FRICTION6EG-42528-00-00
Required: 1
PLATE, FRICTION
Supersedes: 69M-42528-00-00
In stock
Only 1 remaining
$14.66
You save $2.59
30
Yamaha Motors
Friction Piece Screw69M-42529-00-00
Required: 1
SCREW, FRICTION PIECE
$14.66
You save $2.59
31
Yamaha Motors
Steering Lock Knob6EE-G2561-00-00
Required: 1
KNOB, STEERING LOCK
Supersedes: 68D-G2561-01-00
$5.99
You save $1.06
$3.74
You save $0.66
33
Yamaha Motors
Compression Spring90501-12803-00
Required: 1
SPRING, COMPRESSION
$6.63
You save $1.17
34
Yamaha Motors
Thrust Receiver69M-G3351-00-00
Required: 1
RECEIVER, THRUST
In stock
Only 1 remaining
$10.84
You save $1.91
35
Yamaha Motors
Lower Front Mount Damper69M-44557-00-00
Required: 1
MOUNT DAMPER, LOWER FRONT
In stock
Only 1 remaining
$66.43
You save $11.72
In stock
Only 2 remaining
$11.69
You save $2.06
37
Yamaha Motors
Plate Washer90201-06040-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$2.55
You save $0.45
In stock
5+ in stock
$6.54
You save $1.16
$11.05
You save $1.95
40
Yamaha Motors
Screw With Washer90159-06M11-00
Required: 2
SCREW, WITH WASHER
In stock
Only 4 remaining
$2.72
You save $0.48
41
Yamaha Motors
Tilt Indicator6EG-G3691-00-00
Required: 1
INDICATOR, TILT
Supersedes: 69M-G3691-00-00
In stock
Only 1 remaining
$1.91
You save $0.34
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
