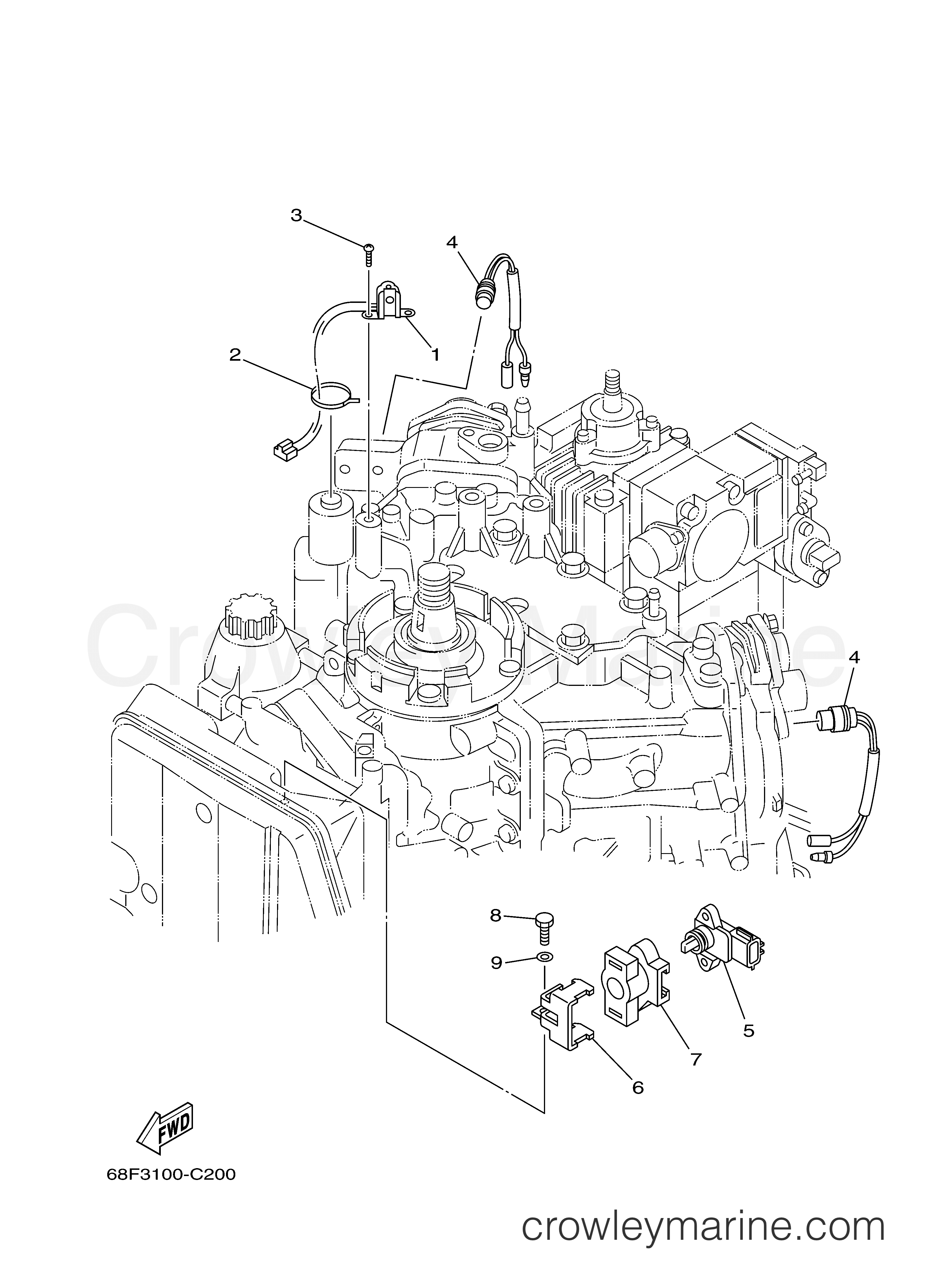

2010 Outboard 200hp - Z200TXR ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Crank Position Sender61A-85895-00-00

Required: 1

CRANK POSITION SENDER

In stock

Only 5 remaining

~~$121.50~~

$103.27

You save $18.23

CLAMP

In stock

Only 5 remaining

~~$1.85~~

$1.57

You save $0.28

More details

Yamaha Motors

Pan Head Screw97885-05012-00

Required: 2

SCREW, PAN HEAD

~~$3.05~~

$2.59

You save $0.46

More details

Yamaha Motors

Thermo Switch Assembly688-82560-10-00

Required: 2

THERMO SWITCH ASSY

In stock

5+ in stock

~~$48.85~~

$41.52

You save $7.33

More details

Yamaha Motors

Sensor Assembly68F-83688-00-00

Required: 1

SENSOR ASSY

~~$270.25~~

$229.71

You save $40.54

More details

Yamaha Motors

Setting Stay68F-8431R-10-00

Required: 1

STAY, SETTING

~~$15.55~~

$13.22

You save $2.33

More details

Yamaha Motors

Grommet68F-84352-00-00

Required: 1

GROMMET

~~$14.20~~

$12.07

You save $2.13

More details

Yamaha Motors

BOLT, HEXAGON DEEP RECESS97D95-06016-00

Required: 1

BOLT

Supersedes: 97095-06016-00

~~$2.76~~

$2.35

You save $0.41

More details

Yamaha Motors

Plate Washer92990-06600-00

Required: 1

WASHER

Supersedes: 92995-06600-00

In stock

5+ in stock

~~$2.85~~

$2.42

You save $0.43

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

2010 Outboard 200hp - Z200TXR ELECTRICAL 4 diagram
