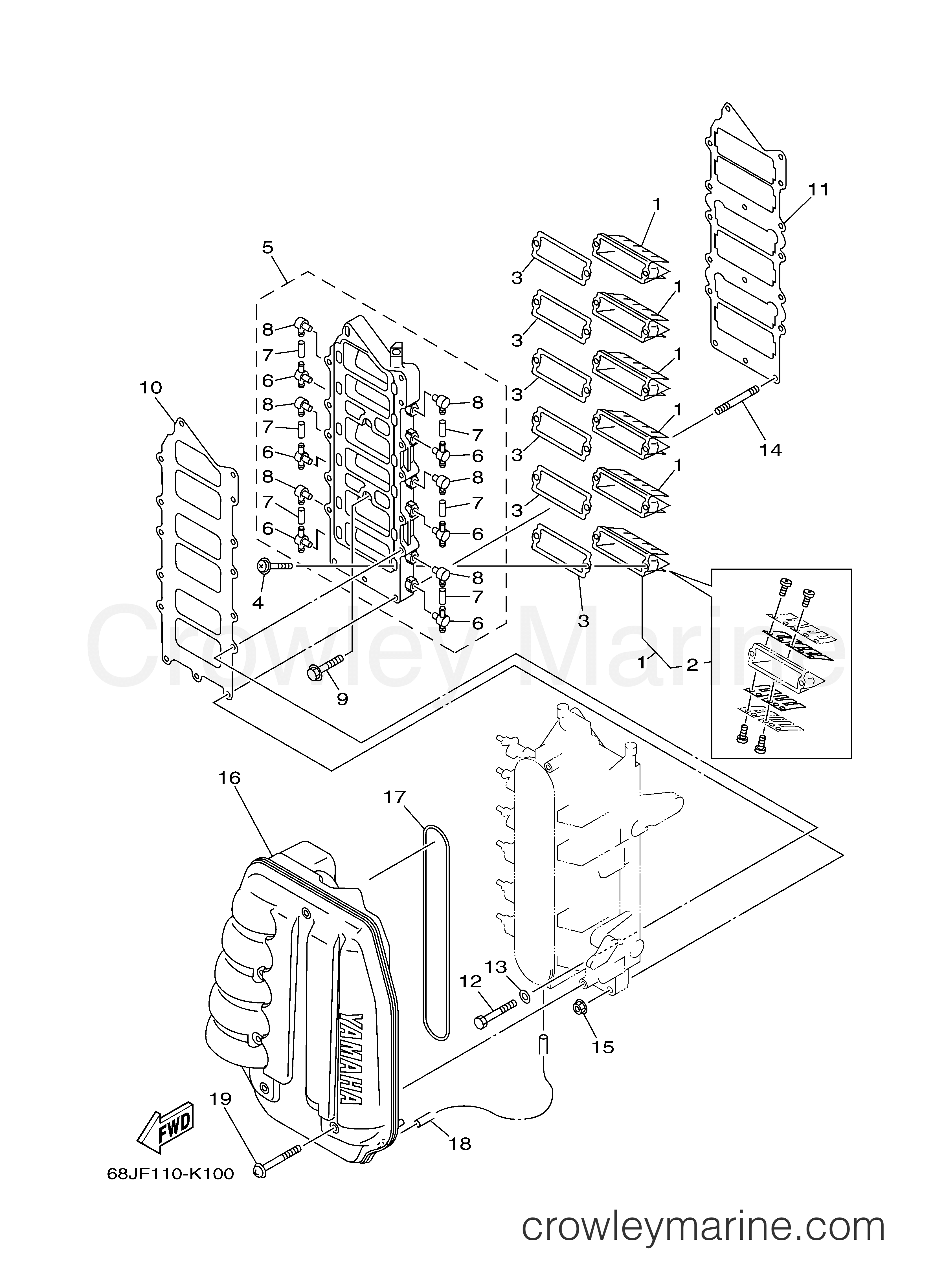

2010 Outboard 200hp - LZ200TXR INTAKE diagram
1
Yamaha Motors
Reed Valve Assembly65L-13610-01-00
Required: 6
REED VALVE ASSY
$212.03
You save $37.42
$76.16
You save $13.44
3
Yamaha Motors
Valve Seat Gasket61A-13621-A0-00
Required: 6
.GASKET, VALVE SEAT
$4.80
You save $0.85
4
Yamaha Motors
Screw With Washer97980-05216-00
Required: 12
SCREW, WITH WASHER
$4.42
You save $0.78
5
Yamaha Motors
Reed Valve Plate68F-13624-00-1S
Required: 1
PLATE,REED VALVE
$344.46
You save $60.79
6
Yamaha Motors
Hose Nipple6F6-11372-01-00
Required: 6
.NIPPLE, HOSE
In stock
Only 4 remaining
$7.69
You save $1.36
7
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 6
.HOSE (L34)
Supersedes: 90445-07M03-00
In stock
5+ in stock
$6.29
You save $1.11
8
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 6
.CHECK VALVE ASSY
In stock
Only 4 remaining
$14.24
You save $2.51
$3.02
You save $0.53
10
Yamaha Motors
Manifold Gasket65L-13646-00-00
Required: 1
.GASKET, MANIFOLD 2
$46.79
You save $8.26
11
Yamaha Motors
Manifold Gasket65L-13645-00-00
Required: 1
.GASKET, MANIFOLD 1
$42.37
You save $7.48
In stock
Only 5 remaining
$2.89
You save $0.51
13
Yamaha Motors
Plate Washer92990-06600-00
Required: 11
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$12.20
You save $2.15
In stock
Only 5 remaining
$4.08
You save $0.72
16
Yamaha Motors
Intake Silencer Assembly60V-14440-00-00
Required: 1
SILENCER ASSY, INTAKE
$196.31
You save $34.64
17
Yamaha Motors
SEAL60V-14476-01-00
Required: 1
.SEAL
Supersedes: 60V-14476-00-00
$45.05
You save $7.95
18
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L250)
Supersedes: 90445-07M44-00
In stock
Only 2 remaining
$6.29
You save $1.11
19
Yamaha Motors
Screw With Washer90159-06M16-00
Required: 6
SCREW, WITH WASHER
In stock
5+ in stock
$2.59
You save $0.46
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
